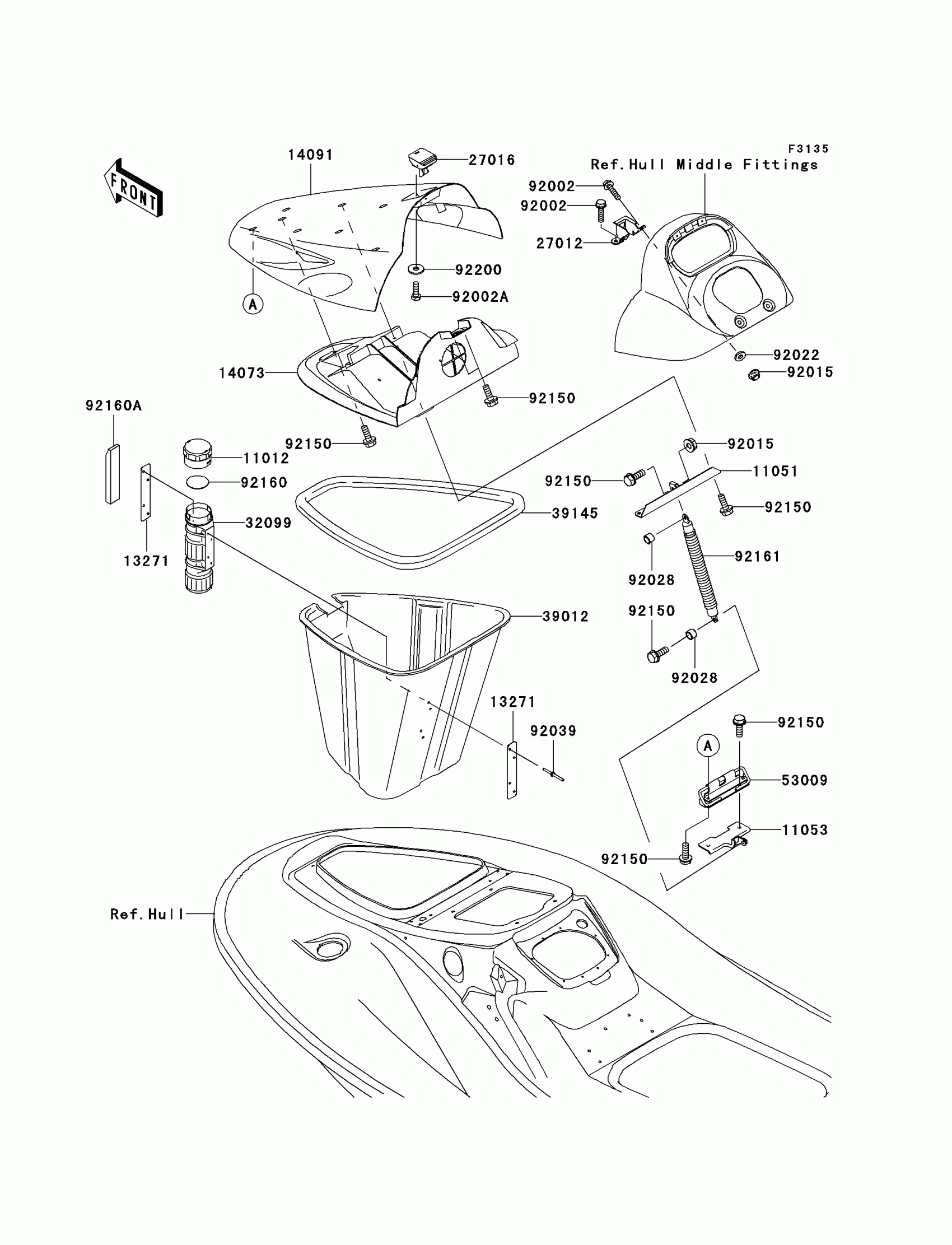

Kawasaki 1200 STX-R Hull Front Fittings(C1) Diagram

Description

Price

11012

CAP,FIRE EXTINGUISHER

11012-3766

$7.83

11051

BRACKET

11051-3766

$31.14

11053

BRACKET

11053-3752

$48.60

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.07

14073

DUCT,FR

14073-3777

$147.47

14091

COVER,HATCH,C.L.GREEN

14091-3734-367

$143.39

27012

HOOK

27012-3830

$24.17

27016

LOCK-ASSY,HATCH COVER

27016-3756

$127.89

32099

CASE,FIRE EXTINGUISHER

32099-3769

$14.60

39012

CASE-STORAGE,FR

39012-3726

Unavailable

39145

TRIM-SEAL,L=1380

39145-3773

$79.19

53009

HINGE,HATCH COVER

53009-3725

$120.15

92002

BOLT,6X25

92002-3714

$3.81

92002A

BOLT,5X16

92002-3747

$3.97

92015

NUT,6MM

92015-3767

$3.57

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92028

BUSHING

92028-3765

$2.28

92039

RIVET

92039-3783

$6.15

92150

BOLT,6X18

92150-3729

$3.57

92160

DAMPER

92160-3814

$7.76

92160A

DAMPER

92160-3821

$8.63

92161

DAMPER,HATCH

92161-3753

Unavailable

92200

WASHER,5.9X16X1.5

92200-3714

$1.55
