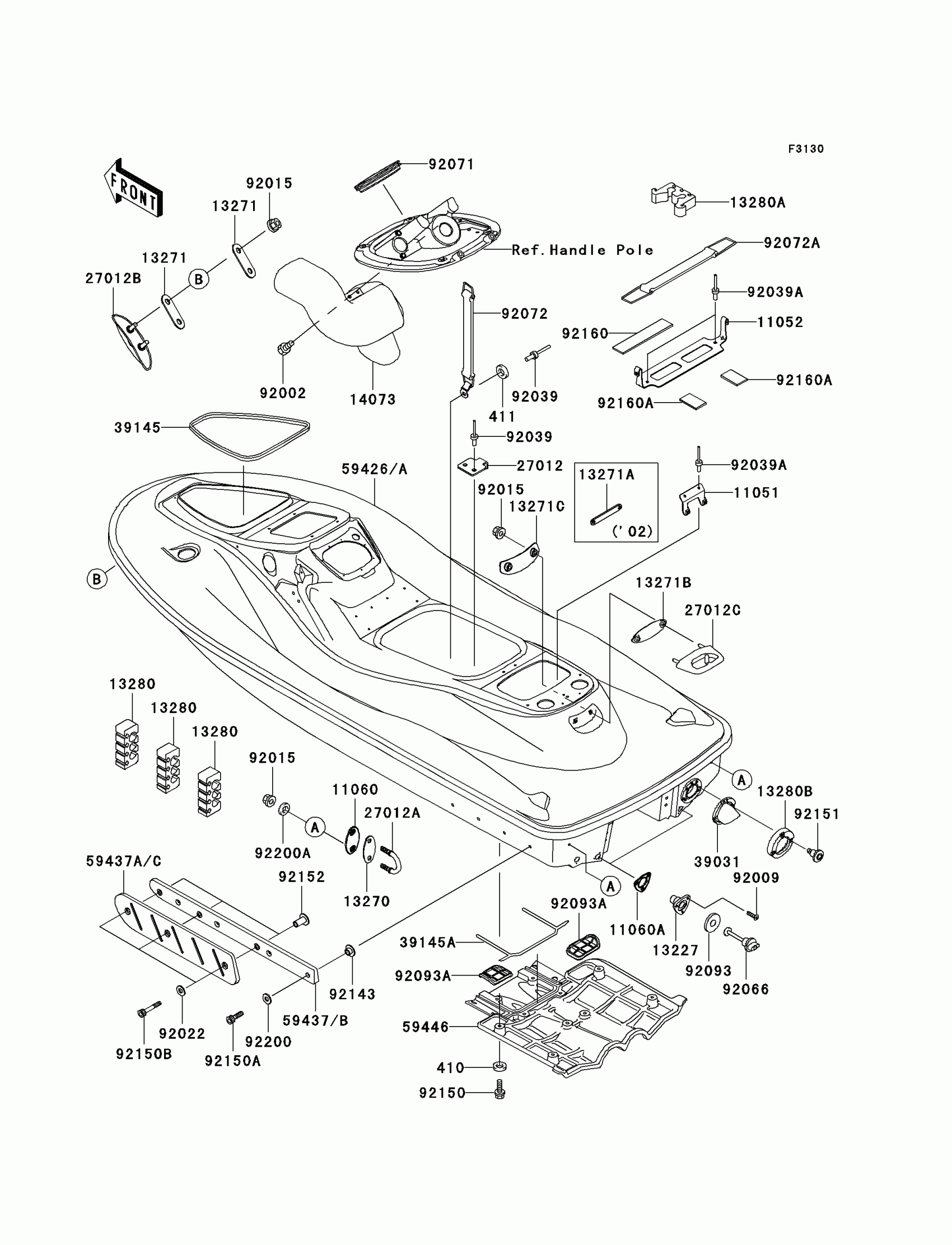

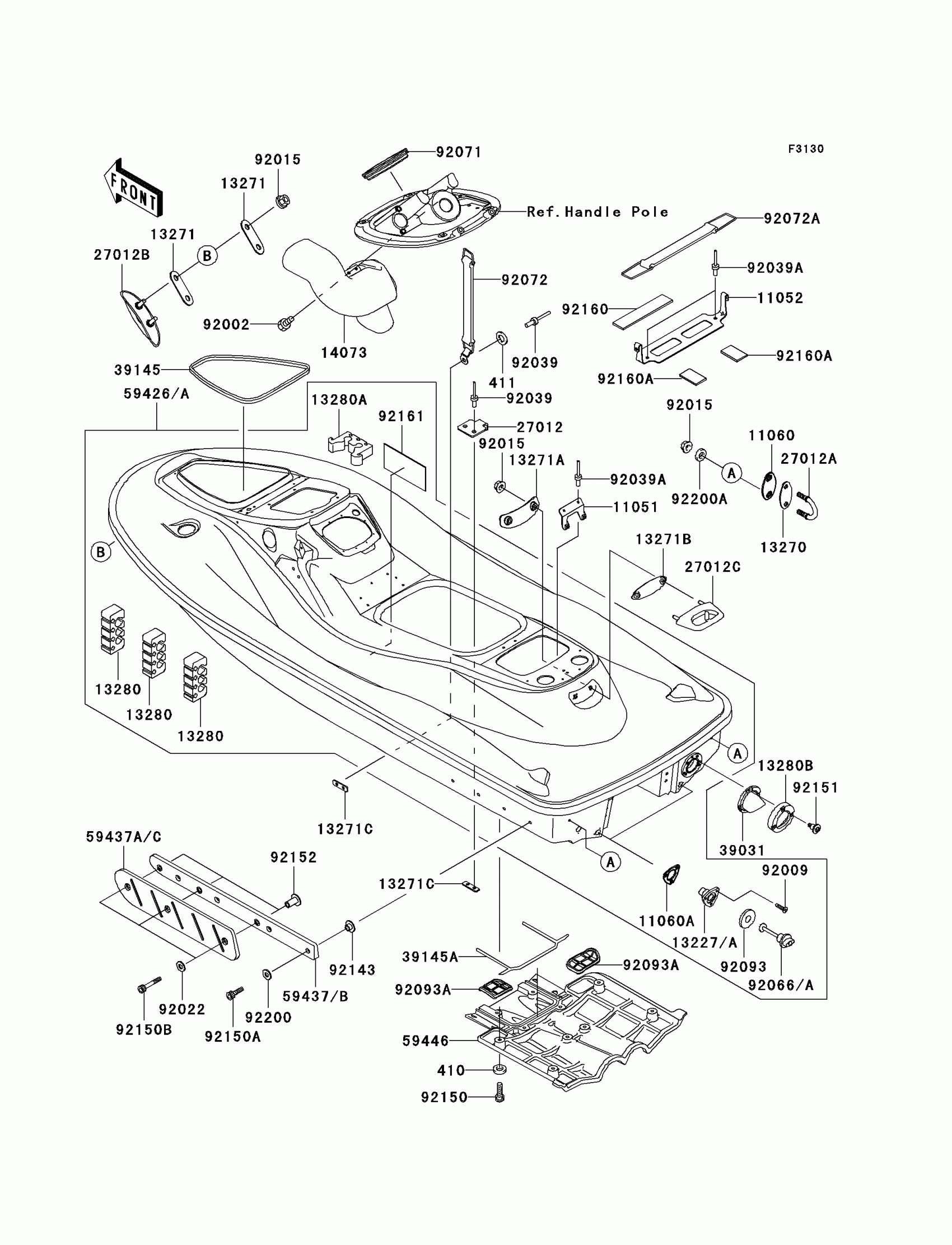

Kawasaki 1200 STX-R Hull Diagram

#

Description
Price

11051

BRACKET,BREATHER-BILGE

11051-3802

$11.76

11052

BRACKET

11052-3765

$24.84

11060

GASKET,U HOOK,RR

11060-3800

$6.20

11060A

GASKET,DRAIN PLUG

11060-3801

$6.61

13227

HOUSING,DRAIN PLUG,F.BLACK

13227-3721-6Z

$7.98

13270

PLATE

13270-3860

$8.38

13271

PLATE

13271-3724

$4.31

13271A

PLATE,REAR TOWING HOOK

13271-3859

Unavailable

13271B

PLATE

13271-3889

$11.99

13271C

PLATE

13271-3901

$2.28

13280

HOLDER

13280-3703

$8.94

13280A

HOLDER,FUEL FILTER

13280-3705

$9.80

13280B

HOLDER,EXHAUST VALVE

13280-3718

$27.61

14073

DUCT

14073-3801

$52.51

27012

HOOK

27012-3787

$6.15

27012A

HOOK

27012-3797

$32.29

27012B

HOOK,BOW,F.BLACK

27012-3822-6Z

$36.98

27012C

HOOK,REAR TOWING,F.BLACK

27012-3836-6Z

$124.86

39031

CAP-END

39031-3704

$40.86

39145

TRIM-SEAL,L=1412

39145-3748

$91.27

39145A

TRIM-SEAL,JET PUMP COVER

39145-3768

$30.22

59437

STABILIZER,RIGHT BASE,F.BLACK

59437-3725-6Z

$67.81

59437A

STABILIZER,RIGHT WING,F.BLACK

59437-3727-6Z

$67.81

59437B

STABILIZER,LEFT BASE,F.BLACK

59437-3728-6Z

$74.34

59437C

STABILIZER,LEFT WING,F.BLACK

59437-3730-6Z

$67.81

59446

COVER-JET PUMP

59446-3754

$397.39

92002

BOLT,6X20

92002-3755

$4.69

92009

SCREW,TAPPING,4X16

92009-3849

$1.59

92015

NUT,FLANGED,8MM

92015-3709

$5.05

92022

WASHER

92022-567

$2.67

92039

RIVET

92039-3747

$1.70

92039A

RIVET

92039-3755

$6.57

92066

PLUG,RR,DRAIN,F.BLACK

92066-3783-6Z

$17.50

92071

GROMMET

92071-3812

$18.18

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

411

WASHER-PLAIN,5MM

411S0500

$0.94

92072

BAND,314X18

92072-3814

$17.91

92072A

BAND,BATTERY

92072-3841

$35.27

92093

SEAL

92093-3720

$3.62

92093A

SEAL

92093-3765

$17.94

92143

COLLAR

92143-3749

$5.23

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

92150A

BOLT,SOCKET,6X25

92150-3823

$4.40

92150B

BOLT,SOCKET,6X40

92150-3847

$5.59

92151

BOLT,SOCKET,M6,SHOULDER

92151-3746

$12.05

92152

COLLAR

92152-3731

$12.48

92160

DAMPER

92160-3840

$5.88

92160A

DAMPER,40X25

92160-3865

$5.24

92161

DAMPER

92161-3728

$5.64

92200

WASHER,6.5X14.5X1.5

92200-3775

$1.74

92200A

WASHER

92200-3779

$5.30

59426

HULL-COMP,G.BLACK

59426-3947-650

$4,102.02
