Description

Price

155A

BOLT-WSP-SMALL,8X40

155R0840

$3.90

11050

BRACKET,HANDLE PAD

11050-3766

$30.82

13107

SHAFT

13107-3740

$8.58

13151

SWITCH-COMP,STOP&START

13151-3722

$420.13

39058

HANDLE-COMP,F.BLACK

39058-3735-6Z

$196.80

39063

HOUSING-CONTROL

39063-3727

$28.81

39074

LEVER-ASSY-THROTTLE

39074-3726

$111.92

39075

LEVER-THROTTLE

39075-3714

$41.51

39087

PAD-HANDLE,F.BLACK

39087-3727-6Z

$172.01

39156

PAD,HANDLE,INNER

39156-3832

$10.78

46012

HOLDER-HANDLE,UPP

46012-3720

$16.69

46012B

HOLDER-HANDLE,LWR

46012-3727

$249.86

92002

BOLT,6X12

92002-3763

$4.69

92002A

BOLT,8X25

92002-3774

$7.91

92009

SCREW,6X20

92009-3781

$6.57

92009A

SCREW,5X30

92009-3836

$4.18

92009B

SCREW,6X30

92009-3837

$4.69

92033

RING-SNAP

92033-3723

$3.29

92072

BAND,L=188

92072-1239

$1.73

92072A

BAND,L=292.1

92072-3509

Unavailable

92072B

BAND,TETHER SWITCH

92072-3816

Unavailable

92144

SPRING

92144-3749

$4.26

92191

TUBE,22X24X200

92191-3792

$30.46

92200

WASHER

92200-3738

$3.32

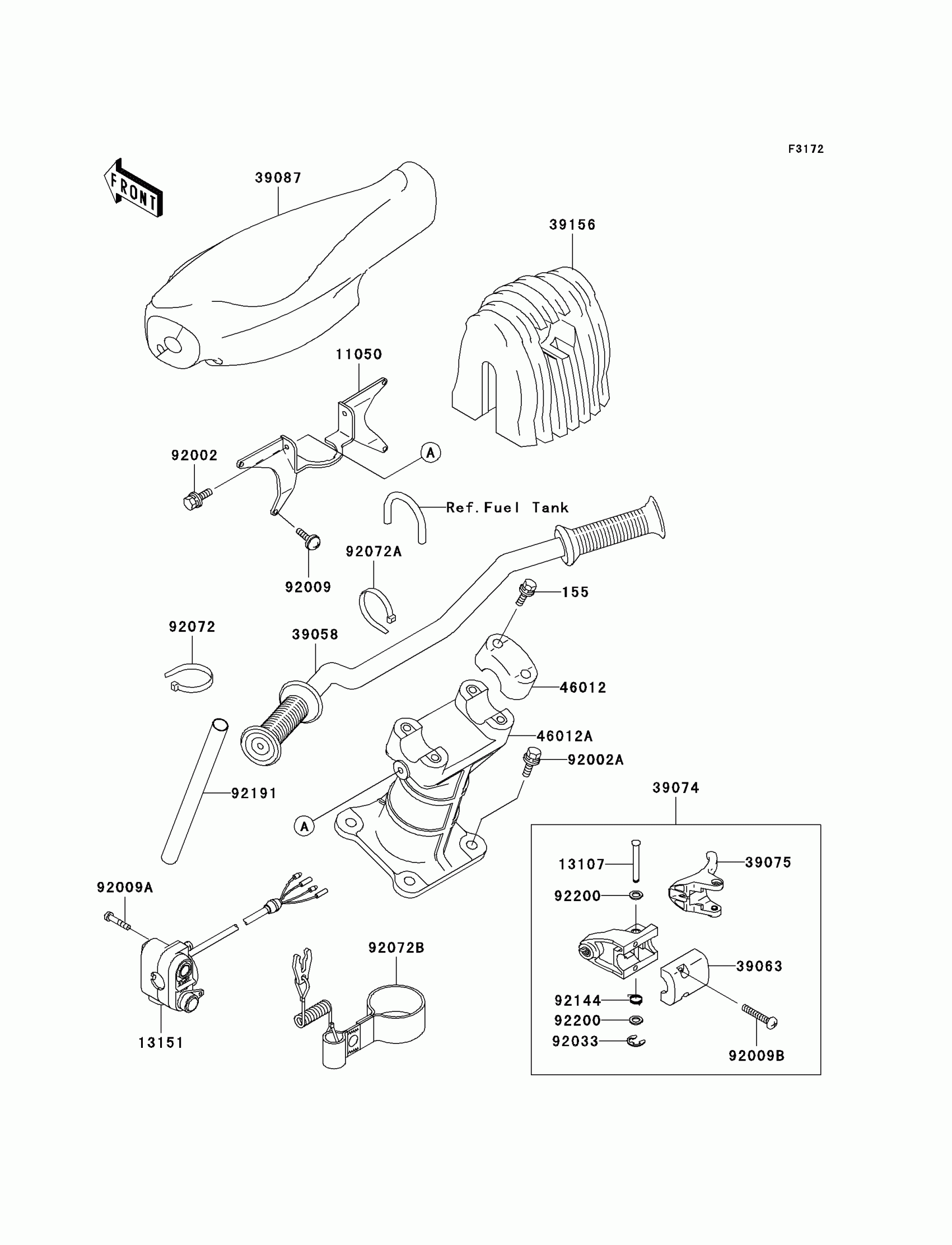

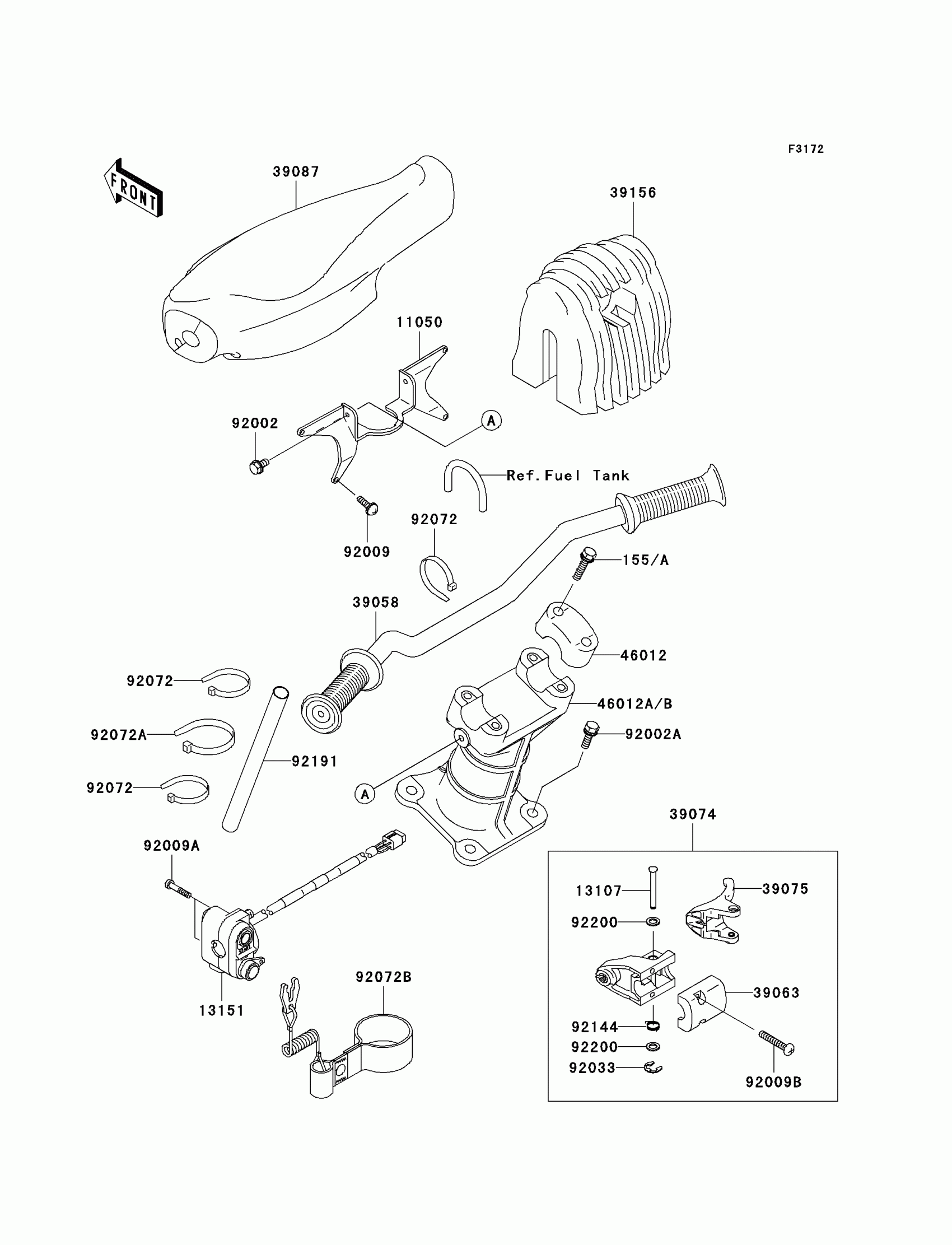

Kawasaki 1200 STX-R Handlebar Diagram
