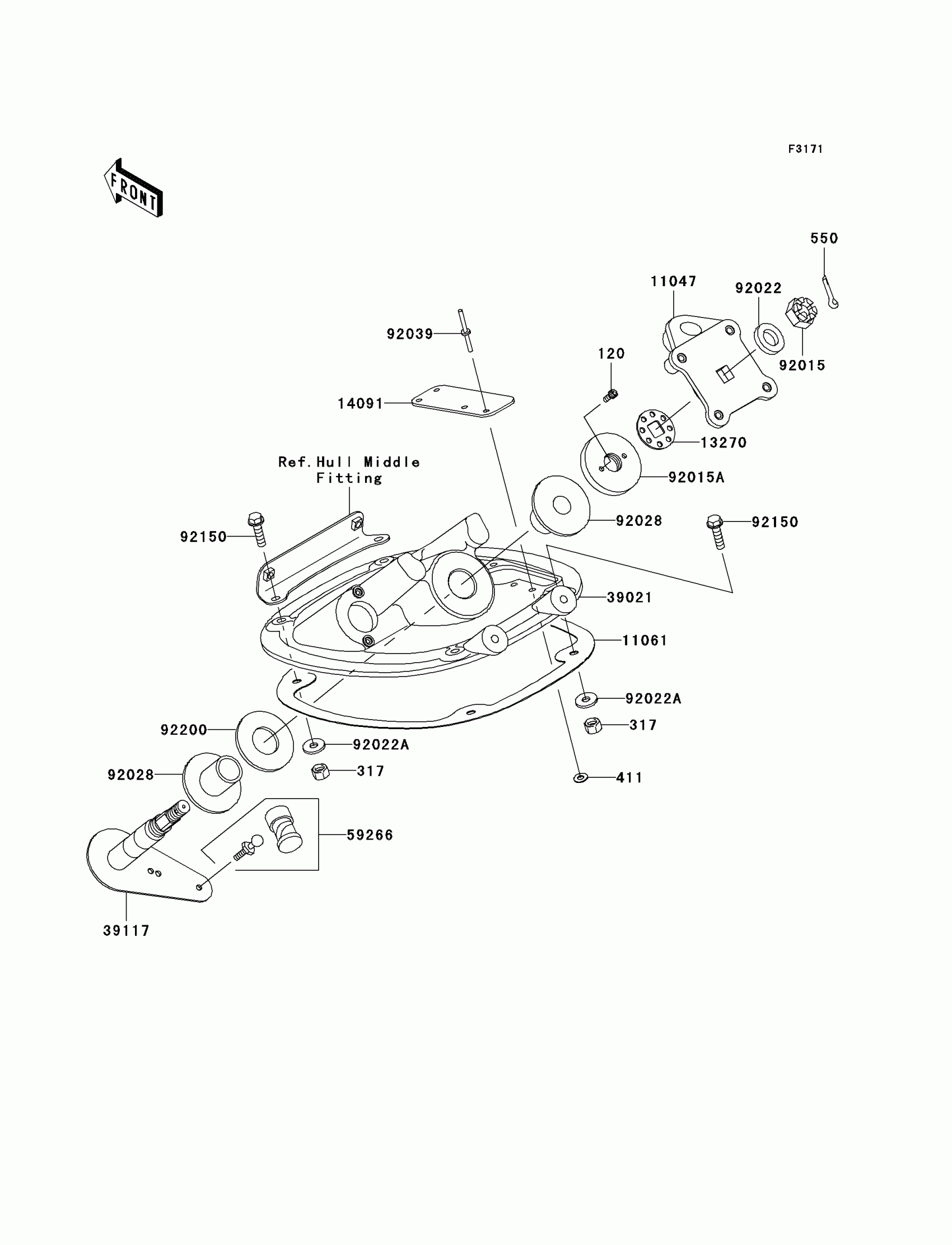

Kawasaki 1200 STX-R Handle Pole Diagram

Description

Price

120

BOLT-SOCKET,5X10

120R0510

$3.94

317

NUT

317R0800

$1.96

411

WASHER-PLAIN,5MM

411S0500

$0.94

550

PIN-COTTER,3X35

550S3035

$4.22

11047

BRACKET,HANDLE HOLDER

11047-3759

$107.88

11061

GASKET,HANDLE POLE BRACKET

11061-3735

$63.81

13270

PLATE,STEERING NUT

13270-3808

$7.71

14091

COVER,HANDLE POLE BRACKET

14091-3733

$7.65

39021

BRACKET-HANDLE POLE

39021-3714

$298.80

39117

SHAFT-STRG

39117-3713

$302.34

59266

JOINT-BALL

59266-3707

$66.16

92015

NUT,CASTLE,14MM

92015-3805

$35.50

92015A

NUT,STEERING,20MM

92015-3854

Unavailable

92022

WASHER,15X34X2.0

92022-3738

$6.57

92022A

WASHER,8.4X23X2.5

92022-3744

$4.18

92028

BUSHING,STEERING

92028-3748

$25.59

92039

RIVET,4.8MM

92039-3719

$6.22

92150

BOLT,FLANGED,8X30

92150-3803

$7.34

92200

WASHER,32.5X70X2

92200-3718

$16.69
