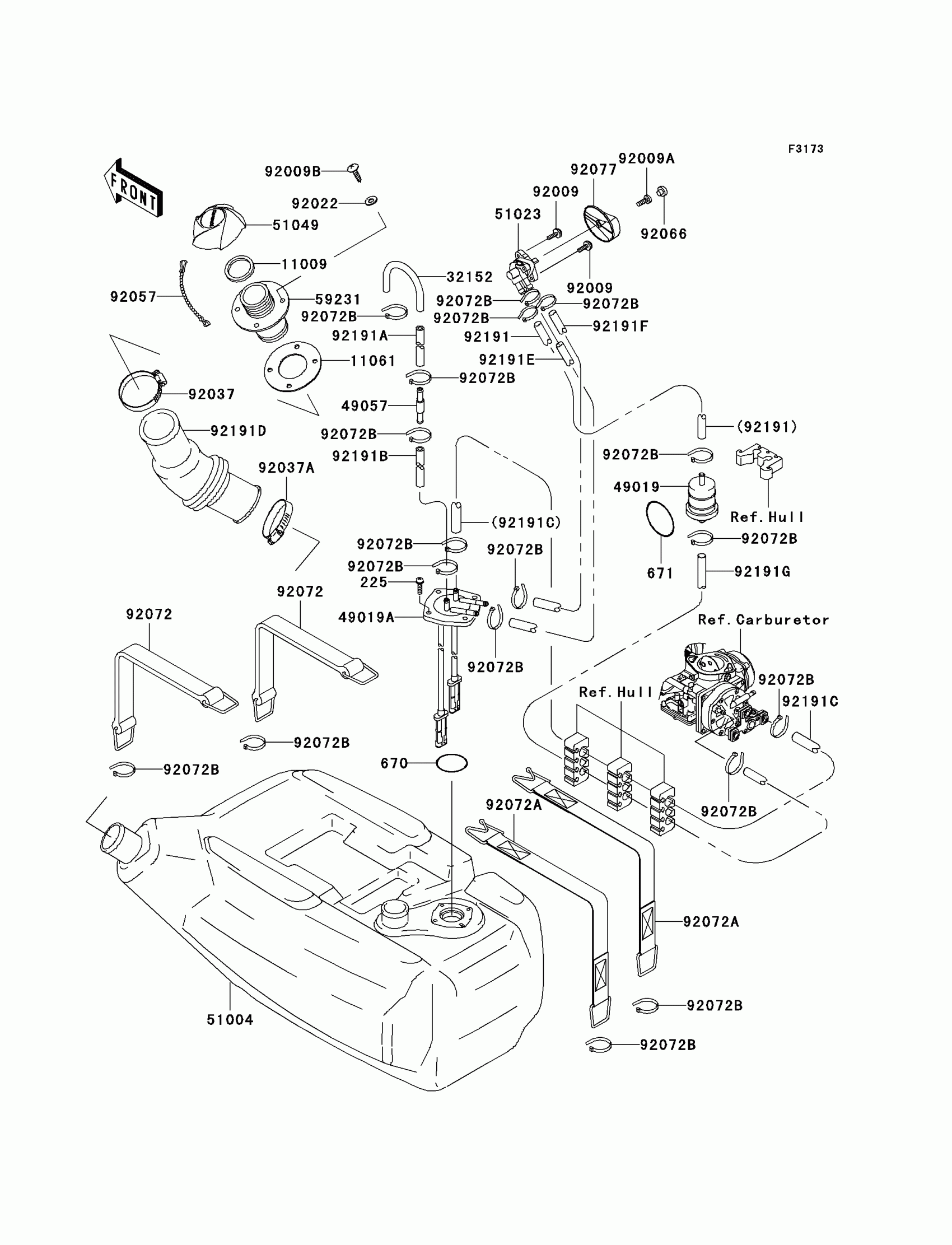

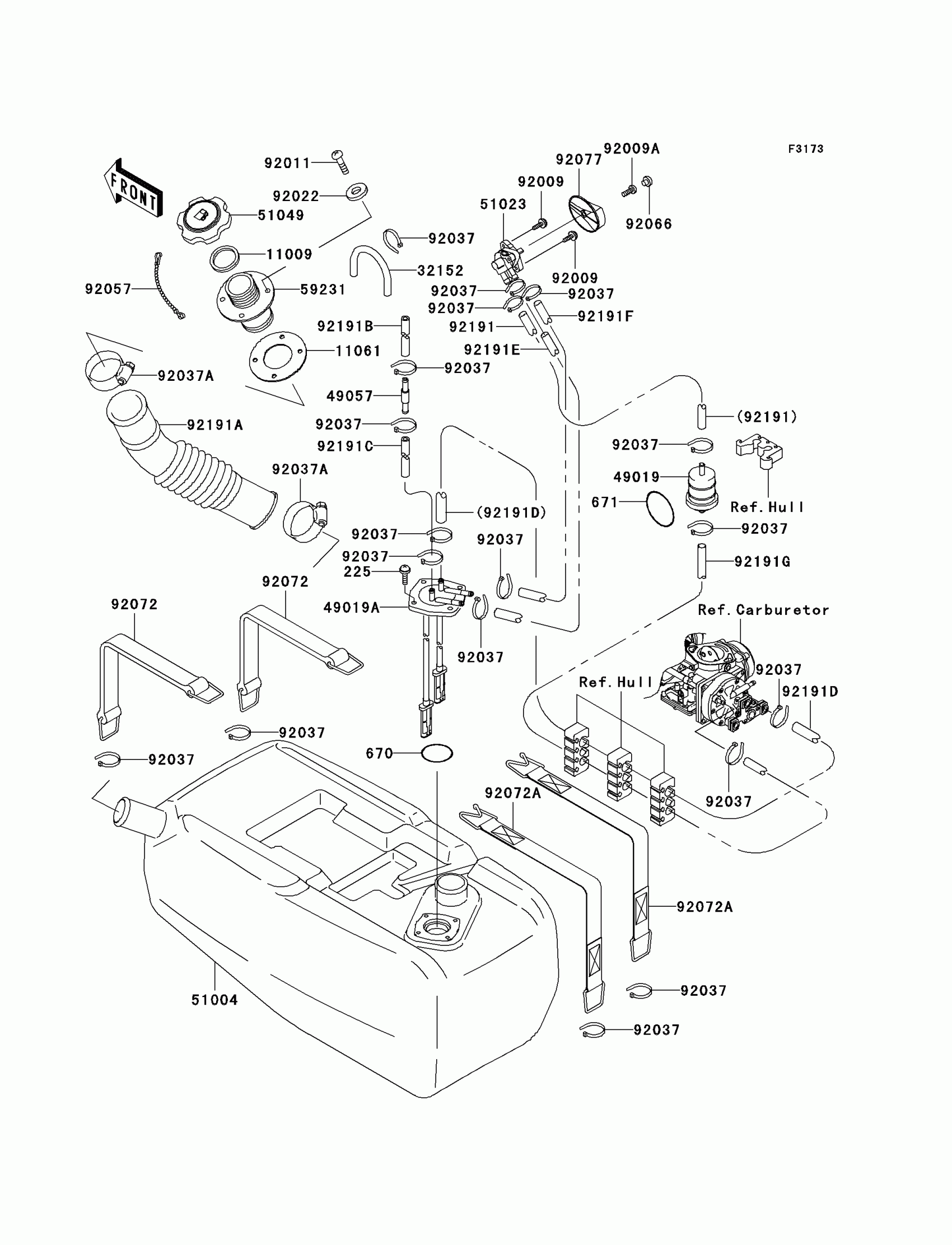

Kawasaki 1200 STX-R Fuel Tank Diagram

#

Description
Price

225

SCREW-PAN-WSP-CROS,5X20

225R0520

$4.45

670

"0" RING,36MM

670B3036

$1.03

671

O RING,65MM

671B2565

$8.86

11009

GASKET,TANK CAP

11009-3020

$13.51

11061

GASKET

11061-3701

$14.16

32152

PIPE

32152-3705

$11.96

49019

FILTER-FUEL

49019-3712

$45.64

49019A

FILTER-FUEL

49019-3718

$69.05

49057

VALVE-RELIEF

49057-3707

$64.85

51004

TANK-FUEL

51004-3740

Unavailable

51023

TAP-ASSY,FUEL

51023-3736

$123.67

51049

CAP-TANK,FUEL

51049-3725

Unavailable

59231

FILLER,FUEL TANK

59231-3716

Unavailable

92009

SCREW,5X16

92009-3789

$2.97

92009A

SCREW,4X12

92009-3838

$1.78

92009B

SCREW,TAPPING,4X16

92009-3849

$1.59

92022

WASHER

92022-563

$1.13

92037

CLAMP

92037-3009

$3.70

92037A

CLAMP

92037-3738

$6.89

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92066

PLUG,FUEL&CHOKE KNOB,F.BLACK

92066-3770-6Z

$4.68

92072

BAND

92072-3845

$18.53

92072A

BAND

92072-3850

$48.63

92072B

BAND,L=99

92072-3871

$2.26

92077

KNOB,FUEL&CHOKE,F.BLACK

92077-3732-6Z

$14.51

92191

TUBE,5.8X10.8X800,WHITE

92191-3720

$22.46

92191A

TUBE,5.8X10.8X1000

92191-3736

Unavailable

92191B

TUBE,5.8X10.8X100

92191-3828

Unavailable

92191C

TUBE,CARB-TANK

92191-3901

$19.58

92191D

TUBE,FUEL TANK - FILLER

92191-3903

$38.04

92191E

TUBE,TANK-TAP(ON)

92191-3931

$12.71

92191F

TUBE,TANK-TAP(RES)

92191-3932

$12.71

92191G

TUBE,FILTER-CAB

92191-3952

$37.98
