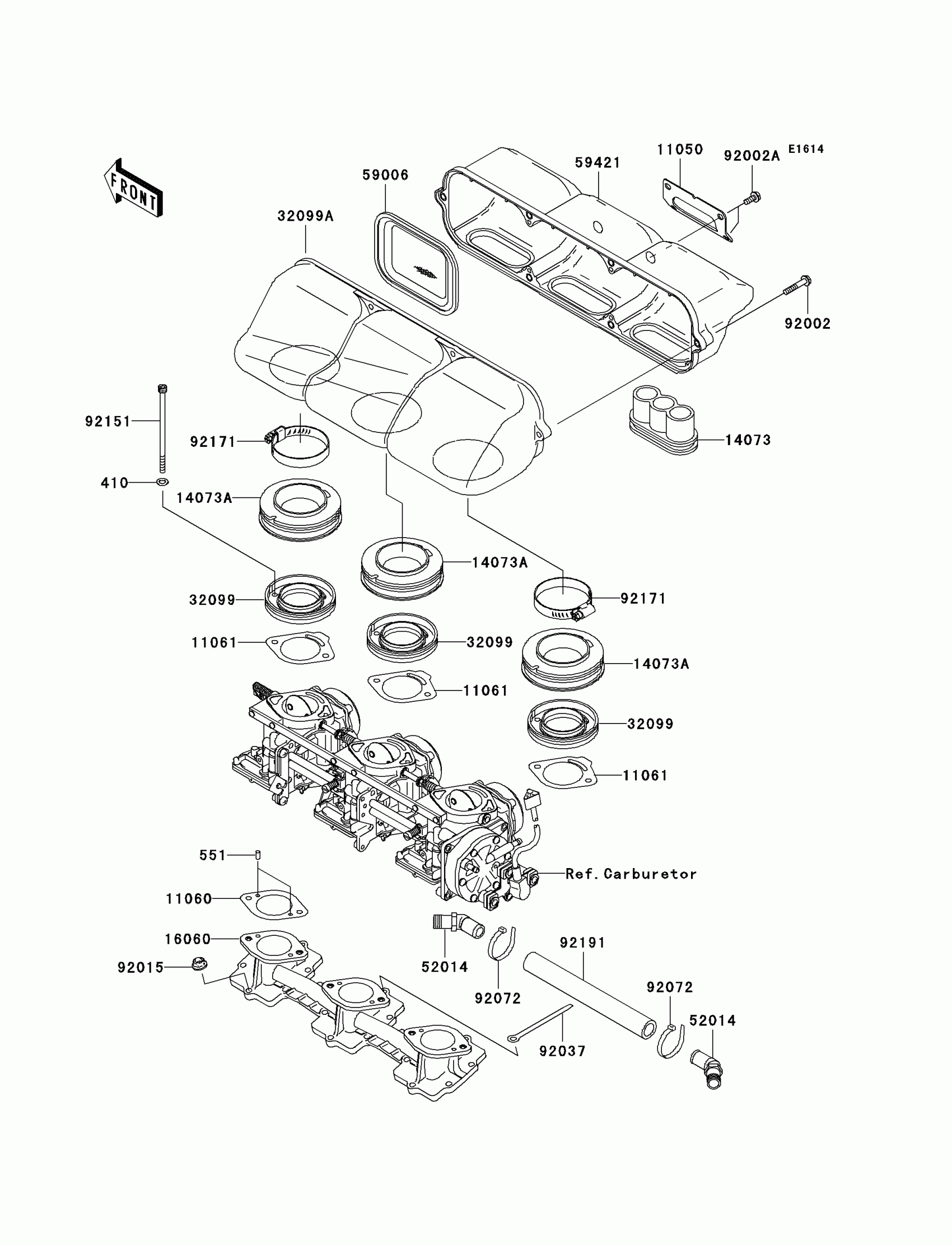

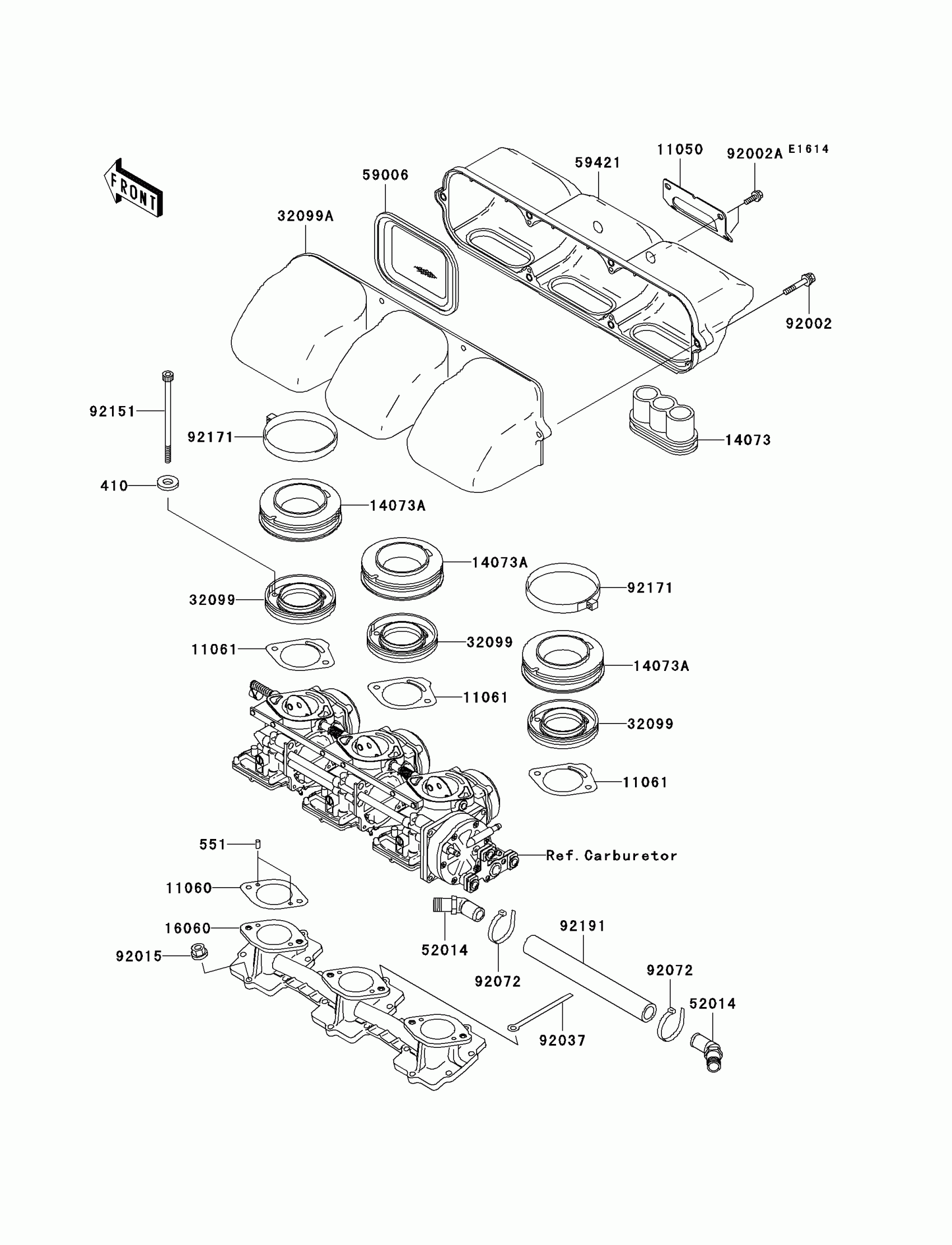

Kawasaki 1200 STX-R Flame Arrester Diagram

Description

Price

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.68

551

PIN-DOWEL

551R0408

$4.09

11050

BRACKET

11050-3754

Unavailable

11060

GASKET

11060-3788

$6.19

11061

GASKET,CARBURETOR

11061-3704

$10.53

14073

DUCT

14073-3776

$42.79

14073A

DUCT

14073-3785

$22.44

16060

PIPE-INTAKE

16060-3708

$319.33

32099

CASE

32099-3831

$56.68

32099A

CASE,ARRESTER

32099-3843

$75.49

52014

ELBOW

52014-3714

$46.98

59006

ARRESTER-FLAME

59006-3715

$57.59

59421

COVER-INTAKE

59421-3728

$55.98

92002

BOLT,6X35

92002-3715

$5.75

92002A

BOLT,6X16

92002-3728

$3.24

92015

NUT,6MM

92015-3767

$3.57

92037

CLAMP,L=100

92037-3736

$4.85

92072

BAND

92072-3848

$1.30

92151

BOLT,SOCKET,6X120

92151-3732

$8.31

92171

CLAMP

92171-3707

Unavailable

92191

TUBE,16.5X24.5X203

92191-3837

$15.83
