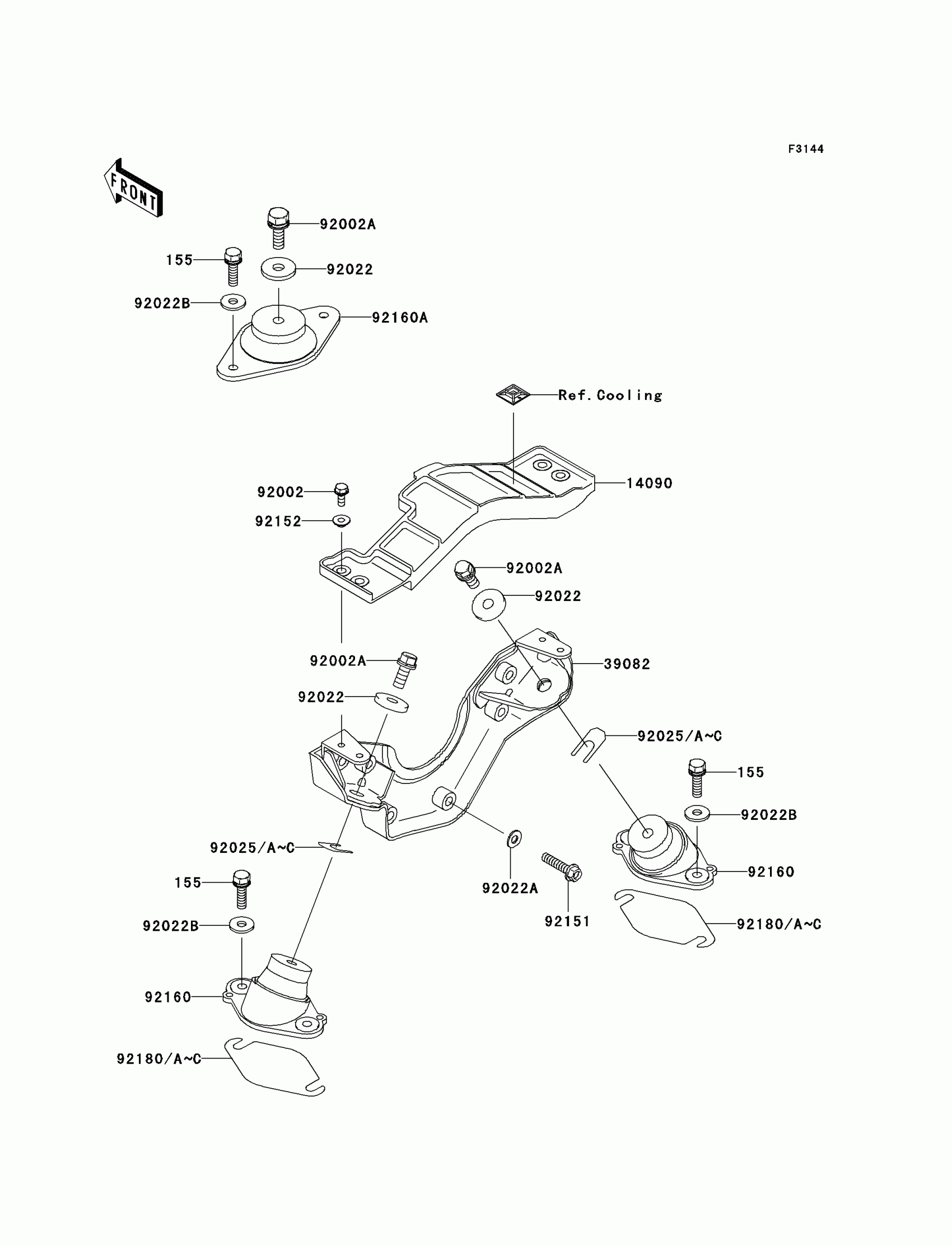

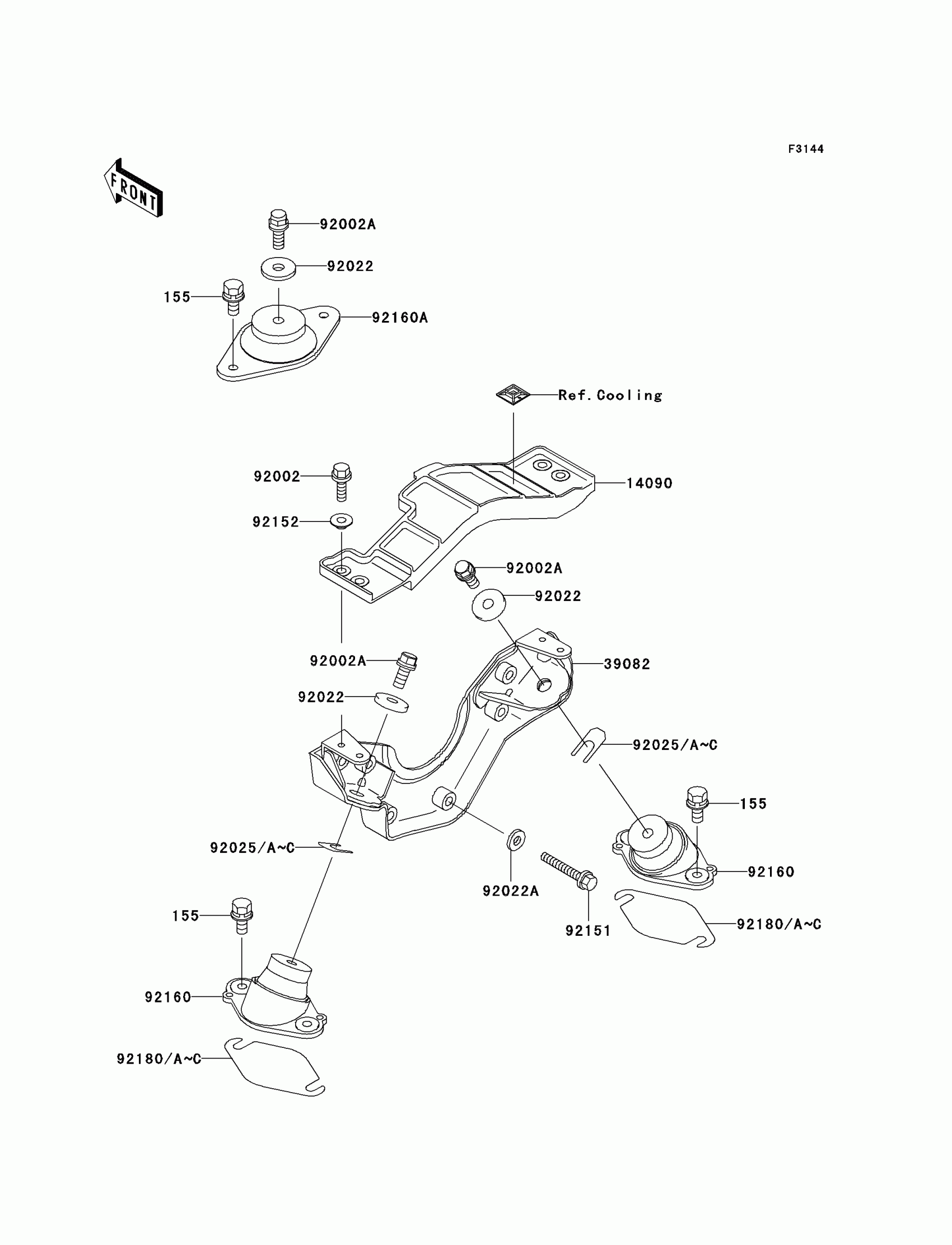

Kawasaki 1200 STX-R Engine Mount Diagram

Description

Price

155

BOLT-WSP-SMALL,8X30

155R0830

$6.57

14090

COVER

14090-3815

$32.72

39082

MOUNT-ENGINE

39082-3720

$235.69

92002

BOLT,6X16

92002-3728

$4.69

92002A

BOLT,10X25

92002-3770

$10.56

92022

WASHER,32X10.5X4

92022-3023

$8.84

92022A

WASHER,8.2X18X1.5

92022-3743

$4.22

92022B

WASHER,8.4X23X2.5

92022-3744

$4.18

92025

SHIM,T=0.3MM

92025-3705

Unavailable

92025A

SHIM,T=0.5MM

92025-3706

Unavailable

92025B

SHIM,T=1.0MM

92025-3707

Unavailable

92025C

SHIM,T=1.5MM

92025-3708

Unavailable

92151

BOLT,8X35

92151-3763

$2.97

92152

COLLAR

92152-3712

$2.75

92160

DAMPER,ENGINE MOUNT

92160-3838

$98.59

92160A

DAMPER

92160-3903

$121.21

92180

SHIM,T=0.30

92180-3708

Unavailable

92180A

SHIM,T=0.50

92180-3709

Unavailable

92180B

SHIM,T=1.00

92180-3710

Unavailable

92180C

SHIM,T=1.50

92180-3711

Unavailable
