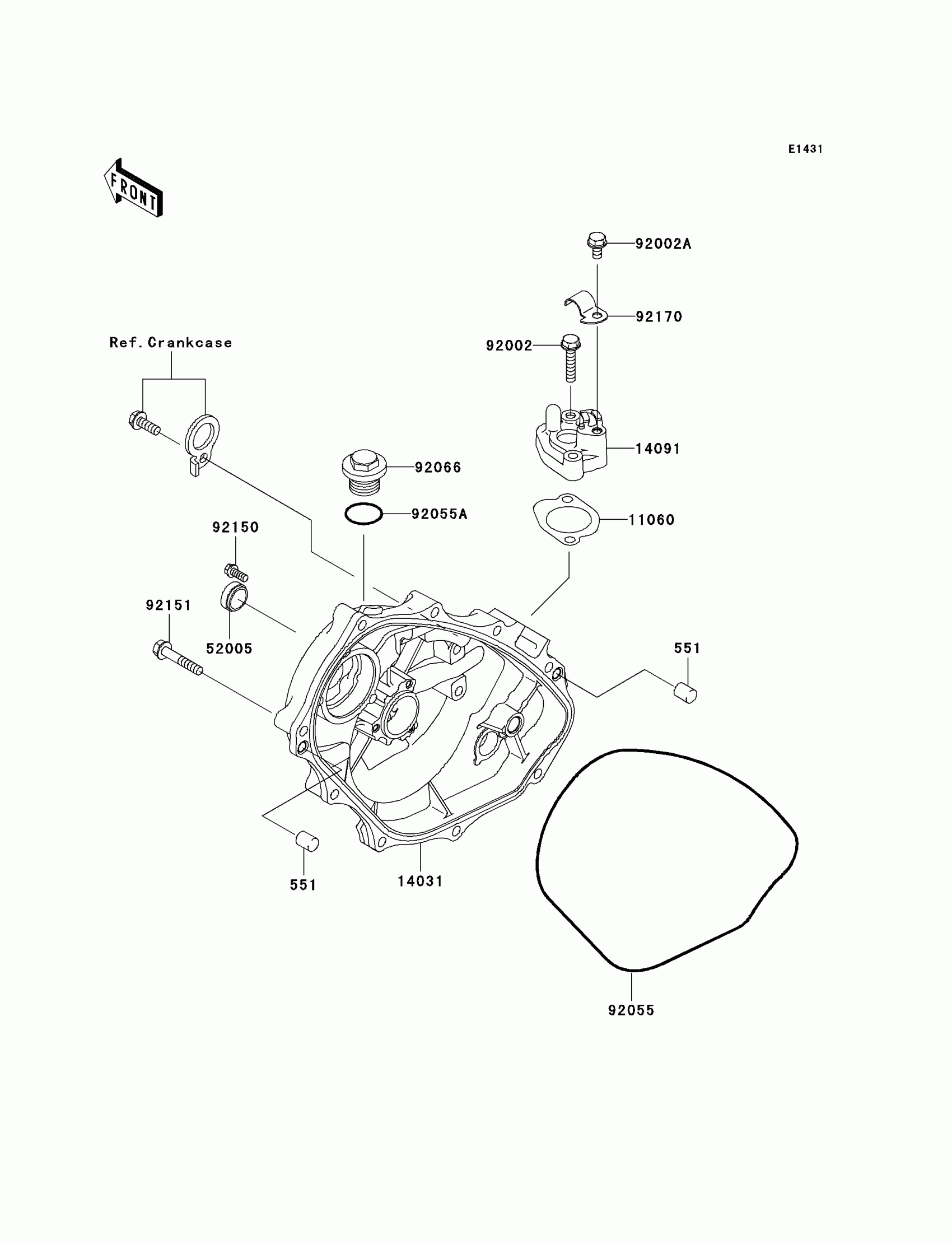

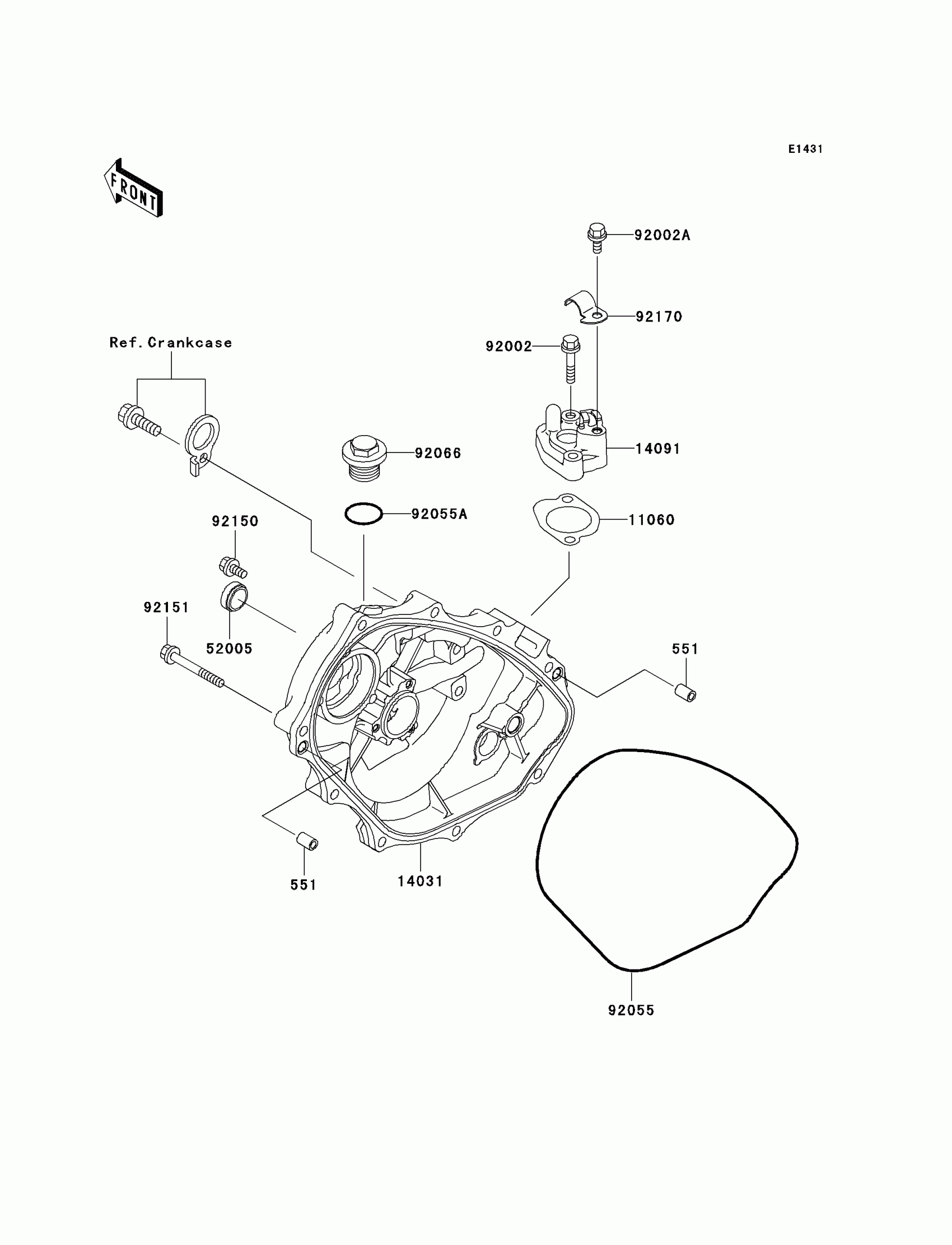

Kawasaki 1200 STX-R Engine Cover(s) Diagram

Description

Price

551

PIN-DOWEL

551R0812

$6.04

11060

GASKET

11060-3803

$7.63

14031

COVER-GENERATOR

14031-3728

$277.03

14091

COVER

14091-3702

$50.32

52005

GAUGE,OIL LEVEL

52005-1055

$11.20

92002

BOLT,6X30

92002-3726

$3.57

92002A

BOLT,6X12

92002-3763

$3.57

92055

RING-O,3.0X220

92055-3748

$14.49

92055A

RING-O

92055-515

$1.98

92066

PLUG

92066-3739

$18.75

92150

BOLT,5X12

92150-3760

$8.61

92151

BOLT,6X35

92151-3768

$2.42

92170

CLAMP

92170-3736

$8.58
