Electrical Equipment

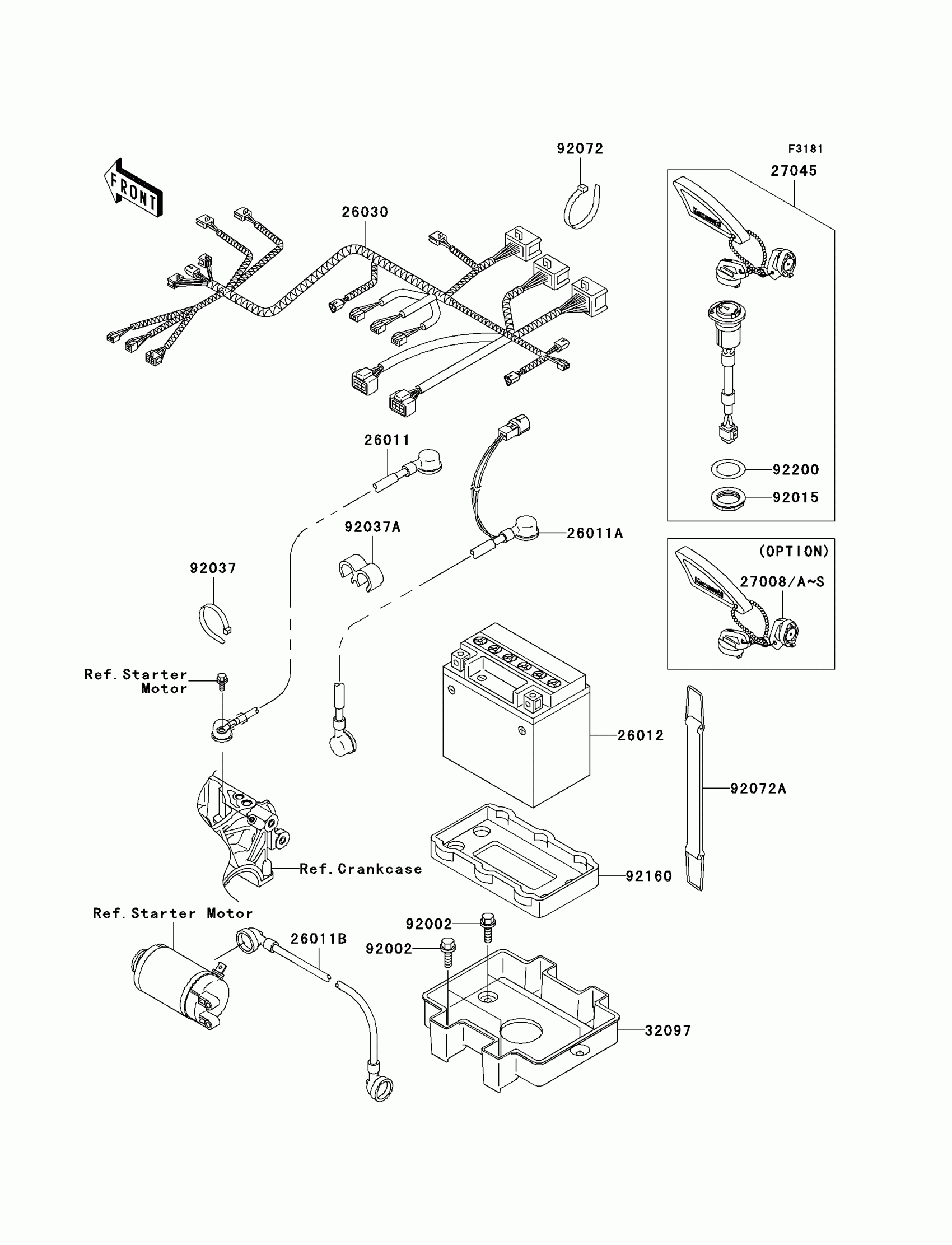

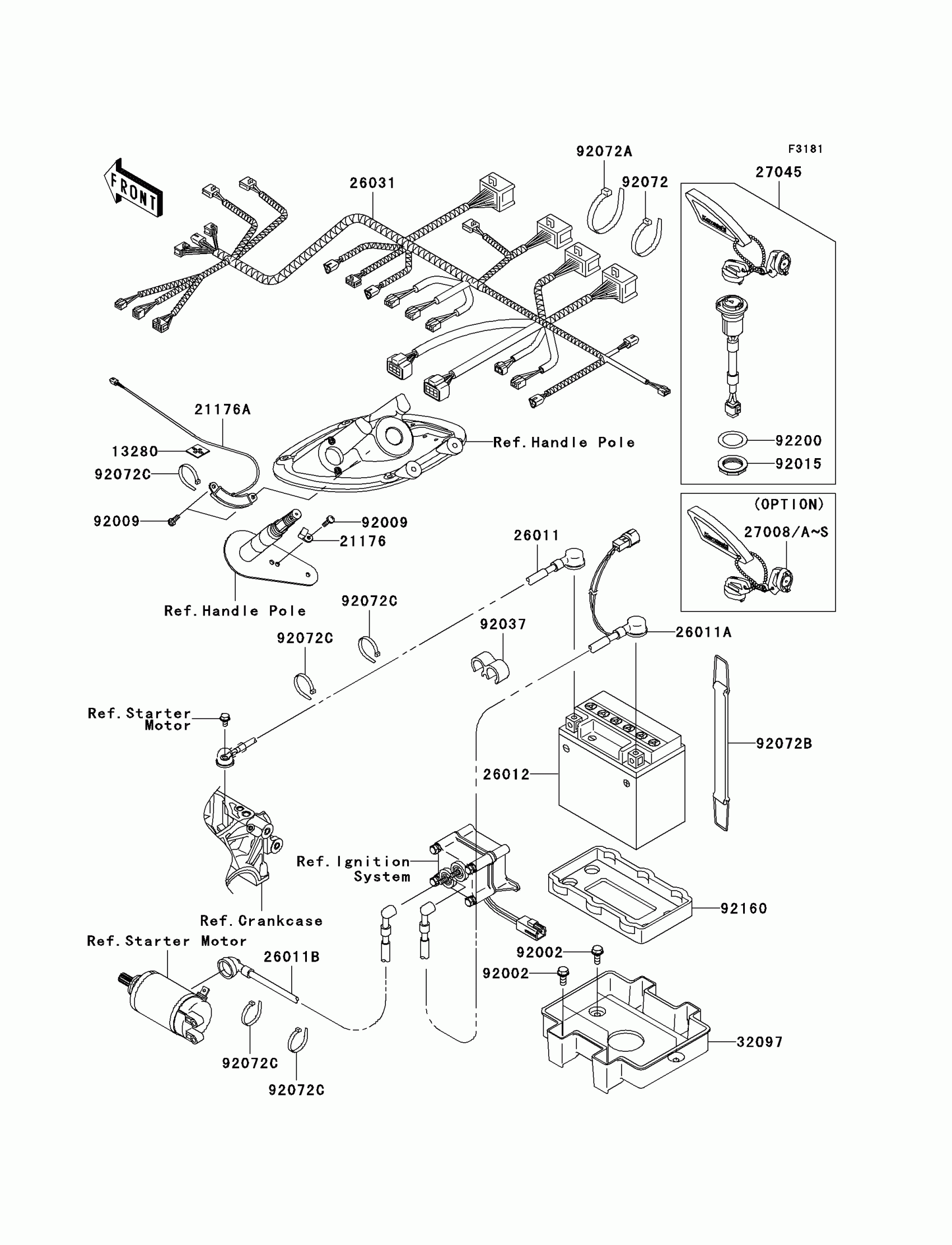

Kawasaki 1200 STX-R Electrical Equipment Diagram
#
13280
HOLDER
13280-3739
Unavailable
21176
SENSOR,MAGNET
21176-3746
$29.40
21176A
SENSOR,HOLE IC
21176-3748
$156.12
26011
WIRE-LEAD,BATTERY(-)-STARTER
26011-3876
$67.16
26011A
WIRE-LEAD,BATTERY(+)-RELAY
26011-3898
$112.37
26011B
WIRE-LEAD,RELAY-STARTER
26011-3899
$68.76
26012
BATTERY,YTX20L-BS,12V 18AH
26012-3730
Unavailable
26031
HARNESS,MAIN
26031-3708
$533.74
27008
KEY-LOCK,MAGNETIC SW,#3001
27008-3745
$72.13
27008A
KEY-LOCK,MAGNETIC SW,#3002
27008-3746
$72.13
27008B
KEY-LOCK,MAGNETIC SW,#3003
27008-3747
$72.13
27008C
KEY-LOCK,MAGNETIC SW,#3004
27008-3748
$72.13
27008D
KEY-LOCK,MAGNETIC SW,#3005
27008-3749
$72.13
27008E
KEY-LOCK,MAGNETIC SW,#3006
27008-3750
$72.13
27008F
KEY-LOCK,MAGNETIC SW,#3007
27008-3751
$72.13
27008G
KEY-LOCK,MAGNETIC SW,#3008
27008-3752
$72.13
27008H
KEY-LOCK,MAGNETIC SW,#3009
27008-3753
$72.13
27008I
KEY-LOCK,MAGNETIC SW,#3010
27008-3754
$72.13
27008J
KEY-LOCK,MAGNETIC SW,#3011
27008-3755
$72.13
27008K
KEY-LOCK,MAGNETIC SW,#3012
27008-3756
$72.13
27008L
KEY-LOCK,MAGNETIC SW,#3013
27008-3757
$72.13
27008M
KEY-LOCK,MAGNETIC SW,#3014
27008-3758
$72.13
27008N
KEY-LOCK,MAGNETIC SW,#3015
27008-3759
$72.13
27008O
KEY-LOCK,MAGNETIC SW,#3016
27008-3760
$72.13
27008P
KEY-LOCK,MAGNETIC SW,#3017
27008-3761
$72.13
27008Q
KEY-LOCK,MAGNETIC SW,#3018
27008-3762
$72.13
27008R
KEY-LOCK,MAGNETIC SW,#3019
27008-3763
$72.13
27008S
KEY-LOCK,MAGNETIC SW,#3020
27008-3764
$72.13
27045
SWITCH-ASSY,MAIN
27045-3723
$307.05
32097
CASE-BATTERY
32097-3703
$19.99
92002
BOLT,6X16
92002-3728
$4.69
92009
SCREW,5X16
92009-3868
$1.54
92015
NUT
92015-3848
$5.52
92037
CLAMP,HOSE
92037-1603
$5.00
92072
BAND,L=188
92072-1239
$1.73
92072A
BAND,L=292.1
92072-3509
Unavailable
92072B
BAND,340X22
92072-3805
$14.90
92072C
BAND,L=99
92072-3871
$2.26
92160
DAMPER
92160-3929
$31.19
92200
WASHER
92200-3736
$3.32
