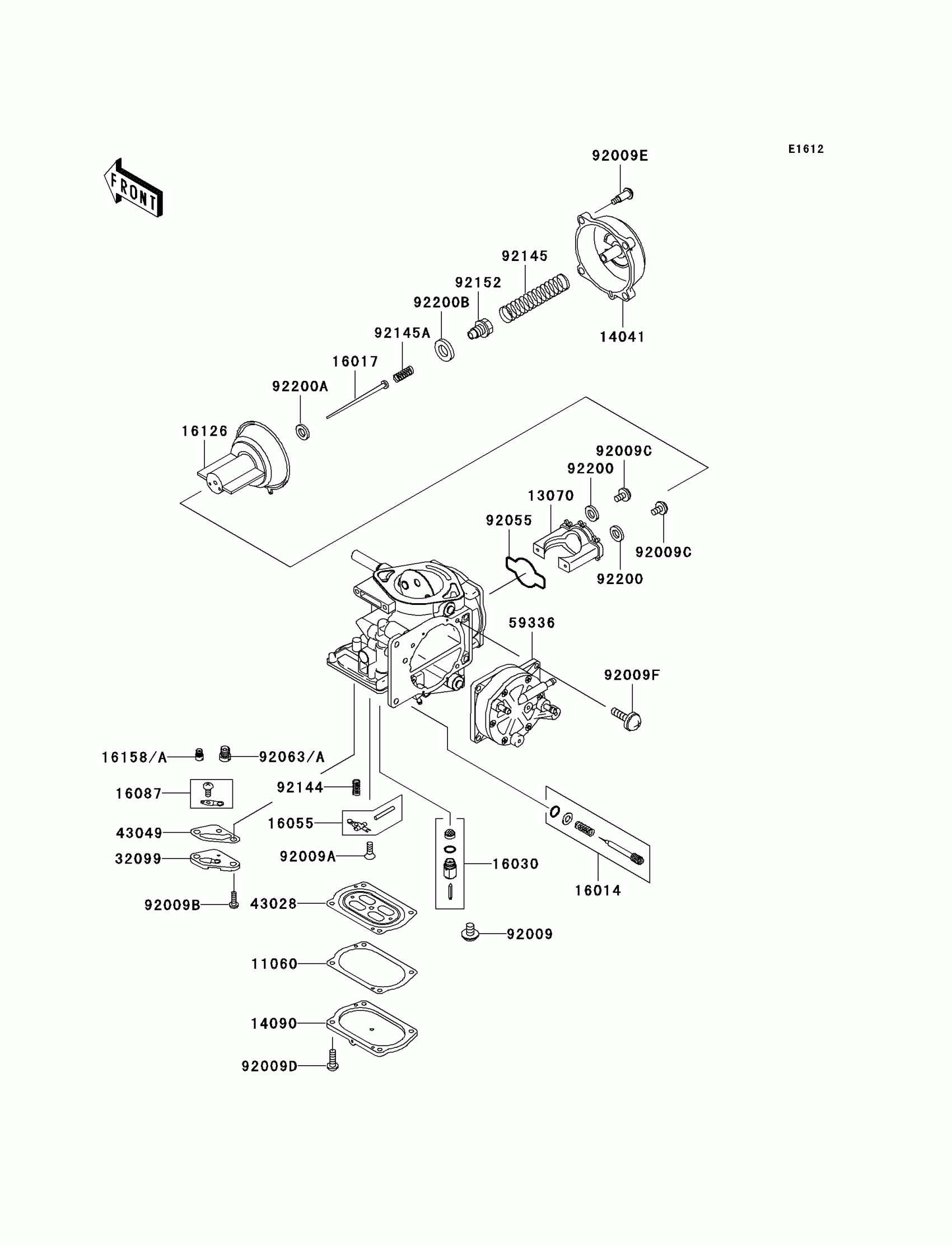

Kawasaki 1200 STX-R Carburetor Parts Diagram

#

Description
Price

11060

GASKET,DIAPHRAGM COVER

11060-3789

$9.83

13070

GUIDE,VACUUM VALVE

13070-3727

$42.50

14041

COVER-COMP,MIXING

14041-1100

$88.63

14090

COVER,DIAPHRAGM

14090-3816

$36.55

16014

SCREW-PILOT AIR

16014-3701

$54.27

16017

JET-NEEDLE,N8DC

16017-3705

$43.27

16030

VALVE-FLOAT

16030-3704

$46.36

16055

ARM-FLOAT

16055-3703

$56.65

16087

VALVE-CHECK

16087-3706

$33.14

16126

VALVE,VACUUM

16126-3706

$222.09

16158

JET-SLOW,#48

16158-3724

Unavailable

16158A

JET-SLOW,#45

16158-3725

$23.29

32099

CASE,JET

32099-3833

Unavailable

43028

DIAPHRAGM,CARBURETOR

43028-3711

$79.45

43049

PACKING,JET CASE

43049-3713

$8.00

59336

CASE-PUMP,DIAPHRAGM

59336-3717

$248.31

92009

SCREW

92009-1771

Unavailable

92009A

SCREW,3X8

92009-3712

$2.05

92009B

SCREW,4X8

92009-3804

$4.61

92009C

SCREW,VALVE GUIDE

92009-3839

$9.19

92009D

SCREW,DIAPHRAGM COVER

92009-3840

$2.42

92009E

SCREW,MIXING COVER

92009-3841

$2.52

92009F

SCREW,6X16

92009-3865

$4.42

92055

RING-O,VACUUM VALVE GUIDE

92055-3749

Unavailable

92063

JET-MAIN,#165

92063-3720

$18.51

92063A

JET-MAIN,#155

92063-3723

$18.42

92144

SPRING,FLOAT ARM

92144-3764

Unavailable

92145

SPRING,VALVE

92145-3714

$29.07

92145A

SPRING,JET NEEDLE

92145-3715

$8.71

92152

COLLAR,JET NEEDLE

92152-3706

$22.00

92200

WASHER,VALVE GUIDE

92200-3772

$3.58

92200A

WASHER,JET NEEDLE

92200-3773

$4.25

92200B

WASHER,JET NEEDLE COLLAR

92200-3774

$4.92
