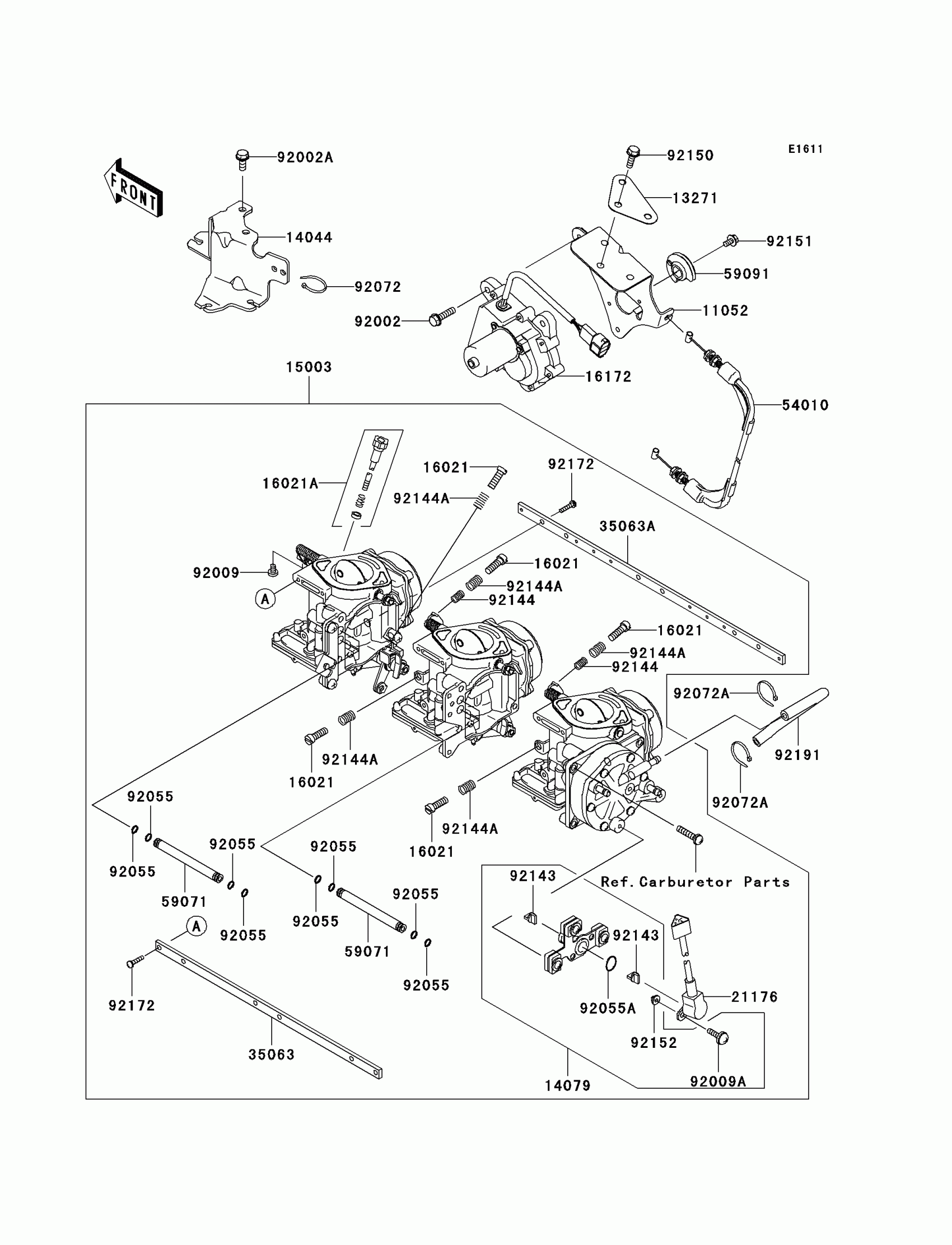

Kawasaki 1200 STX-R Carburetor Diagram

#

Description
Price

11052

BRACKET

11052-3771

$26.84

13271

PLATE

13271-3846

$7.21

14044

HOLDER-CABLE,CARBURETOR

14044-3744

$36.90

14079

HOLDER-ASSY,SENSOR

14079-3722

$175.18

15003

CARBURETOR-ASSY

15003-3744

$2,343.56

16021

SCREW-THROTTLE STOP

16021-3704

$42.88

16021A

SCREW-THROTTLE STOP

16021-3709

$61.04

16172

ACTUATOR

16172-3703

$640.45

21176

SENSOR

21176-3739

$382.96

35063

STAY,CARBURETOR

35063-3706

$103.97

35063A

STAY,CARBURETOR

35063-3707

$103.97

54010

CABLE

54010-3715

$31.10

59071

JOINT

59071-3766

$45.68

59091

PULLEY

59091-3708

$35.45

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X16

92002-3728

$4.69

92009

SCREW,4X6

92009-3786

$5.23

92009A

SCREW,SENSOR

92009-3863

$2.75

92055

RING-O

92055-1246

$4.50

92055A

RING-O,SENSOR

92055-1574

$4.33

92072

BAND,L=188

92072-1239

$1.73

92072A

BAND,L=152

92072-3874

$4.18

92143

COLLAR

92143-1907

$9.50

92144

SPRING,ADJUST SCREW

92144-3704

$6.89

92144A

SPRING,THROTTLE STOP SCREW

92144-3745

$7.98

92150

BOLT,6X18

92150-3729

$4.69

92151

BOLT,5X10

92151-3749

$36.21

92152

COLLAR,SENSOR

92152-3721

$9.89

92172

SCREW,5X13

92172-3706

$5.11

92191

TUBE,PULSE

92191-3838

$7.75
