Partiron

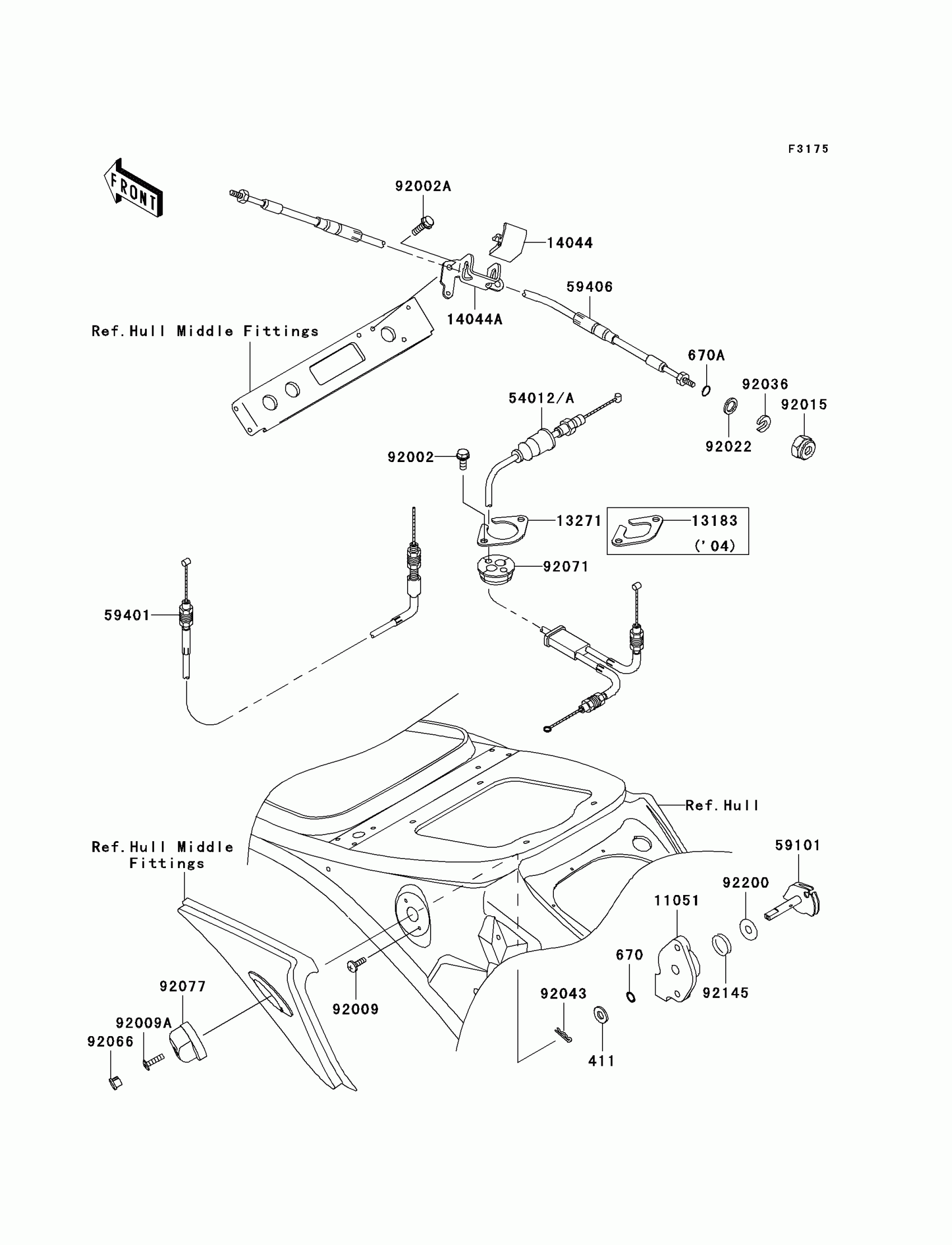

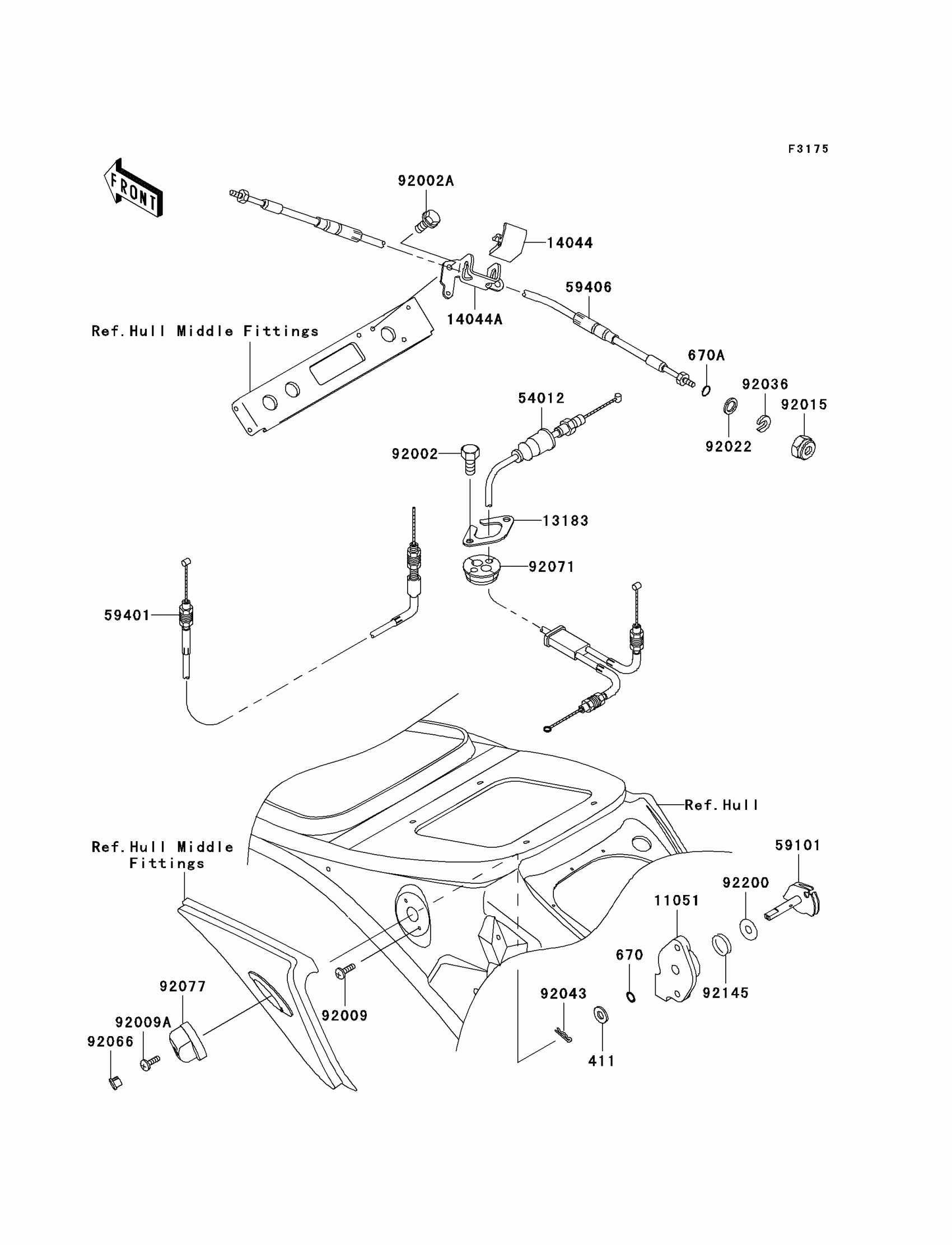

Kawasaki 1200 STX-R Cables Diagram

#

Description
Price

411

WASHER-PLAIN,8MM

411S0800

$2.15

670

O RING,8MM

670B1508

$1.00

670A

O RING,11MM

670B2011

Unavailable

11051

BRACKET,STARTER CABLE

11051-3744

$24.12

13183

PLATE

13183-3810

Unavailable

14044

HOLDER-CABLE,STEERING

14044-3714

$12.71

14044A

HOLDER-CABLE,STEERING

14044-3717

$24.05

54012

CABLE-THROTTLE

54012-3768

$131.62

59101

REEL

59101-3715

$59.49

59401

CABLE-CHOKE

59401-3727

$46.62

59406

CABLE-STRG

59406-3748

Unavailable

92002

BOLT,6X16

92002-3728

$3.24

92002A

BOLT,6X20

92002-3755

$3.57

92009

SCREW,5X16

92009-3789

$2.42

92009A

SCREW,4X12

92009-3838

$1.53

92015

NUT,20MM

92015-526

$30.30

92022

WASHER

92022-535

$7.25

92036

RING-SNAP

92036-501

Unavailable

92043

PIN

92043-3752

$3.27

92066

PLUG,FUEL&CHOKE KNOB,F.BLACK

92066-3770-6Z

Unavailable

92071

GROMMET,HARNESS

92071-3790

$9.34

92077

KNOB,FUEL&CHOKE,F.BLACK

92077-3732-6Z

Unavailable

92145

SPRING

92145-3712

$5.85

92200

WASHER,8.5X34X0.5

92200-3770

$1.95
