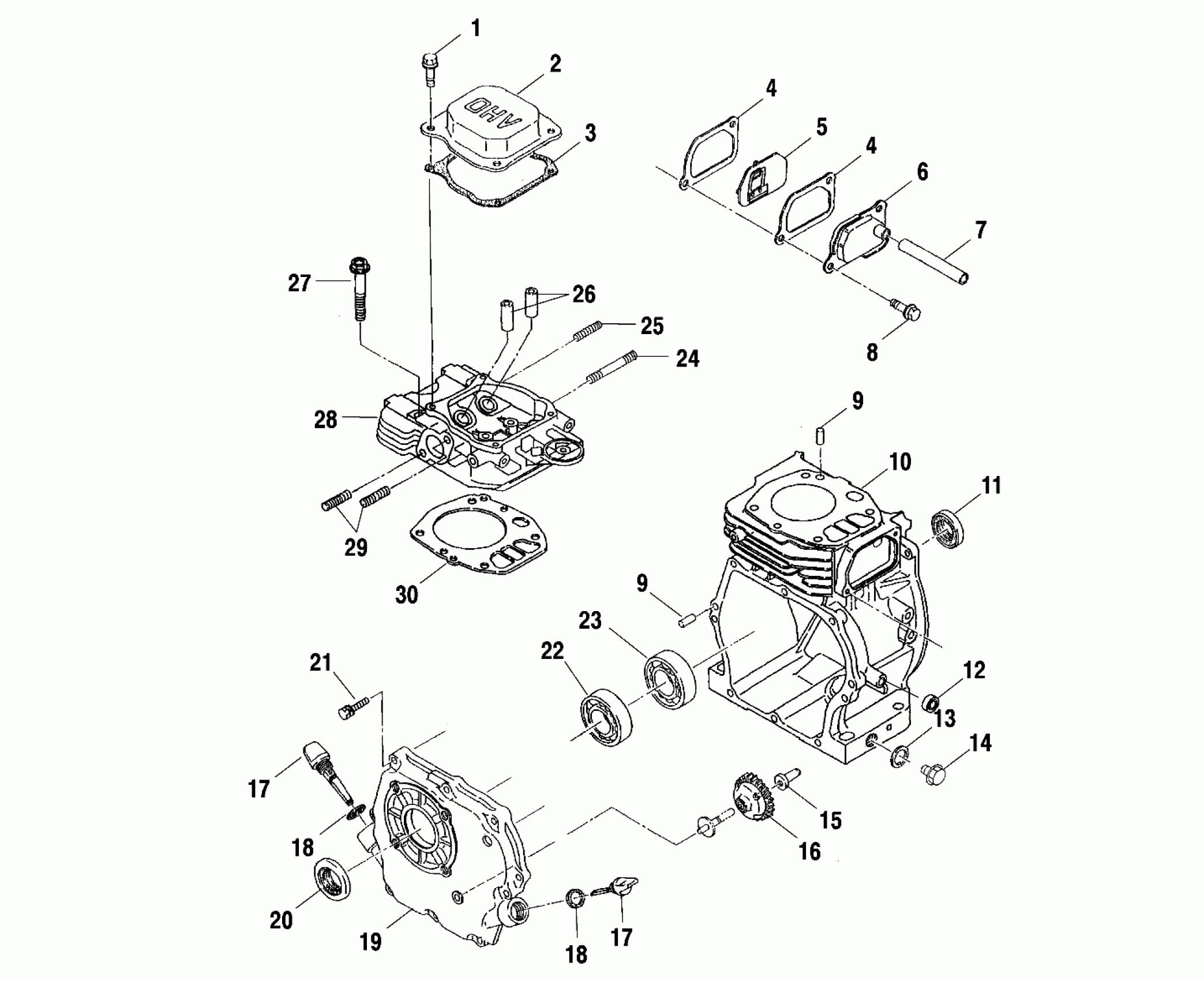

Polaris 120 XCSP - S02WB1AS CRANKCASE - S02WB1AS (4968896889B02) Diagram

#

Description
Price

1

Bolt, Flange

3083568

$3.85

2

Cover, Rocker

3086527

$40.46

3

Gasket, Rocker Cover

3086528

Unavailable

4

Gasket, Breather Cover

3086531

$8.89

4

Gasket, Breather Cover

3086531

$8.89

5

Plate, Breather

3086530

$24.27

6

Cover, Breather

3086529

$34.99

7

Pipe, Rubber

3086532

$24.27

8

Bolt, Flange

3086125

$2.39

9

Pin, Dowel

3083054

Unavailable

9

Pin, Dowel

3083054

Unavailable

10

Asm., Crankcase (Incl. 9,10,11,12,22)

3087143

$339.99

11

Seal, Oil

3086510

$40.46

12

Seal, Oil

3087144

$9.59

13

GASKET

3082956

$4.84

14

PLUG

3083453

Unavailable

15

Sleeve, Governor

3086518

$24.27

16

Gear, Governor

3086517

$80.94

17

Gauge, Oil

3086519

$32.37

17

Gauge, Oil

3086519

$32.37

18

Gasket

3086520

$8.89

18

Gasket

3086520

$8.89

19

Cover, Main Bearing (Incl. 20,22,23)

3086966

$129.51

20

Seal, Oil

3086516

$36.41

21

Bolt and Washer

3086522

$3.19

22

Bearing

3080108

$23.99

23

Bearing, Ball

3086947

$24.99

24

Stud

3082934

$10.39

25

Stud

3086513

$3.19

26

Guide, Valve

3086535

$36.41

27

Bolt, Flange

3086526

$6.39

28

Head, Cylinder (Incl. 24,25,26,29)

3086524

Unavailable

29

Stud

3086512

$3.19

30

Gasket, Head

3086525

Unavailable
