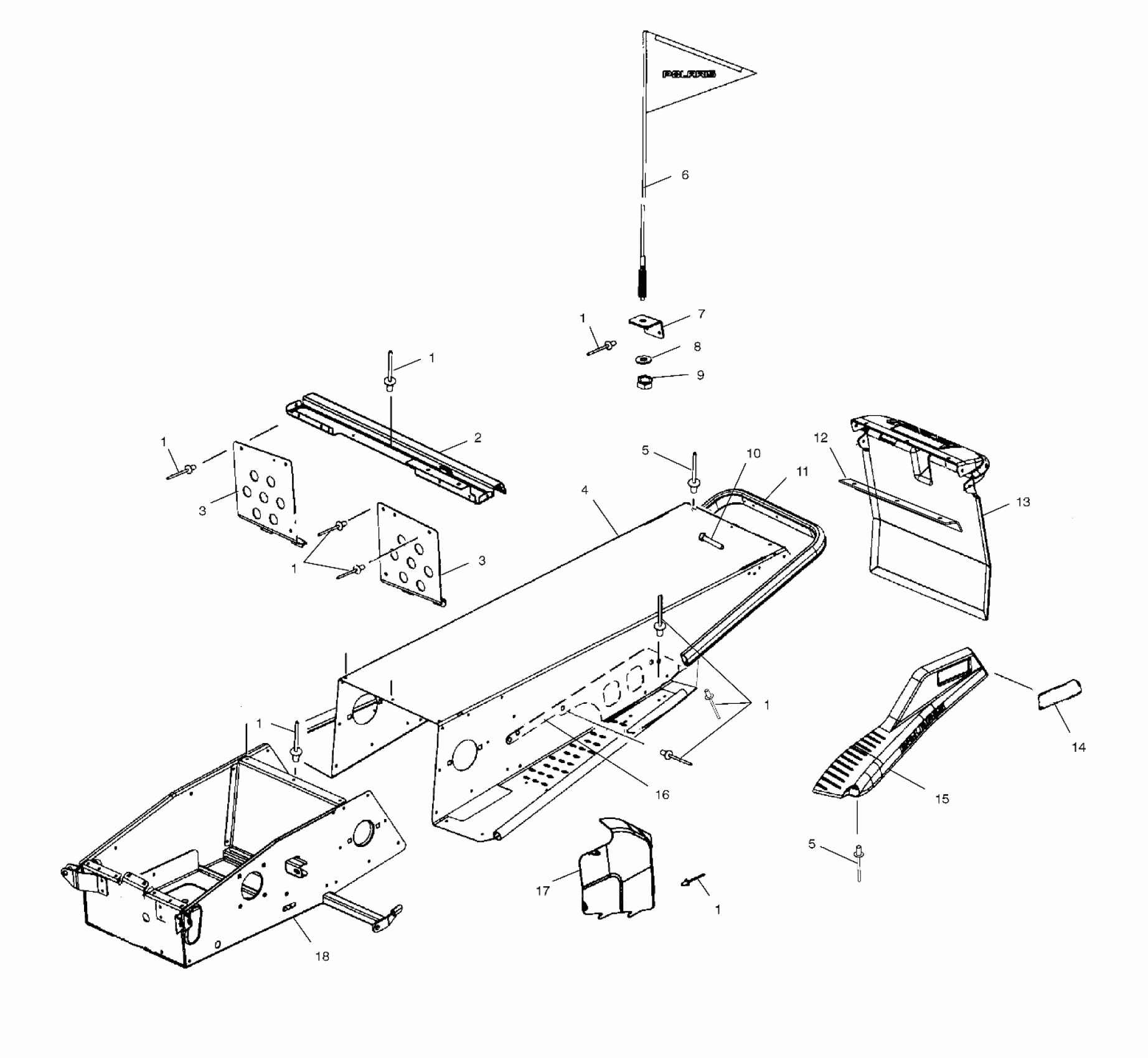

Polaris 120 XCR - S00WB1AS TUNNEL - S00WB1AS (4956195619A005) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

BKRT,PAN SUPPORT,REAR,BLK

5243862-067

$48.56

3

STOP,FOOT,LH,BLK

5243997-067

$52.60

3

STOP,FOOT,RH,BLK

5243998-067

$48.56

3

STOP,FOOT,LH,BLK

5243997-067

$52.60

3

STOP,FOOT,RH,BLK

5243998-067

$48.56

4

TUNNEL,ASM Substituted by 5243869 (incl. 11,16)

1013045

Unavailable

5

RIVET, BLIND(50)

7621467

$1.49

5

RIVET, BLIND(50)

7621467

$1.49

6

FLAG,VISUAL

2872428

$44.51

7

BRKT,FLAG MOUNT,BLK.

5244025-067

$24.27

8

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

9

NUT, JAM(10)

7542432

$3.99

10

SCREW(10)

7512068

$2.39

11

BUMPER,REAR

5243861

$60.70

12

BRKT,TUNNEL,REAR

5244387

$28.32

13

FLAP,SNOW/TUNNEL BACK Substituted by 5433494-1101

5433494

Unavailable

14

REFLECTOR ASM,RED

2670133

$5.75

15

SKIRT-SNOW,EDGE,LH,BLK Substituted by 2632443-070

5433519-070

$37.11

15

SKIRT-SNOW,EDGE,RH,BLK Substituted by 2632444-070

5433520-070

$55.56

16

PAD,SUSPENSION,LH,BLK

5243867-067

$28.32

16

PAD,SUSPENSION,RH,BLK

5243868-067

$28.32

17

GUARD-SPROCKET,BLK

5243972-067

$94.99

18

WELD-BULKHEAD,BLK

1013046-067

$315.99
