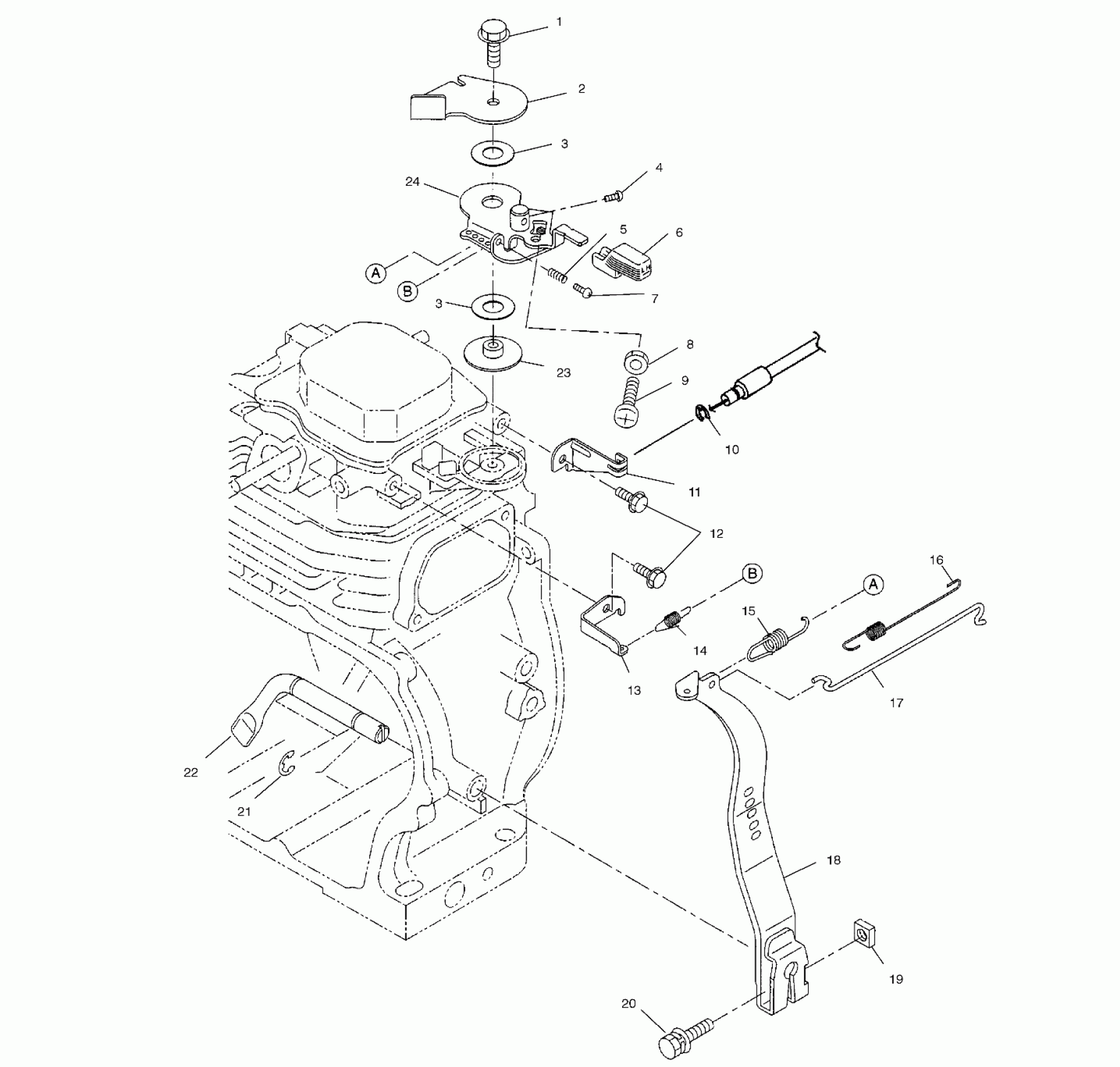

Polaris 120 XCR - S00WB1AS SPEED CONTROL / GOVERNOR - S00WB1AS (4956195619B007) Diagram

#

Description
Price

1

BOLT, FLANGE(10)

3084566

$3.19

2

PLATE,STOP

3086605

$12.94

3

WASHER,FRICTION

3086954

$8.79

3

WASHER,FRICTION

3086954

$8.79

4

Screw

3086609

$2.39

5

SPRING,IDLE SET

3086606

$7.27

6

KNOB,CONTROL,SPEED

3086604

Unavailable

7

SCREW,(10)

3081497

$2.39

8

Nut

3083073

$2.39

9

SCREW, PAN HD. Substituted by 3083784

3081600

Unavailable

10

RET.RING-1200-18 STPA

7556129

$3.99

11

BRACKET,WIRE

3086973

$9.70

12

BOLT,FLANGE(10)

3086125

$2.39

13

BRACKET,RETURN SPRING

3086862

Unavailable

14

SPRING,RETURN

3086956

$20.22

15

SPRING,GOVERNOR

3086599

$5.65

16

SPRING,ROD

3086597

Unavailable

17

ROD,GOVERNOR

3086596

$24.99

18

LEVER,GOVERNOR

3086594

$36.41

19

Nut

3086598

Unavailable

20

BOLT&WASHER ASM.

3082038

$3.99

21

CLIP(10)

3086053

$3.99

22

SHAFT,GOVERNOR

3086595

$28.32

23

Spacer

3086955

$27.99

24

SPEED CONTROL,ASM (Incl. 6)

3086944

$34.71
