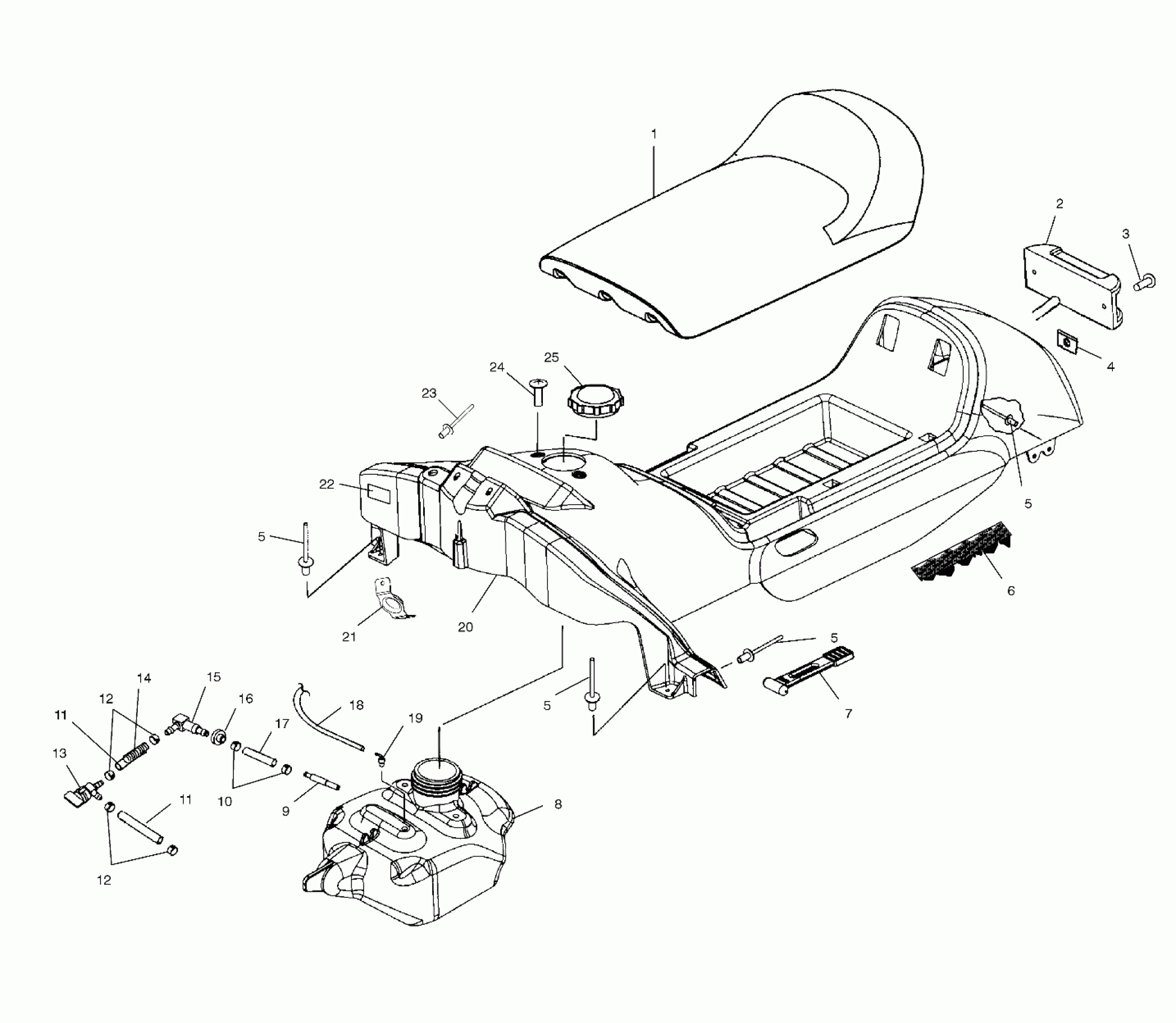

Polaris 120 XCR - S00WB1AS SEAT and GAS TANK - S00WB1AS (4956195619A006) Diagram

#

Description
Price

1

COVER,SEAT

2682533

Unavailable

1

ASM-SEAT CUSHION

2682534

Unavailable

2

TAILLIGHT,W/ HARNESS

2872427

$43.99

3

SCREW(10)

7512091

$3.99

4

NUT(10)

7670094

$5.59

5

RIVET, BLIND(50)

7621467

$1.49

5

RIVET, BLIND(50)

7621467

$1.49

5

RIVET, BLIND(50)

7621467

$1.49

5

RIVET, BLIND(50)

7621467

$1.49

6

PAD-BATTERY

5810290

$7.27

7

STRAP-AIRBOX TOP

5433150

$24.27

8

TANK,GAS ASM. (Incl. 9,10,15,16,)

2520171

$117.37

9

FUEL PICKUP,W/FILTER Substituted by 7052301

7052243

Unavailable

10

RING, COMPRESSION(10)

7080402

$1.60

11

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

11

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

12

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

12

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

13

VALVE-FUEL,PLASTIC 90�,1/4HOSE

7052249

$24.27

14

CONDUIT,CONVOL(6 CM) Substituted by 4010051-15

4010051-06

Unavailable

15

FITTING,1/4" 90� DEX

7052259

Unavailable

16

GROMMET-TANK FITTING(10)

7052028

$6.39

17

FUEL LINE-ESTER Substituted by 8350019-160

8350019-600

Unavailable

18

FUELLINE,3MMX7MM

8450061-600

Unavailable

19

FITTING,90 DEG,1/8,(10)

7052095

$4.79

20

CONSOLE,SEAT/TANK COVER

2632154

Unavailable

21

GUIDE-RECOIL

5243049

$9.70

22

DECAL-FUEL SHUT OFF

7078317

Unavailable

23

RIVET, POP(50)

7621330

$1.49

24

SCREW(10)

7515148

$4.79

25

GASKET-GAS CAP

5810144

$5.59

25

CAP, GAS, (BLACK)

5430725

$24.27
