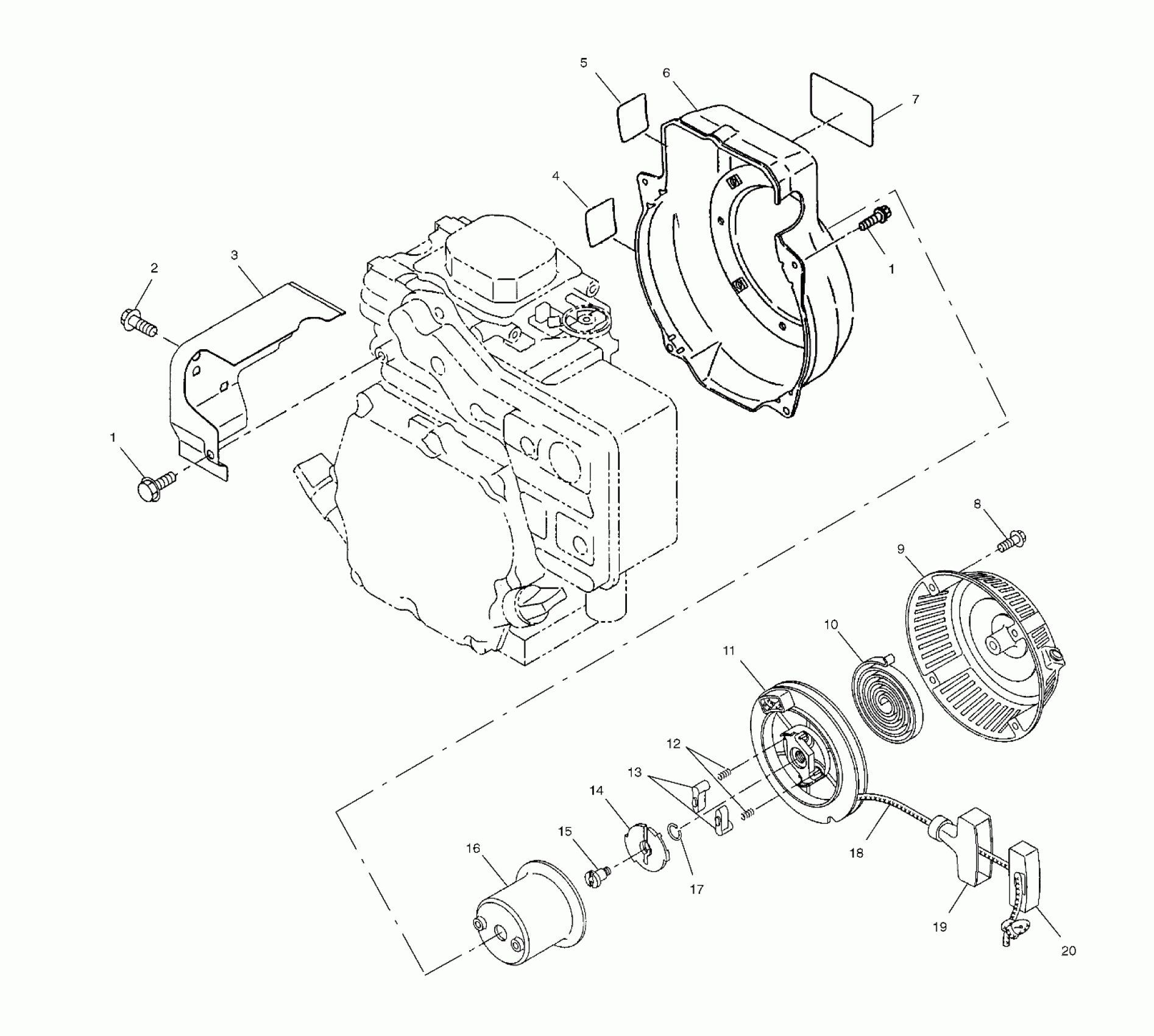

Polaris 120 XCR - S00WB1AS RECOIL STARTER/BLOWER HOUSING - S00WB1AS (4956195619B006) Diagram

#

Description
Price

1

Bolt, Flange

3087035

$3.85

1

Bolt, Flange

3087035

$3.85

2

Bolt, Flange

3086125

$2.39

3

Cover, Head

3086622

$24.27

4

Label, Warning

3086638

Unavailable

5

LABEL, WARNING

3086960

Unavailable

6

Asm., Housing 2, Blower

3086957

$95.99

7

Decal, Engine Cover

7078526

Unavailable

8

Bolt, Flange

3085359

$2.39

9

Asm., Recoil Starter [Incl. 8-16]

3086958

$174.03

10

Spring, Spiral

3086625

$36.41

11

Reel

3086626

$48.56

12

Spring, Return

3086865

$6.46

13

Ratchet

3086629

$20.22

14

Guide, Ratchet

3086632

$20.22

15

Screw, Set

3086634

$8.79

16

Pulley, Starter

3086959

$32.37

17

Spring, Friction

3086630

$6.46

18

Rope, Starter

2870621

$34.99

19

Knob, Starter

3086628

$20.22

20

Cap, Knob

3086866

$20.22
