Description

Price

1

SPACER-CARRIER WHEEL

5333826

$15.99

1

SPACER-CARRIER WHEEL

5333826

$15.99

2

WHEEL-CARRIER (Incl. 5,4)

1541403

$48.56

2

WHEEL-CARRIER (Incl. 5,4)

1541403

$48.56

3

SHAFT-CARRIER

5132254

$76.89

4

RING-RETAINING

7710444

$8.79

4

RING-RETAINING

7710444

$8.79

5

Bearing

3514012

Unavailable

5

Bearing

3514012

Unavailable

6

STRAP-LIMITER,REAR

5811954

$32.37

7

SCR-5/16-18X.75,TX,GR5Y-PATCH

7517744

$2.63

7

SCR-5/16-18X.75,TX,GR5Y-PATCH

7517744

$2.63

7

SCR-5/16-18X.75,TX,GR5Y-PATCH

7517744

$2.63

8

WASHER(10)

7555960

$3.99

8

WASHER(10)

7555960

$3.99

9

NUT,NYLOC,(10)

7542344

$3.99

9

NUT,NYLOC,(10)

7542344

$3.99

10

WASHER(10)

7555726

$1.59

11

SCREW,(10)

7517227

$7.19

12

RIVET(50)

7621512

$1.49

13

SHAFT-IDLER,REAR

5132253

$56.65

14

BRKT,IDLER,ADJ

5241628

$39.99

15

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

16

RAIL,XTRA LITE 68",LH,ASM.

1541415

$354.99

16

RAIL,XTRA LITE 68",RH,ASM.

1541416

$354.99

17

SPACER-IDLER 1 1/8 OD X.834 ID

5333932

$9.52

18

WHEEL SCROLLED,5.35,20MMIR,ASM. (Incl. 4,5)

1590279-293

$44.51

19

WASHER(10) Substituted by 7556130

7571629

Unavailable

20

SCREW(10)

7512492

$1.49

21

BOLT(10)

7512312

$1.49

22

BLOCK-TOE,BLK Substituted by 5434124-070

5433623-070

Unavailable

23

BOLT(10)

7515317

$4.79

23

BOLT(10)

7515317

$4.79

24

LOCK WASHER(10)

7552901

$1.49

24

LOCK WASHER(10)

7552901

$1.49

25

WASHER(10)

7555958

$4.99

25

WASHER(10)

7555958

$4.99

26

PIN-HOOD HINGE(10)

7661621

$3.99

27

SLIDER,BLK. Substituted by 1521557-309

5521529

$11.59

28

BUMPER,JOUNCE FRONT

5521499

$8.89

29

SCREW(10)

7515199

$1.49

30

NUT, PUSH-ON(10)

7670068

$2.39

31

SHAFT-LOWER

5132256

Unavailable

31

SHAFT-LOWER

5132256

Unavailable

32

STRAP-LIMITER,FRONT

5811953

$32.37

33

SHAFT-UPPER TORQUE ARM

5132257

$40.46

33

SHAFT-UPPER TORQUE ARM

5132257

$40.46

34

SPRING-TORSION,LH,BLK

7041844-067

$84.98

34

SPRING-TORSION,RH,BLK

7041845-067

$84.98

35

SLEEVE-TORSION SPRING

5433507

$8.89

36

TORQUE ARM,BLK

1541398-067

$249.99

37

FITTING-LUBRICATION 1/4-28

7080424

$4.79

38

SCREW(10)

7512307

$3.99

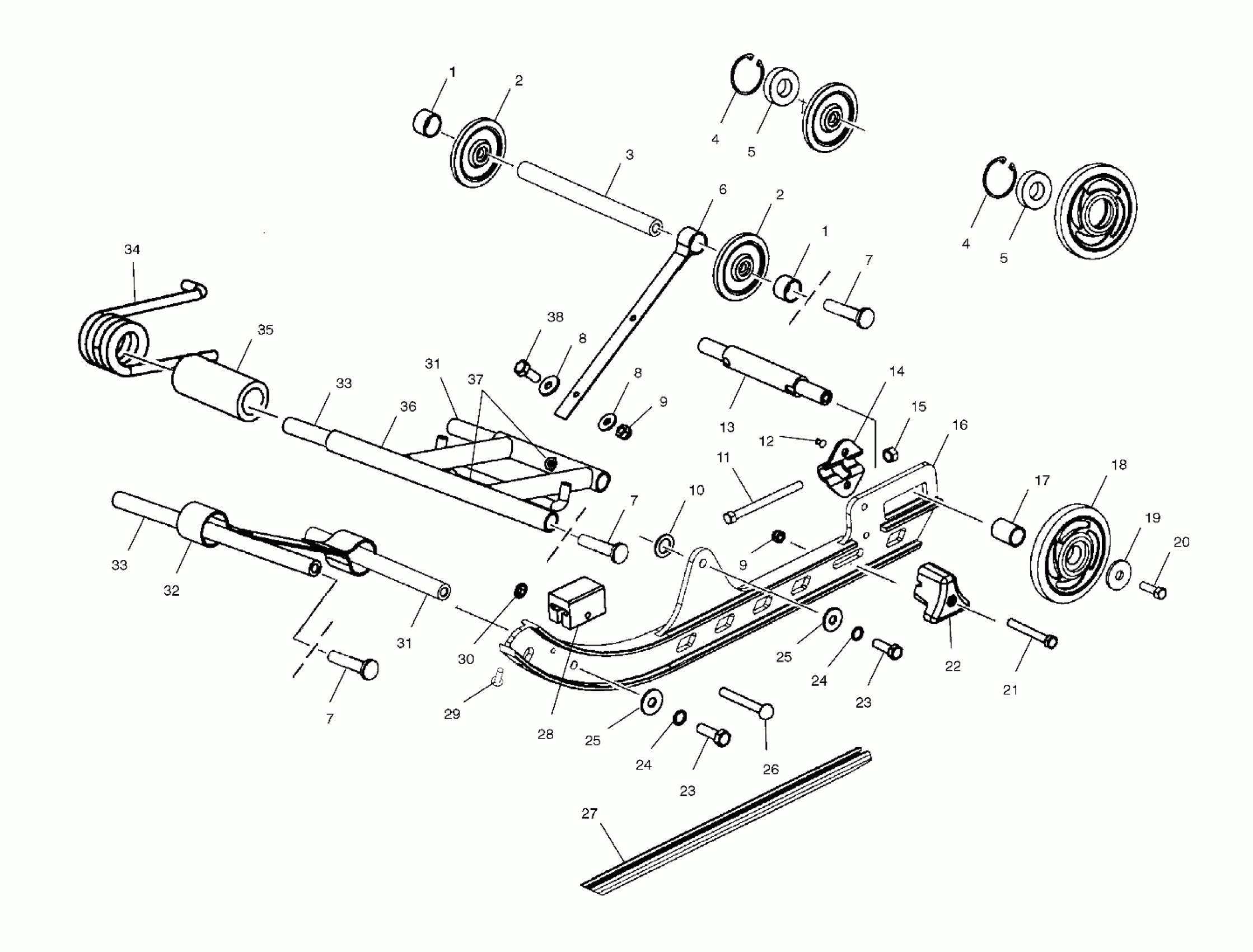

Polaris 120 XCR - S00WB1AS REAR SUSPENSION - S00WB1AS (4956195619A013) Diagram
