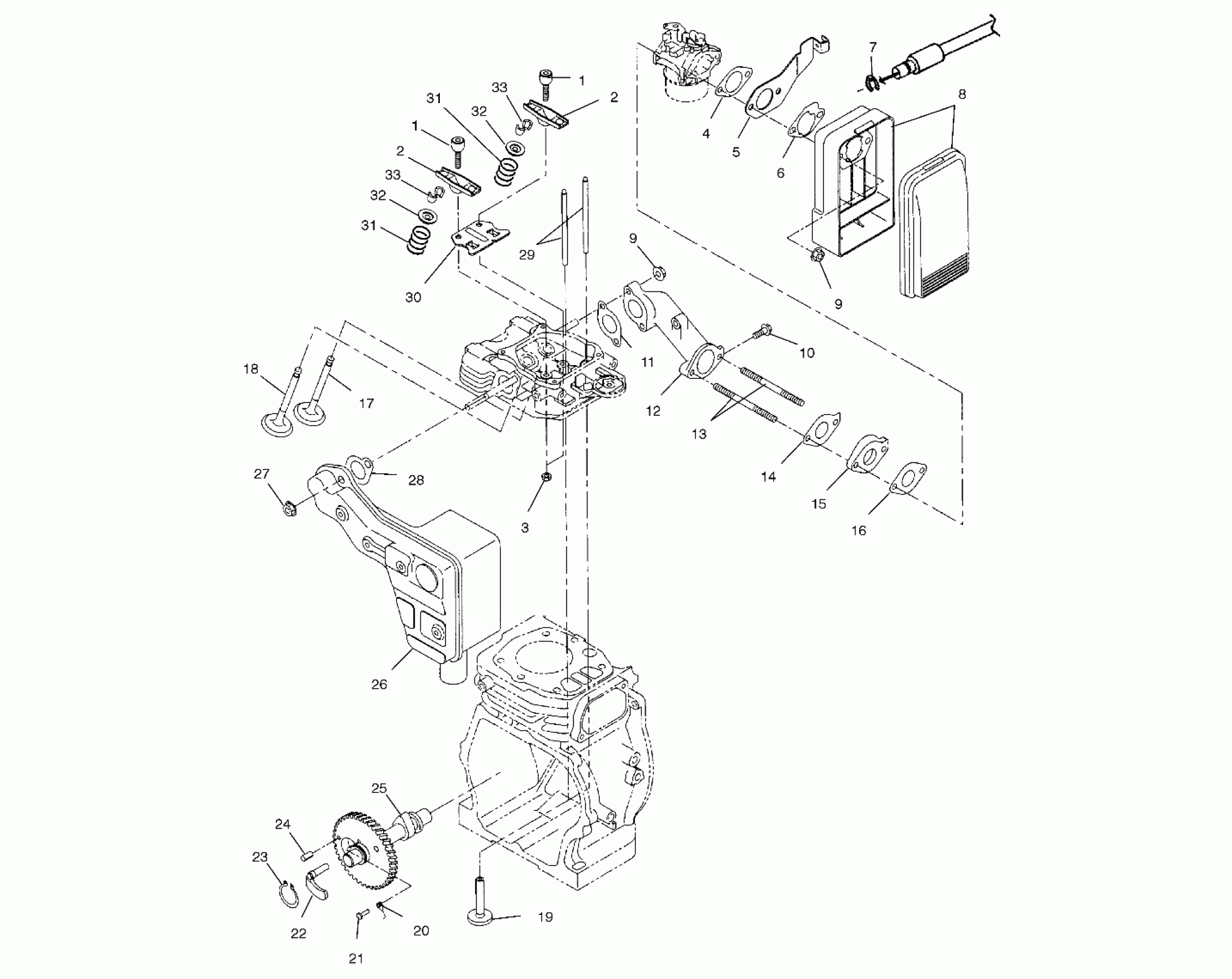

Polaris 120 XCR - S00WB1AS INTAKE / EXHAUST - S00WB1AS (4956195619B009) Diagram

#

Description
Price

1

BOLT,PIVOT

3086570

$4.84

1

BOLT,PIVOT

3086570

$4.84

2

ARM,ROCKER Substituted by 3087013

3086569

Unavailable

2

ARM,ROCKER Substituted by 3087013

3086569

Unavailable

3

NUT(10)

3084912

$3.99

4

GASKET,2,INSULATOR

3086951

$1.49

5

BRACKET,CHOKE

3086861

Unavailable

6

GASKET,INTAKE

3086583

Unavailable

7

RET.RING-1200-18 STPA

7556129

$3.99

8

AIRCLEANER,ASM

3086581

Unavailable

9

NUT, FLANGE(10)

3083856

$2.39

9

NUT, FLANGE(10)

3083856

$2.39

10

BOLT,FLANGE

3086591

$3.19

11

GASKET,INTAKE Substituted by 3086950

3086590

Unavailable

12

PIPE,INTAKE (Incl. 13)

3086967

$53.59

13

Stud

3086968

$8.79

14

GASKET,INTAKE

3086589

$4.03

15

Insulator

3086588

$7.99

16

Gasket

3086592

$2.83

17

VALVE,INTAKE

3086565

$36.41

18

VALVE,EXHAUST

3086566

$52.60

19

Tappet

3086562

$48.56

20

PIN-SPRING

3086987

$11.99

21

SPRING-RETURN

3086986

$20.22

22

LEVER,RELEASE

3086557

$32.37

23

RING,SNAP

3086559

$3.19

24

PIN,SPRING

3086558

$2.39

25

CAMSHAFT (Incl. 22,23,24)

3086554

$164.99

26

MUFFLER,ASM Substituted by 3086572

3086972

Unavailable

27

Nut

3086575

$4.23

28

GASKET,EXHAUST

3086574

$1.60

29

ROD,PUSH

3086568

$44.99

30

PLATE,GUIDE

3086571

Unavailable

31

SPRING,VALVE

3086563

$32.37

31

SPRING,VALVE

3086563

$32.37

32

RETAINER,SPRING

3086564

$10.63

32

RETAINER,SPRING

3086564

$10.63

33

VALVE,COLLET

3086567

$8.89

33

VALVE,COLLET

3086567

$8.89
