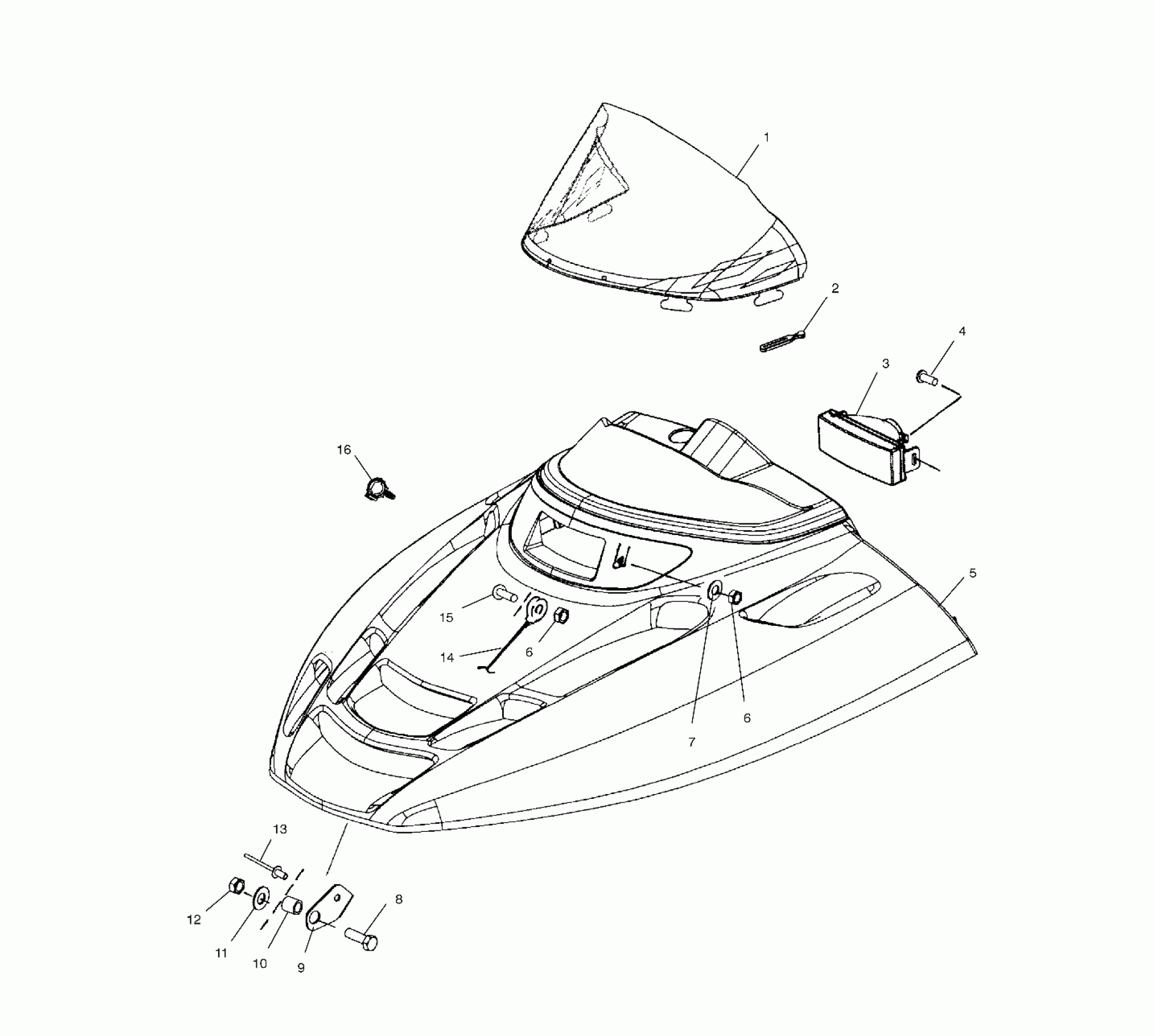

Polaris 120 XCR - S00WB1AS HOOD - S00WB1AS (4956195619A008) Diagram

#

Description
Price

1

WINDSHIELD-XJR

5433477

$114.99

2

RETAINER,WINDSHIELD,(10)

5410970

$1.49

3

BULB/HARNESS-ASM,35W,HI BEAM Substituted by 4010204

4010207

Unavailable

3

HEADLIGHT,SINGLE BEAM

4010341

$82.29

4

BOLT,CARR,10-24X5/8,GR2-Y(10)

7517703

$3.99

5

HOOD,XCR 120,RED

5433525-293

$399.99

6

NUT(10)

7541925

$1.49

6

NUT(10)

7541925

$1.49

7

WASHER, FLAT(10)

7558201

$5.79

8

SCREW(10)

7515159

$4.79

9

BRKT-HINGE SUPPORT HOOD,LH

5244023

$5.75

9

BRKT-HINGE SUPPORT HOOD,RH

5244024

$4.78

10

SPACER-HOOD HINGE

5333835

Unavailable

11

WASHER,WROUGHT(10)

7558302

$1.59

12

NUT-LOCK(10)

7542122

$1.49

13

RIVET, BLIND(50)

7621467

$1.49

14

CABLE,HOOD

7080861

$34.99

15

SCREW(10)

7511989

Unavailable

16

CLIP,SILENCER,(10)

7670102

$2.39
