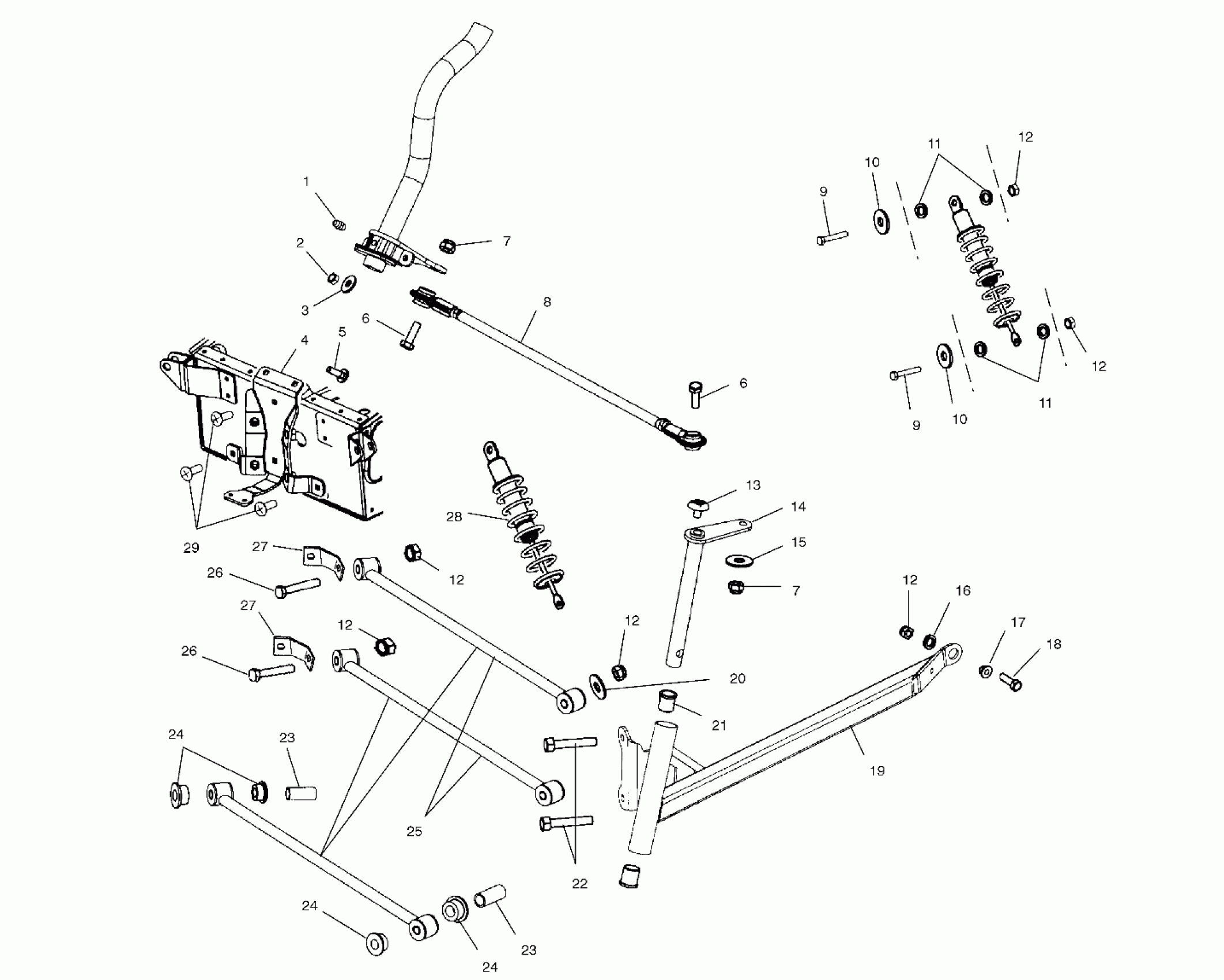

Polaris 120 XCR - S00WB1AS FRONT SUSPENSION and STEERING - S00WB1AS (4956195619A012) Diagram

#

Description
Price

1

ZERK,FITTING,THREADED(10)

7080433

$1.49

2

NUT-LOCK(10)

7542122

$1.49

3

WASHER(10)

7558301

$1.49

4

BRKT,RAD.ROD/STRPSTMNT,BLK Substituted by 1820802-067

5243858-067

$32.37

5

BOLT(10)

7512193

$2.39

6

BOLT(10)

7515534

$4.79

6

BOLT(10)

7515534

$4.79

7

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

7

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

8

ASM-TIE ROD

1820767

$36.41

9

BOLT,SHLDR,3/8X3/4X5/16

7517745

$8.79

9

BOLT,SHLDR,3/8X3/4X5/16

7517745

$8.79

10

WASHER,.380X.813X.150

7556160

$3.99

10

WASHER,.380X.813X.150

7556160

$3.99

11

BUSHING-SHOCK MOUNT

5433624

$2.39

11

BUSHING-SHOCK MOUNT

5433624

$2.39

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

CAP,SPINDLE Substituted by 5433481-070

5433481

Unavailable

14

Spindle

1820764

$125.46

15

WASHER WROUGHT(10)

7558403

$4.79

16

BUSHING-.78X.50X.134 EUROTHANE

5433593

Unavailable

17

BUSHING-.75 X .325,SS

5132329

$11.99

18

SCREW(10)

7512310

$2.39

19

TRAIL ARM,LH,RED

1820774-293

Unavailable

19

TRAIL ARM,RH,RED

1820775-293

Unavailable

20

WASHER(10)

7555734

$1.49

21

BUSHING,SPINDLE,120XCR

3514343

$15.99

22

BOLT(10)

7512329

$3.99

23

SPACER-.437X.322X.945

5333834

$6.39

23

SPACER-.437X.322X.945

5333834

$6.39

24

BUSHING-RAD ROD

5433547

$6.39

24

BUSHING-RAD ROD

5433547

$6.39

24

BUSHING-RAD ROD

5433547

$6.39

25

RADIUS ROD,RED

1820780-293

$60.70

26

BOLT,5/16-18X13/4(10)

7517778

$3.99

26

BOLT,5/16-18X13/4(10)

7517778

$3.99

27

BRKT,SUPPORT,RADROD,BLK

5244330-067

$12.99

27

BRKT,SUPPORT,RADROD,BLK

5244330-067

$12.99

28

SHOCK,IFS,RED

1820768-293

Unavailable

29

BOLT(10)

7512193

$2.39
