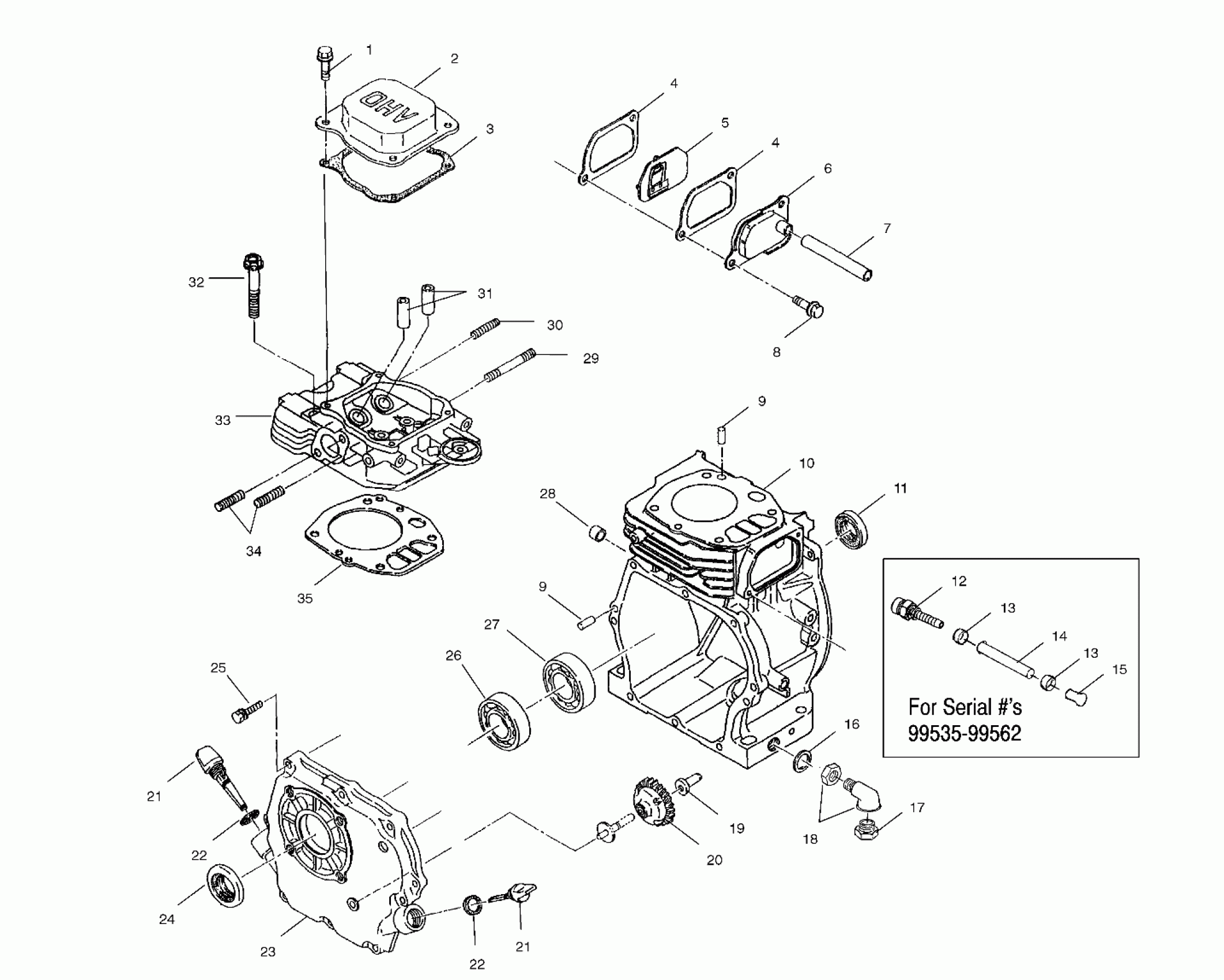

Polaris 120 XCR - S00WB1AS CRANKCASE - S00WB1AS (4956195619B004) Diagram

#

Description
Price

1

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

2

CVR,ROCKER

3086527

$40.46

3

GASKET,ROCKER COVER

3086528

Unavailable

4

GASKET,BREATHER COVER

3086531

$8.89

4

GASKET,BREATHER COVER

3086531

$8.89

5

PLATE,BREATHER

3086530

$24.27

6

CVR,BREATHER

3086529

$34.99

7

PIPE,RUBBER

3086532

$24.27

8

BOLT,FLANGE(10)

3086125

$2.39

9

PIN,DOWEL(10) Substituted by 3080103

3083054

Unavailable

9

PIN,DOWEL(10) Substituted by 3080103

3083054

Unavailable

10

CRANKCASE (Inc. 9,10,11,26,28)

3086946

Unavailable

11

SEAL,OIL,CRANKCASE

3086510

$40.46

12

FITTING-14MMX1.5-1/4 BARB

7052266

Unavailable

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

14

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

15

PIN,CLEVIS

7661037

$5.59

16

BONDED SEAL,14MM,OIL DRAIN

7556152

$11.59

17

PLUG(10)

7052115

$5.65

18

DESC NOT_AVAILABLE (Incl. nut)

2540078

Unavailable

19

SLEEVE,GOVERNOR

3086518

$24.27

20

GEAR,GOVERNOR

3086517

$80.94

21

GAUGE,OIL

3086519

$32.37

21

GAUGE,OIL

3086519

$32.37

22

GASKET,OIL GUAGE

3086520

$8.89

22

GASKET,OIL GUAGE

3086520

$8.89

23

COVER,MAIN BEARING (Inc. 24,26,27)

3086966

$129.51

24

SEAL,OIL

3086516

$36.41

25

Bolt and Washer

3086522

$3.19

26

Bearing

3080108

$23.99

27

BEARING,BALL

3086947

$24.99

28

PIPE [No Longer Available]

3086511

Unavailable

29

Stud

3082934

$10.39

30

Stud

3086513

$3.19

31

GUIDE,VALVE

3086535

$36.41

32

BOLT,FLANGE

3086526

$6.39

33

HEAD,CYLINDER (Incl. 34,29,30,31)

3086524

Unavailable

34

Stud

3086512

$3.19

35

GASKET,HEAD

3086525

Unavailable
