SUSPENSION, REAR ASM. - J23FBLXXXA/FBRXXXA (C602341)

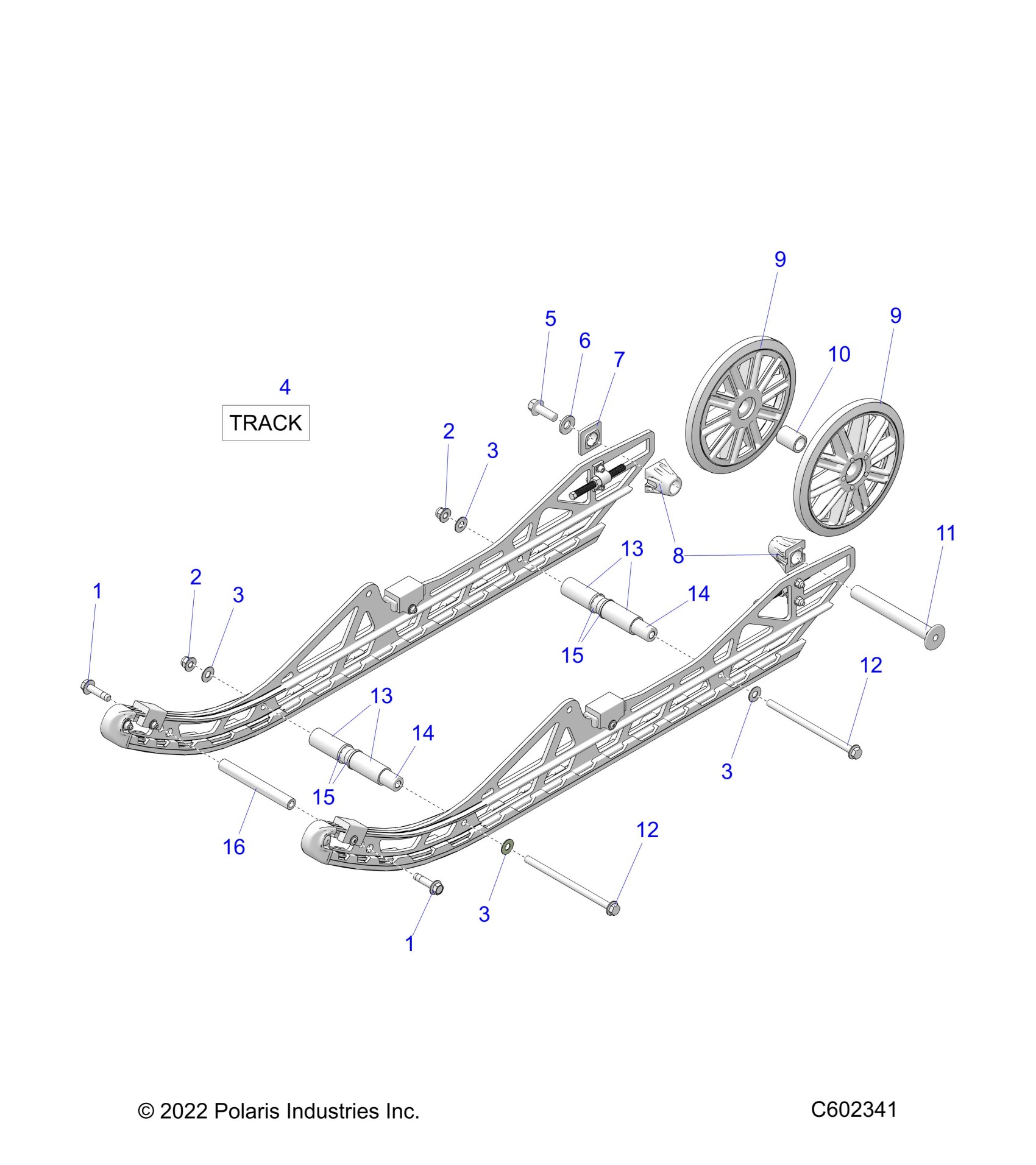

Polaris 120 R (CARRYOVER) (2023 SUSPENSION, REAR ASM. - J23FBLXXXA/FBRXXXA (C602341) Diagram
#
Description
Price
1
SCR-HXFL M10X1.5X40 10.9 ZB P8
7521118
$3.19
1
SCR-HXFL M10X1.5X40 10.9 ZB P8
7521118
$3.19
2
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
2
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
3
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
3
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
3
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
3
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
4
TRACK-120X10 TSLD RACE
5417210
Unavailable
5
SCR-M12X1.75X35 HXFL ZOD P30
7520123
$8.79
6
WSHR-DOMED 29X13X3 ZC DIN6796
7556929
$3.99
7
SPACER-IDLER
5436496
$6.39
8
SPACER-IDLER
5432535
$11.99
9
WHEEL-REAR 8.5 6004 BLK [INCL. BEARING AND RETAINING RING]
1590640
Unavailable
9
RING-RETAINING [1 PER WHEEL]
7710444
$8.79
9
BEARING [1 PER WHEEL]
3514384
$19.84
9
WHEEL-REAR 8.5 6004 BLK [INCL. BEARING AND RETAINING RING]
1590640
Unavailable
9
RING-RETAINING [1 PER WHEEL]
7710444
$8.79
9
BEARING [1 PER WHEEL]
3514384
$19.84
10
SPACER-AXLE REAR CENTER
5143069
Unavailable
11
AXLE-REAR NARROW
5144508
Unavailable
12
SCR-HXFL-M10X1.5X175,8.8,ZY3
7520971
$10.39
12
SCR-HXFL-M10X1.5X175,8.8,ZY3
7520971
$10.39
13
SPACER-SHOCK LOWER NARROW
5522334
Unavailable
13
SPACER-SHOCK LOWER NARROW
5522334
Unavailable
14
SHAFT-LOWER SHOCK NAR
5144509
Unavailable
14
SHAFT-LOWER SHOCK NAR
5144509
Unavailable
15
BUSHING-SHOCK FLANGE CHAMFER
5459489
Unavailable
15
BUSHING-SHOCK FLANGE CHAMFER
5459489
Unavailable
16
SHAFT-CROSS RAIL FRONT NARROW
5143700
Unavailable
