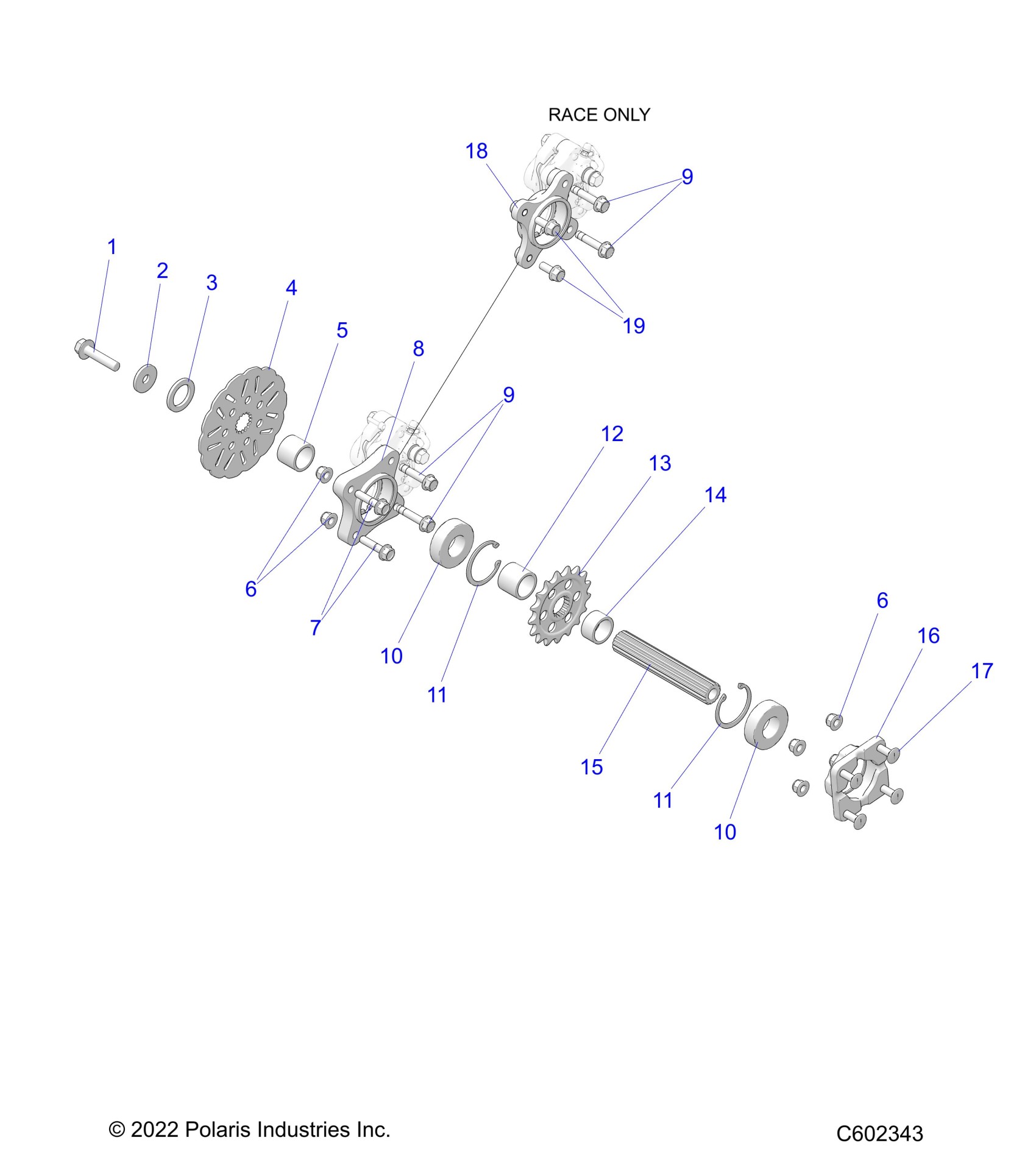

Polaris 120 R (CARRYOVER) (2023- DRIVE TRAIN, JACKSHAFT AND BRAKE DISC - J23FBLXXXA/FBRXXXA (C602343) Diagram

#

Description

Price

1

SCR-HXFL-M10X1.25X45 ZOD P30

7520187

$3.99

2

WSHR-10.5X31.8X3.43 ZOD HRD

7556800

$7.19

3

BUSHING-1X1 1/2X .145

7556162

$3.99

4

DISC-BRAKE SPLINED

1913425

Unavailable

5

TUBE-SPACER BRAKE NO HUB

5142620

Unavailable

6

NUT- M8X1.25, FLG, NYLOC-OLIVE D QTY. 4, RACE ONLY

7547332

$3.99

6

NUT- M8X1.25, FLG, NYLOC-OLIVE D QTY. 4, RACE ONLY

7547332

$3.99

7

SCR-HXFL-M8X1.25X35 8.8 ZODv

7519052

$1.59

8

ASM-BEARING FRAME SINGLE [SX] [INCL. 10,11, AND HOUSING]

1523594

Unavailable

9

SCR-HXFL-M8X1.25X40 8.8 ZODP30

7519267

$3.99

9

SCR-HXFL-M8X1.25X40 8.8 ZODP30

7519267

$3.99

10

BEARING

3514308

Unavailable

10

BEARING

3514308

Unavailable

11

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

11

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

12

TUBE-SPACER RH FRAME

5142621

Unavailable

13

SPROCKET-17T 520 SLW HD

3222362

Unavailable

13

SPROCKET-18T 520 SLW HD [OPT]

3222363

Unavailable

13

SPROCKET-16T 520 [OPT]

3222291

Unavailable

14

TUBE-SPACER CENTER NARROW

5143061

Unavailable

15

JACKSHAFT-10IN WIDE SOLID HT

6231162

Unavailable

16

ASM-BEARING, SINGLE [INCL. 10,11, AND HOUSING]

1523108

Unavailable

17

SCR-RHCAR-M8X1.25X25 8.8 ZOD

7520297

$4.99

18

ASM-BEARING FRAME SNGL LW [RACE] [INCL. 10,11, AND HOUSING]

1523881

Unavailable

19

SCR-HXFL-M8X1.25X20 ZB P30

7521186

$3.19
