DRIVE TRAIN, CHAIN DRIVE, RACE - J23FBRXXXA (C602529)

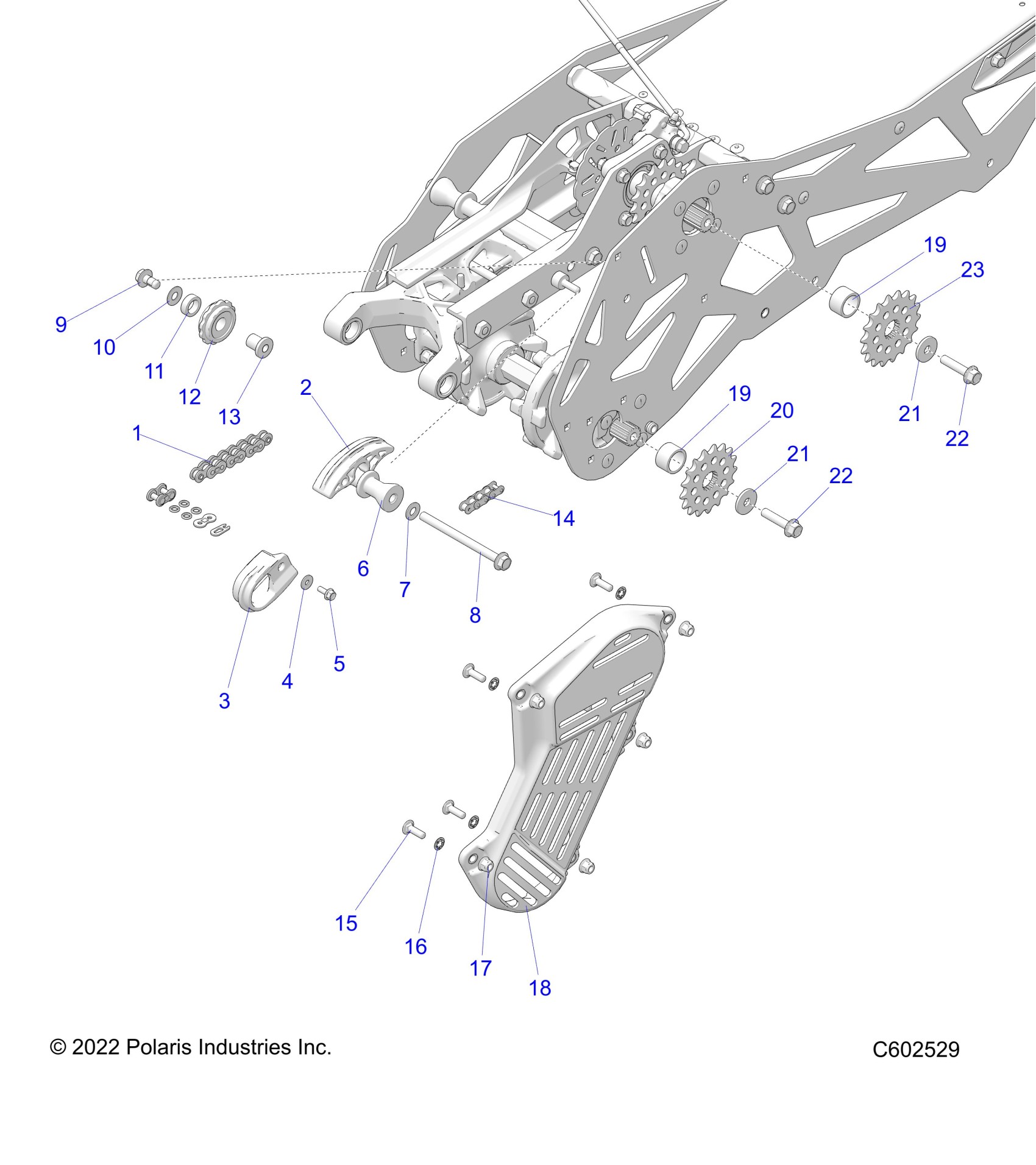

Polaris 120 R (CARRYOVER) (2023 DRIVE TRAIN, CHAIN DRIVE, RACE - J23FBRXXXA (C602529) Diagram
#
Description
Price
1
CHAIN-ENGINE 520 70 RACE
3222344
Unavailable
1
LINK-MASTER 520P SKJ
3222290
Unavailable
2
SLIDER-CHAIN FRAME PK
5457966
Unavailable
3
K-CHAIN SLIDER FRONT SVC [INCL. 3-5]
2208727
Unavailable
3
INSERT-COMP LIMIT M6X6
7557090
Unavailable
4
WSHR-6.4X18.0X1.6 ZC
7556565
$2.39
5
SCR-HXFL-M6X1.0X16 8.8 ZYL NYL
7519236
$3.19
6
SPACER-TUNNEL SIDE FRT NARROW
5143057
Unavailable
7
WSHR-10.5X22.0X1.6 SPC
7556155
$5.22
8
SCR-HH-M10X1.5X110 10.9 ZC
7521204
Unavailable
9
SCR-HXFL-M10X1.5X20 8.8 Z NYL
7518460
$1.59
10
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
11
SPACER-CHAIN CASE ROLLER
5141525
Unavailable
12
IDLER-SPROCKET CHAIN CASE
5458931
Unavailable
13
MOUNT-CHAIN CASE ROLLER
5141351
Unavailable
14
CHAIN-CASE 520 52 CONT RACE
3222343
Unavailable
15
SCR-RHCAR-M8X1.25X25 8.8 ZOD
7520297
$4.99
16
RETAINER-BOLT PUSHNUT M8X1.25
7710871
Unavailable
17
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
18
ASM-COVER CHAINCASE VENTED
2637762
Unavailable
19
TUBE-SPACER LH
5141032
Unavailable
19
TUBE-SPACER LH
5141032
Unavailable
20
SPROCKET-17T 520 SLW HD
3222362
Unavailable
20
SPROCKET-18T 520 SLW HD [OPTION]
3222363
Unavailable
20
SPROCKET-SPLINED 16T 520 [OPTION]
3222291
Unavailable
21
WSHR-10.5X31.8X3.43 ZOD HRD
7556800
$7.19
21
WSHR-10.5X31.8X3.43 ZOD HRD
7556800
$7.19
22
SCR-HXFL-M10X1.25X45 ZOD P30
7520187
$3.99
22
SCR-HXFL-M10X1.25X45 ZOD P30
7520187
$3.99
23
SPROCKET-18T 520 SLW HD
3222363
Unavailable
23
SPROCKET-17T 520 SLW HD [OPT]
3222362
Unavailable
23
SPROCKET-SPLINED 16T 520 [OPT]
3222291
Unavailable
