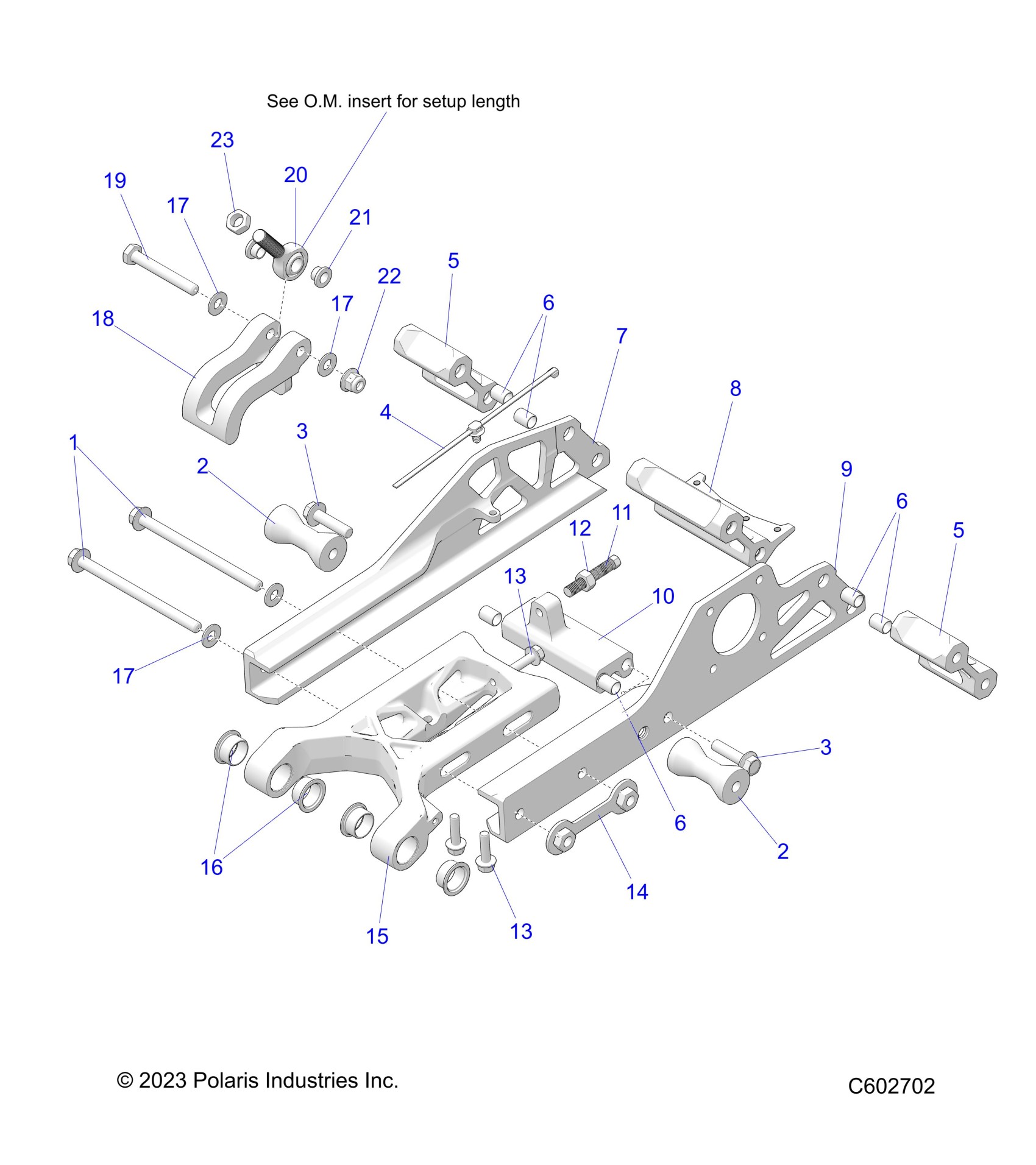

Polaris 120 R (CARRYOVER) (2023- CHASSIS, SUB FRAME ASM., RACE - J23FBRXXXA (C602702) Diagram

#

Description

Price

1

SCR-HXFL-M10X1.5X145,8.8,ZPC

7519954

Unavailable

2

SPACER-TUNNEL SIDE FRT NARROW

5143057

Unavailable

2

SPACER-TUNNEL SIDE FRT NARROW

5143057

Unavailable

3

SCR-HXFL M10X1.5X40 10.9 ZB P8

7521118

$3.19

3

SCR-HXFL M10X1.5X40 10.9 ZB P8

7521118

$3.19

4

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

5

BRACE-SUBFRAME SIDE REAR NAR

5143056

Unavailable

5

BRACE-SUBFRAME SIDE REAR NAR

5143056

Unavailable

6

DWL-HOL 13X16.5

7662404

Unavailable

6

DWL-HOL 13X16.5

7662404

Unavailable

6

DWL-HOL 13X16.5

7662404

Unavailable

7

FRAME-SUB MACH SHORT RH

5142706

Unavailable

8

BRACE-SUBFRAME CNTR R TAIL LWT

5143298

Unavailable

9

FRAME-SUB MACH SHORT LH

5142705

Unavailable

10

BRACE-SUBFRM CENTER TSS RELO

5143988

Unavailable

11

SCR-HH-M10X1.5X55,8.8,ZOD

7527838

Unavailable

12

NUT-HEX-M10X1.5 8 ZOD

7547707

$4.99

13

SCREW-HXFL-M8X1.25X30 10.9 ZPB

7518884

$1.99

13

SCREW-HXFL-M8X1.25X30 10.9 ZPB

7518884

$1.99

14

NUT PLATE, MBLK

1025326-458

Unavailable

15

FRAME-MOUNT FRONT MACH

5141041

Unavailable

16

BUSHING-FRAME MOUNT

5453986

Unavailable

17

WASHR-10.5X22X1.6 SPC

7556155

$5.22

17

WASHR-10.5X22X1.6 SPC

7556155

$5.22

17

WASHR-10.5X22X1.6 SPC

7556155

$5.22

18

BRKT-RELOCATE TSS

5143987

Unavailable

19

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$5.59

20

ROD END-STRUT TSS 1/2"-20C-MT

7061245

Unavailable

21

RDCR-LOW STRUT 0.100W 10MMID

5143986

Unavailable

22

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

23

NUT-1/2-20 HX JM-Y

7542711

$2.39
