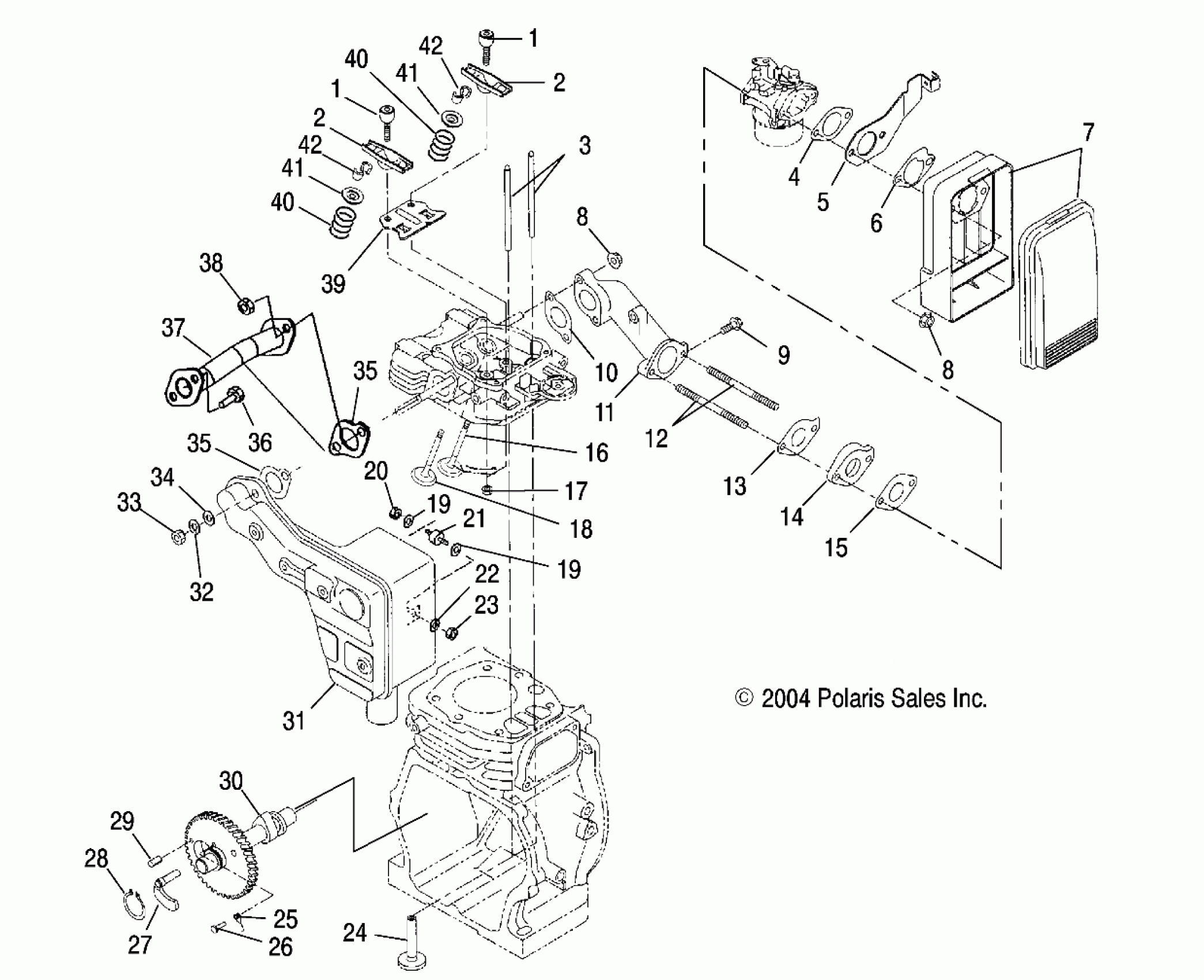

Polaris 120 PRO X - S05WB1AS INTAKE and EXHAUST - S05WB1AS/AE (4992969296B04) Diagram

#

Description
Price

1

Bolt, Pivot

3086570

$4.84

1

Bolt, Pivot

3086570

$4.84

2

Arm, Rocker

3087013

$28.32

2

Arm, Rocker

3087013

$28.32

3

Rod, Push

3086568

$44.99

4

Gasket, Insulator

3086951

$1.49

5

Bracket, Choke

3086861

Unavailable

6

Gasket, Air Cleaner

3086583

Unavailable

7

Cleaner, Air

3086581

Unavailable

8

NUT, FLANGE

3083856

$2.39

8

NUT, FLANGE

3083856

$2.39

9

Bolt, Flange

3086591

$3.19

10

Gasket, Insulator

3088207

$4.03

11

Pipe, Intake [Incl. 11]

3087161

$40.46

12

Stud

3086968

$8.79

13

Gasket

3086589

$4.03

14

Insulator

3086588

$7.99

15

Gasket

3086592

$2.83

16

Valve, Intake

3086565

$36.41

17

Nut

3084912

$3.99

18

Valve, Exhaust

3086566

$52.60

19

Washer, Fiber

7556144

$3.99

19

Washer, Fiber

7556144

$3.99

20

Nut, FLEXLOC

7542103

$5.59

21

MOUNT, CARBURETOR

3110050

$12.99

22

Washer, Flat

7558301

$1.49

23

Nut

7542101

$3.99

24

Tappet

3086562

$48.56

25

Spring, Return

3086986

$20.22

26

Pin, Spring

3086987

$11.99

27

Lever, Release

3086557

$32.37

28

Ring, Snap

3086559

$3.19

29

Pin, Spring

3086558

$2.39

30

Camshaft [Incl. 26,27,28]

3086554

$164.99

31

Asm., Muffler

3089423

$169.99

32

WASHER, SPRING LOCK

7552901

$1.49

33

NUT

7542301

$1.59

34

WASHER

7555954

$4.79

35

Gasket

3086574

$1.60

35

Gasket

3086574

$1.60

36

Bolt

7512310

$2.39

37

Headpipe

1261014-029

$48.56

38

Nut

3086575

$4.23

39

Plate, Guide

3086571

Unavailable

40

Spring, Valve

3086563

$32.37

40

Spring, Valve

3086563

$32.37

41

Retainer, Spring

3088206

$3.99

41

Retainer, Spring

3088206

$3.99

42

Valve, Collet

3086567

$8.89

42

Valve, Collet

3086567

$8.89
