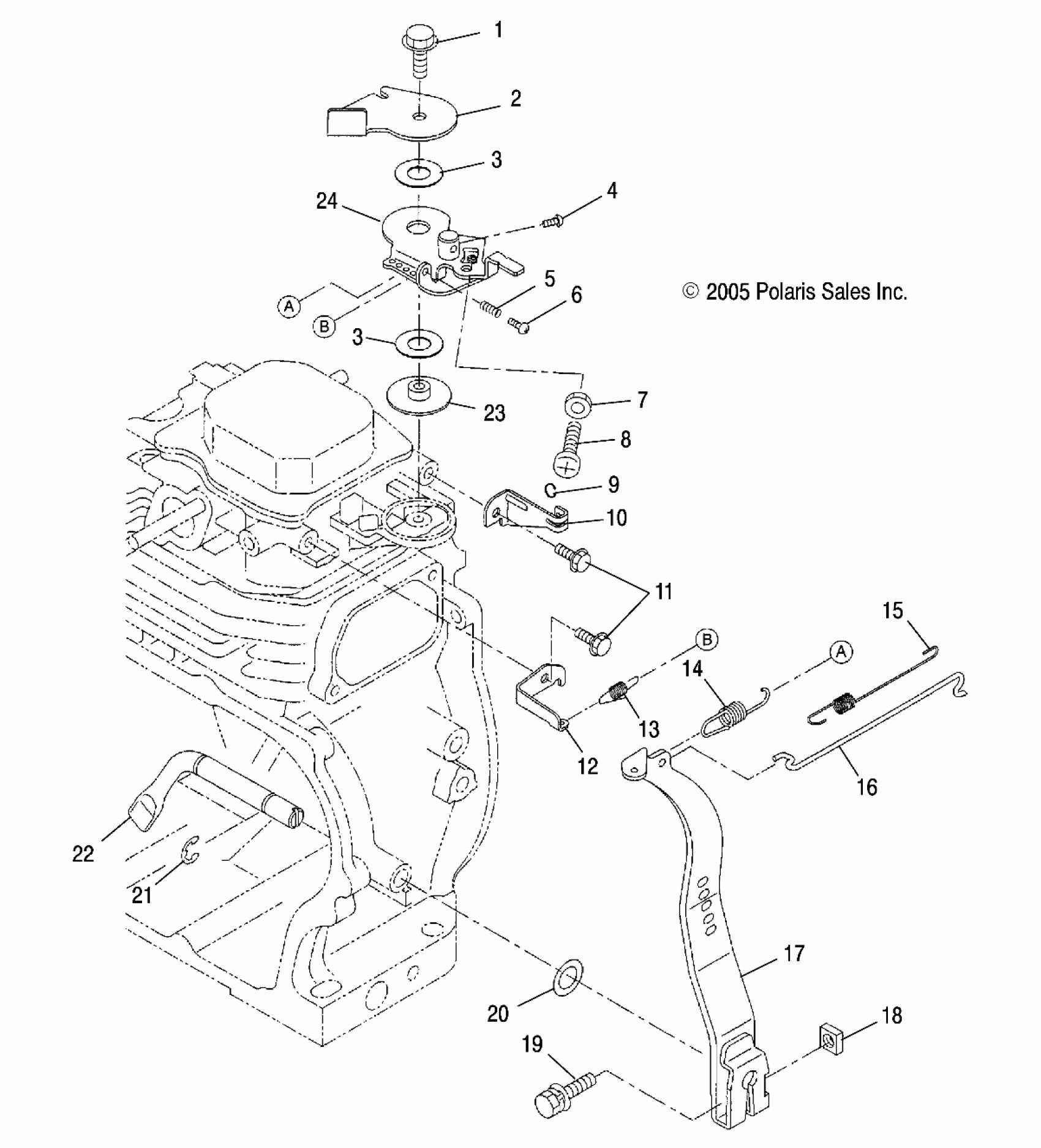

Polaris 120 PRO X - S04WB1AS SPEED CONTROL/GOVERNOR - S04WB1AS/AE (4997579757B06) Diagram

#

Description
Price

1

Bolt, Flange

3084566

$3.19

2

Plate, Stop

3086605

$12.94

3

Washer, Friction

3086954

$8.79

3

Washer, Friction

3086954

$8.79

4

Screw

3086609

$2.39

5

Spring, Idle Set

3086606

$7.27

6

SCREW

3081497

$2.39

7

Nut

3083073

$2.39

8

Screw, Pan Head

3081600

Unavailable

9

RING, RETAINING

7556129

$3.99

10

Bracket, Wire

3086973

$9.70

11

Bolt, Flange

3086125

$2.39

12

Bracket, Return Spring

3086862

Unavailable

13

Spring, Return

3086956

$20.22

14

Spring, Governor

3086599

$5.65

15

Spring, Rod

3087145

Unavailable

16

Rod, Governor

3086596

$24.99

17

Lever, Governor

3086594

$36.41

18

Nut

3086598

Unavailable

19

ASM., BOLT AND WASHER

3082038

$3.99

20

Washer

3082673

$2.39

21

Clip

3086053

$3.99

22

Shaft, Governor

3086595

$28.32

23

Asm., Spacer

3086955

$27.99

24

Asm., Control, Speed

3086953

$56.65
