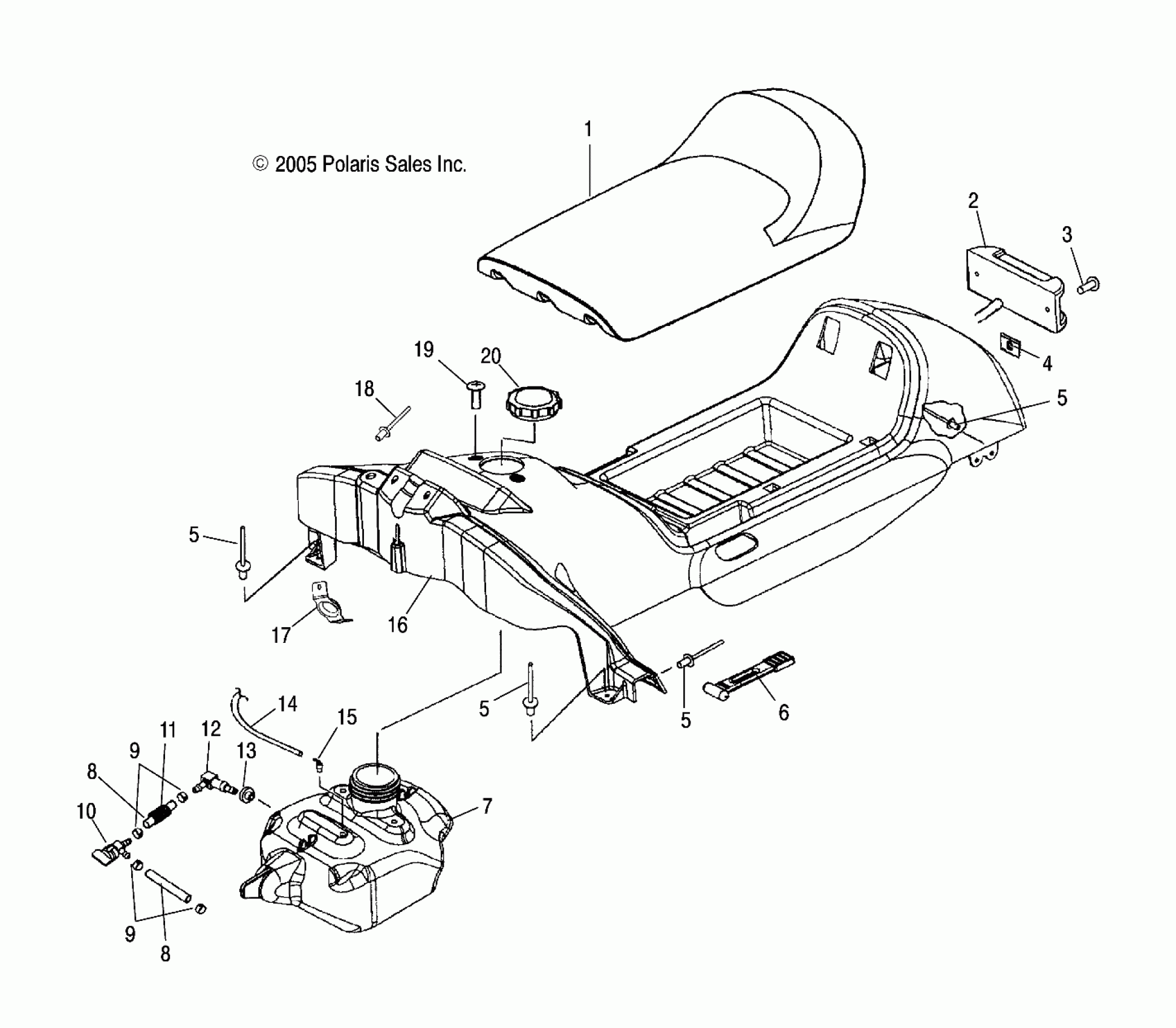

Polaris 120 PRO X - S04WB1AS SEAT and GAS TANK - S04WB1AS/AE (4997579757A04) Diagram

#

Description
Price

1

Asm., Seat Cushion [Incl. Cover]

2683377

$180.16

1

Asm., Seat Cover

2683378

$236.99

2

Taillight w/Harness

2872427

$43.99

3

Screw

7512091

$3.99

4

Nut, U-Type

7670094

$5.59

5

RIVET

7621472

$1.49

5

RIVET

7621472

$1.49

5

RIVET

7621472

$1.49

5

RIVET

7621472

$1.49

6

STRAP-AIRBOX TOP

5433150

$24.27

7

Asm., Gas Tank [Incl. 12,13]

2520171

$117.37

8

Line, Fuel

8350018-600

Unavailable

8

Line, Fuel

8350018-600

Unavailable

9

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

9

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

10

Valve, Fuel, 90 Degree

7052249

$24.27

11

Conduit, Convoluted

4010051-13

Unavailable

12

Fitting, Outlet, 90 Degree

7052289

Unavailable

13

GROMMET, FLANGED

7052028

$6.39

14

LINE, OIL

8450061-600

Unavailable

15

Fitting, 90 Degree

7052095

$4.79

16

Asm., Console, Seat/Tank Cover

2632154-070

$178.08

17

GUIDE, RECOIL

5243049

$9.70

18

RIVET

7621330

$1.49

19

SCREW

7515148

$4.79

20

Cap, Gas Tank

5433687

$20.22
