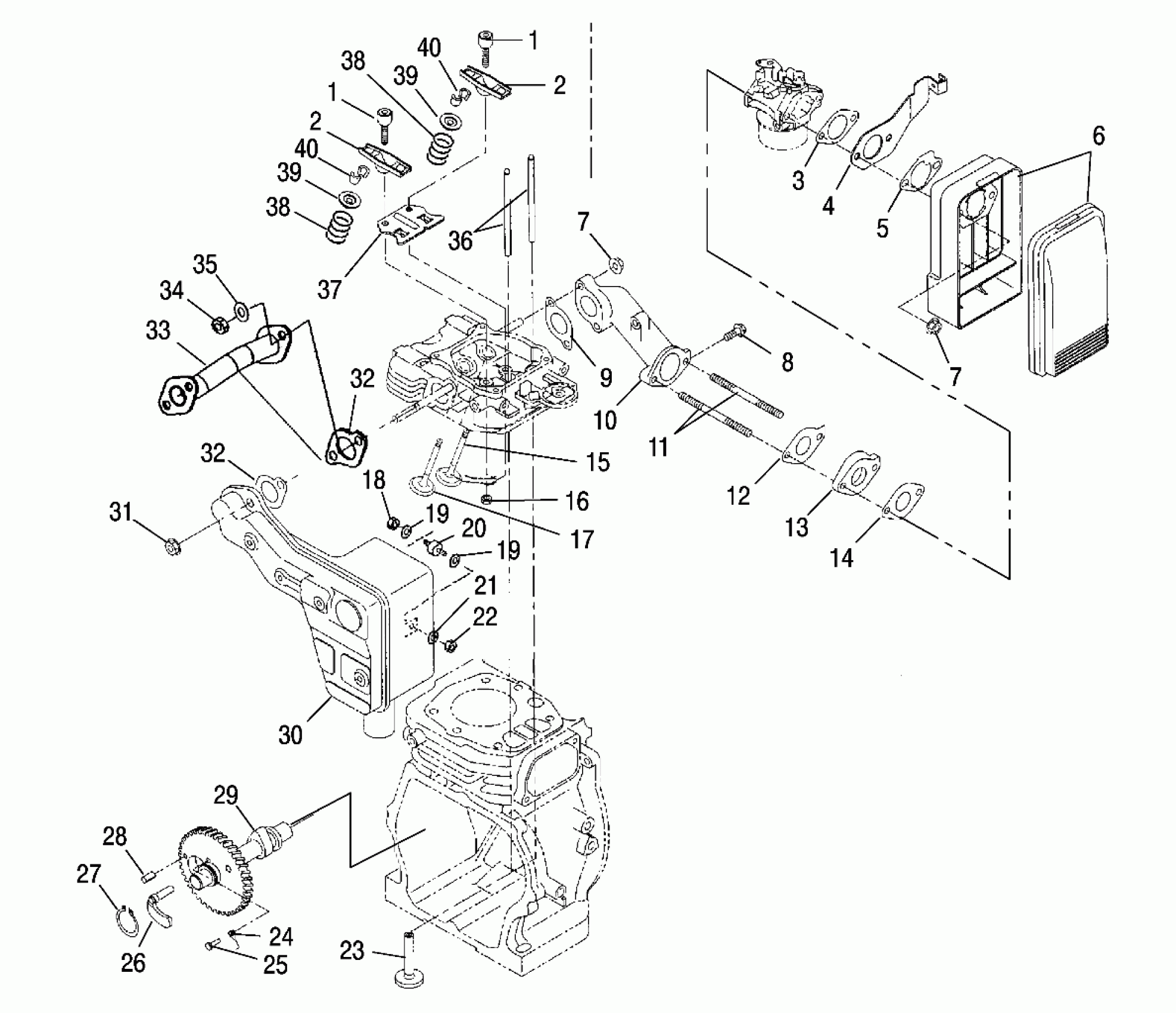

Polaris 120 PRO X - S04WB1AS INTAKE and EXHAUST - S04WB1AS/AE (4991889188B07) Diagram

#

Description
Price

1

Bolt, Pivot

3086570

$4.84

1

Bolt, Pivot

3086570

$4.84

2

Arm, Rocker

3087013

$28.32

2

Arm, Rocker

3087013

$28.32

3

Gasket 2, Insulator

3086951

$1.49

4

Asm., Bracket, Choke

3086861

Unavailable

5

Gasket, Air Cleaner

3086583

Unavailable

6

Asm., Cleaner, Air

3086581

Unavailable

7

NUT, FLANGE

3083856

$2.39

7

NUT, FLANGE

3083856

$2.39

8

Bolt, Flange

3086591

$3.19

9

Gasket, Insulator

3088207

$4.03

10

Asm., Pipe, Intake [Incl. 11]

3087161

$40.46

11

Stud

3086968

$8.79

12

Gasket 3, Insulator

3086589

$4.03

13

Insulator

3086588

$7.99

14

Gasket 2, Insulator

3086592

$2.83

15

Valve, Intake

3086565

$36.41

16

Nut

3084912

$3.99

17

Valve, Exhaust

3086566

$52.60

18

Nut, FLEXLOC

7542103

$5.59

19

Washer, Fiber

7556144

$3.99

19

Washer, Fiber

7556144

$3.99

20

MOUNT, CARBURETOR

3110050

$12.99

21

Washer, Flat

7558301

$1.49

22

Nut

7542101

$3.99

23

Tappet

3086562

$48.56

24

Spring, Return

3086986

$20.22

25

Pin, Spring

3086987

$11.99

26

Lever, Release

3086557

$32.37

27

Ring, Snap, Outer

3086559

$3.19

28

Pin, Spring

3086558

$2.39

29

Asm., Camshaft [Incl. 26,27,28]

3086554

$164.99

30

Asm., Muffler

3089423

$169.99

31

Nut

3086575

$4.23

32

Gasket, Muffler

3086574

$1.60

32

Gasket, Muffler

3086574

$1.60

33

Headpipe

1261014-029

$48.56

34

Nut

3086575

$4.23

35

WASHER, SPRING LOCK

7552901

$1.49

36

Rod, Push

3086568

$44.99

37

Plate, Guide

3086571

Unavailable

38

Spring, Valve

3086563

$32.37

38

Spring, Valve

3086563

$32.37

39

Retainer, Spring

3088206

$3.99

39

Retainer, Spring

3088206

$3.99

40

Valve, Collet

3086567

$8.89

40

Valve, Collet

3086567

$8.89
