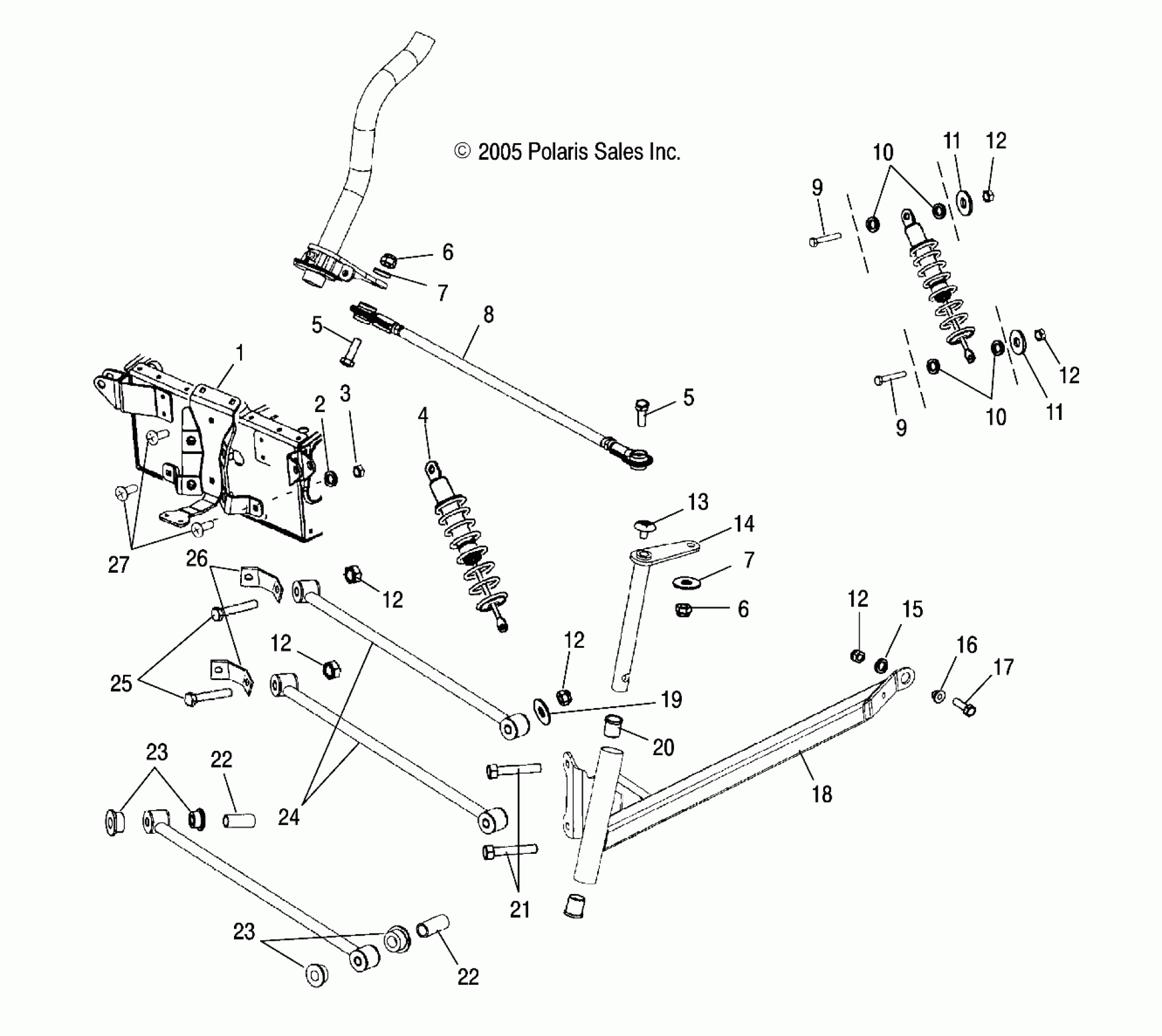

Polaris 120 PRO X - S04WB1AS FRONT SUSPENSION and STEERING - S04WB1AS/AE (4997579757A10) Diagram

#

Description
Price

1

Bracket, Radius Rod/Steering Mount

5243858-067

$32.37

2

Washer, Flat

7558301

$1.49

3

Nut, Nylok

7542122

$1.49

4

Asm., Shock, IFS

1820768-385

Unavailable

5

Screw

7515534

$4.79

5

Screw

7515534

$4.79

6

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

6

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

7

Washer

7558403

$4.79

7

Washer

7558403

$4.79

8

Asm., Tie Rod

1820767

$36.41

9

Bolt, Shoulder

7517745

$8.79

9

Bolt, Shoulder

7517745

$8.79

10

Bushing, Shock Mount

5433624

$2.39

10

Bushing, Shock Mount

5433624

$2.39

11

Washer

7556160

$3.99

11

Washer

7556160

$3.99

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

Cap, Spindle

5433481-070

$34.99

14

Spindle

1820764

$125.46

15

Bushing

5433593

Unavailable

16

Bushing

5132329

$11.99

17

Bolt

7512310

$2.39

18

Arm, Trailing, LH

1820774-385

$247.99

18

Arm, Trailing, RH

1820775-385

$257.99

19

Washer, Flat

7555734

$1.49

20

Bushing, Spindle

3514343

$15.99

21

Bolt

7512329

$3.99

22

Spacer

5333834

$6.39

22

Spacer

5333834

$6.39

23

Bushing, Radius Rod

5433547

$6.39

23

Bushing, Radius Rod

5433547

$6.39

24

Rod, Radius

1820780-385

$60.70

25

Bolt

7517778

$3.99

26

Bracket, Support, Radius Rod

5244330-067

$12.99

27

BOLT, CARRIAGE

7512193

$2.39
