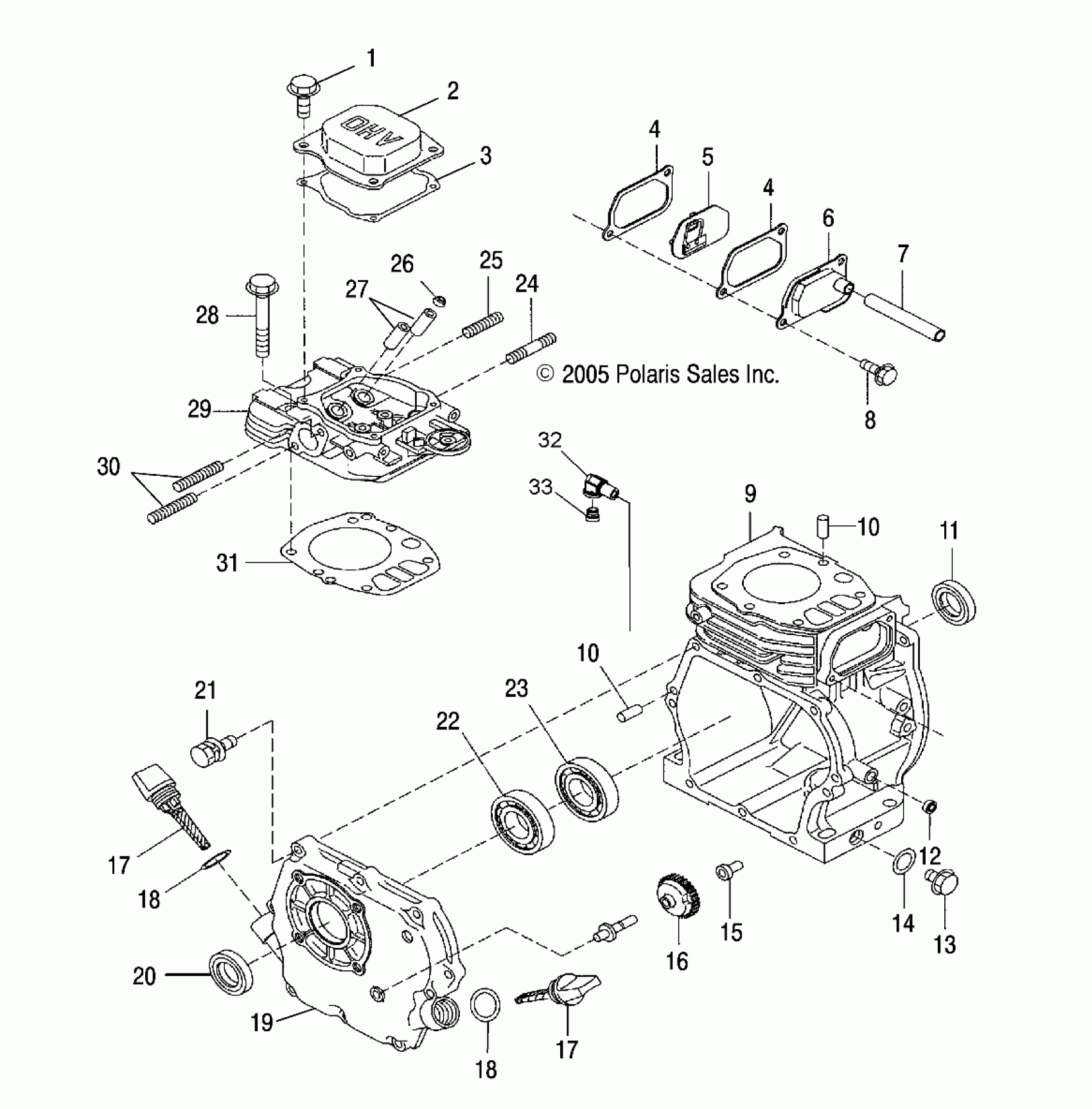

Polaris 120 PRO X - S04WB1AS CRANKCASE - S04WB1AS/AE (49SNOWCRANKCASE07120) Diagram

#

Description
Price

1

Bolt, Flange

3083568

$3.85

2

Cover, Rocker

3086527

$40.46

3

Gasket, Rocker Cover

3086528

Unavailable

4

Gasket, Breather Cover

3086531

$8.89

4

Gasket, Breather Cover

3086531

$8.89

5

Asm., Plate, Breather

3086530

$24.27

6

Asm., Cover, Breather

3086529

$34.99

7

Pipe, Rubber

3086532

$24.27

8

Bolt, Flange

3086125

$2.39

9

Asm., Crankcase [Incl. 10-12,23]

3087143

$339.99

10

Pin, Dowel

3083054

Unavailable

10

Pin, Dowel

3083054

Unavailable

11

Seal, Oil

3086510

$40.46

12

Seal, Oil

3087144

$9.59

13

PLUG

3083453

Unavailable

14

GASKET

3082956

$4.84

15

Sleeve, Governor

3086518

$24.27

16

Asm., Gear, Governor

3086517

$80.94

17

Gauge, Oil

3086519

$32.37

17

Gauge, Oil

3086519

$32.37

18

Gasket

3086520

$8.89

18

Gasket

3086520

$8.89

19

Asm., Cover, Main Bearing [Incl. 20,22]

3086966

$129.51

20

Seal, Oil

3086516

$36.41

21

Asm., Bolt and Washer

3086522

$3.19

22

Bearing, Ball

3080108

$23.99

23

Bearing, Ball

3086947

$24.99

24

Stud

3082934

$10.39

25

Stud

3086513

$3.19

26

Seal, Stem

3088202

$5.65

27

Guide, Valve

3086535

$36.41

28

Bolt, Flange

3086526

$6.39

29

Asm., Head, Cylinder [Incl. 24-27,30]

3089422

$284.99

30

Stud

3086512

$3.19

31

Gasket, Rocker Cover

3086525

Unavailable

32

Fitting

7052304

$40.46

33

PLUG

7052115

$5.65
