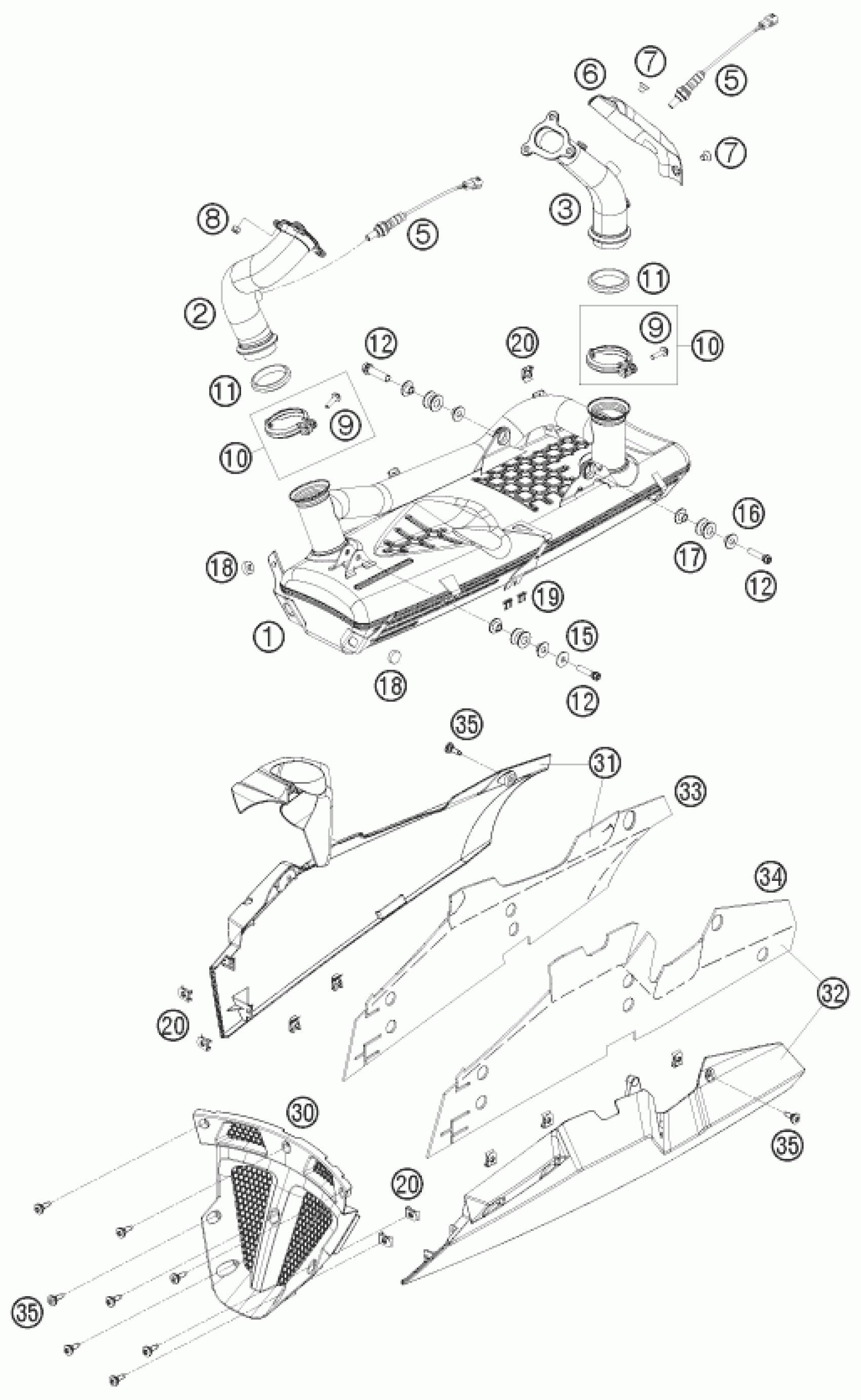

KTM 1190 RC8 WHITE 2010 EXHAUST SYSTEM Diagram

#

Description
Price

3

EXHAUST PIPE REAR CPL.

69005008000

$388.24

5

LAMBDA SENSOR 05

61041090000

$195.31

6

HEAT SHIELD REAR

69005011000

$25.09

7

FLAT H.SCREW M6X8 DIN7991 NIRO

0991060082

$1.49

1

SILENCER CPL. RC8 USA

69005183100

$2,780.08

2

EXHAUST MANIFOLD FRONT CPL.

69005007100

$440.97

8

self-locking nut M8 Cu

51010086100

$3.08

9

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

10

CLAMP CPL.

69005050000

$24.58

11

MANIFOLD GASKET

69005005005

$16.82

12

HH COLLAR SCREW M8X35 TX40

0025080356S

$3.08

15

WASHER DIN9021-A 8,4

0021080003

$1.49

16

collar bushing 8.5x12x23.5x10

58405050065

$5.23

17

damp. component silicone grey

54305068100

$8.31

18

RUBBER BUFFER

54308042000

$3.08

19

DAMP. COMPON. SILICONE GREY 05

61005091000

$8.31

20

clip nut M5

69008021080

$3.08

30

KEEL COVER BLACK MATT

6900806020033

$18.20

31

EXH. COV. R/S CPL. BL. BR. RC8

6900805633330A

$260.57

32

EXH. COV. L/S CPL. BL. BR. RC8

6900805523330A

$281.83

33

HEAT SHIELD F. EXH. COVER R/S

69005083192

$82.18

34

HEAT SHIELD F. EXH. COVER L/S

69005083193

$79.09

35

special screw M5x17

69008021060

$3.08
