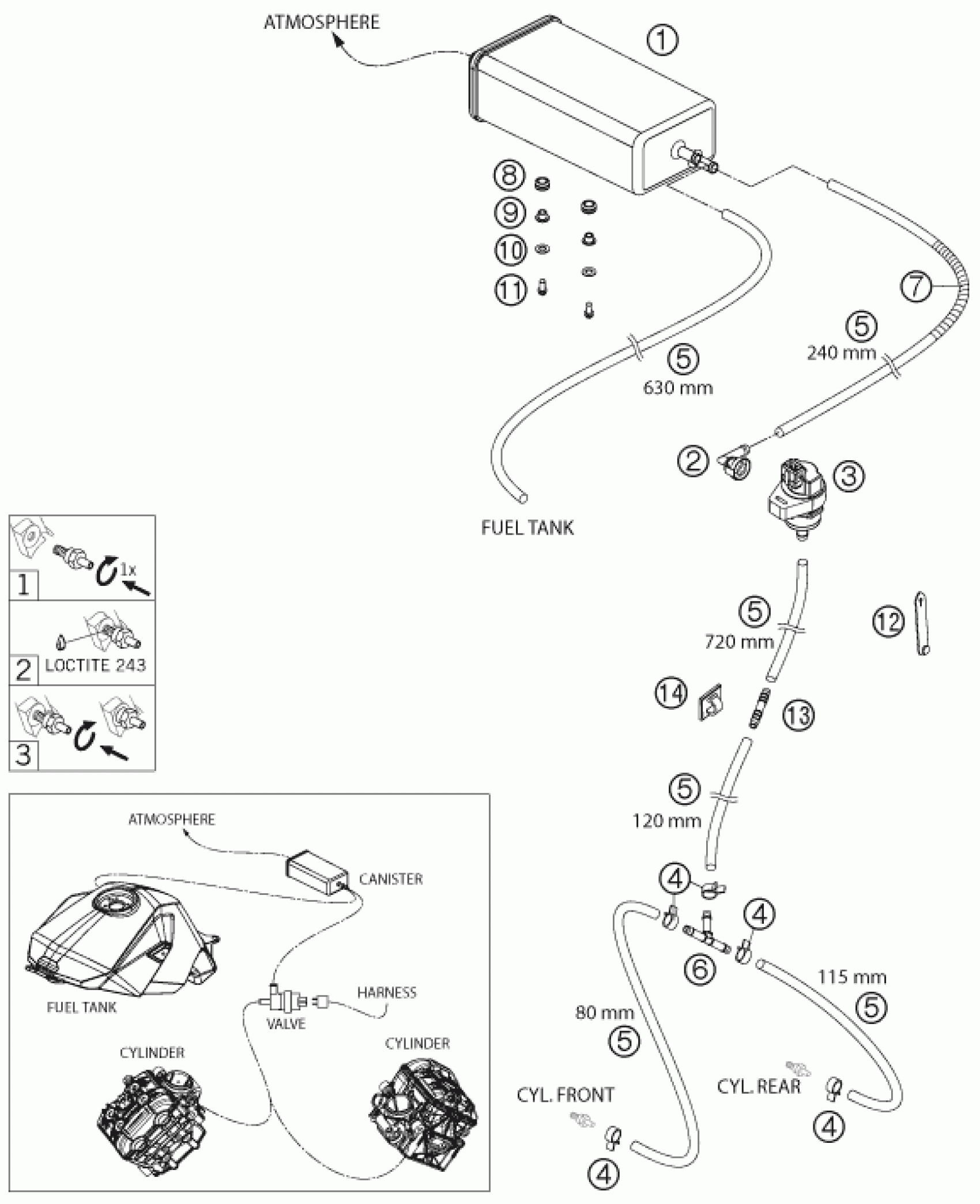

KTM 1190 RC8 WHITE 2010 EVAPORATIVE CANISTER Diagram

#

Description

Price

1

EVAPORATIVE CANISTER 09

75015001100

$61.80

2

FITTING PIECE NQV2 NW7 90°

61115016000

$12.71

3

VALVE FOR CARBON CANISTER 07

61115015000

$63.95

4

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

5

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

6

T-connector TS-6 03

60015022000

$5.98

7

PRESSURE SPRING D1X12X60

63015001040

$5.23

8

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

9

collar bushing 6.1x9.2x15x8.5x

69014015000

$5.23

10

WASHER DIN0125-A 6,4

0125060003

$1.49

11

HH collar screw M6x20 TX30

0025060206

$3.08

12

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

13

HOSE CONNECTION STRAIGHT

69015019010

$5.23

14

SOCKET

69015019020

$4.11
