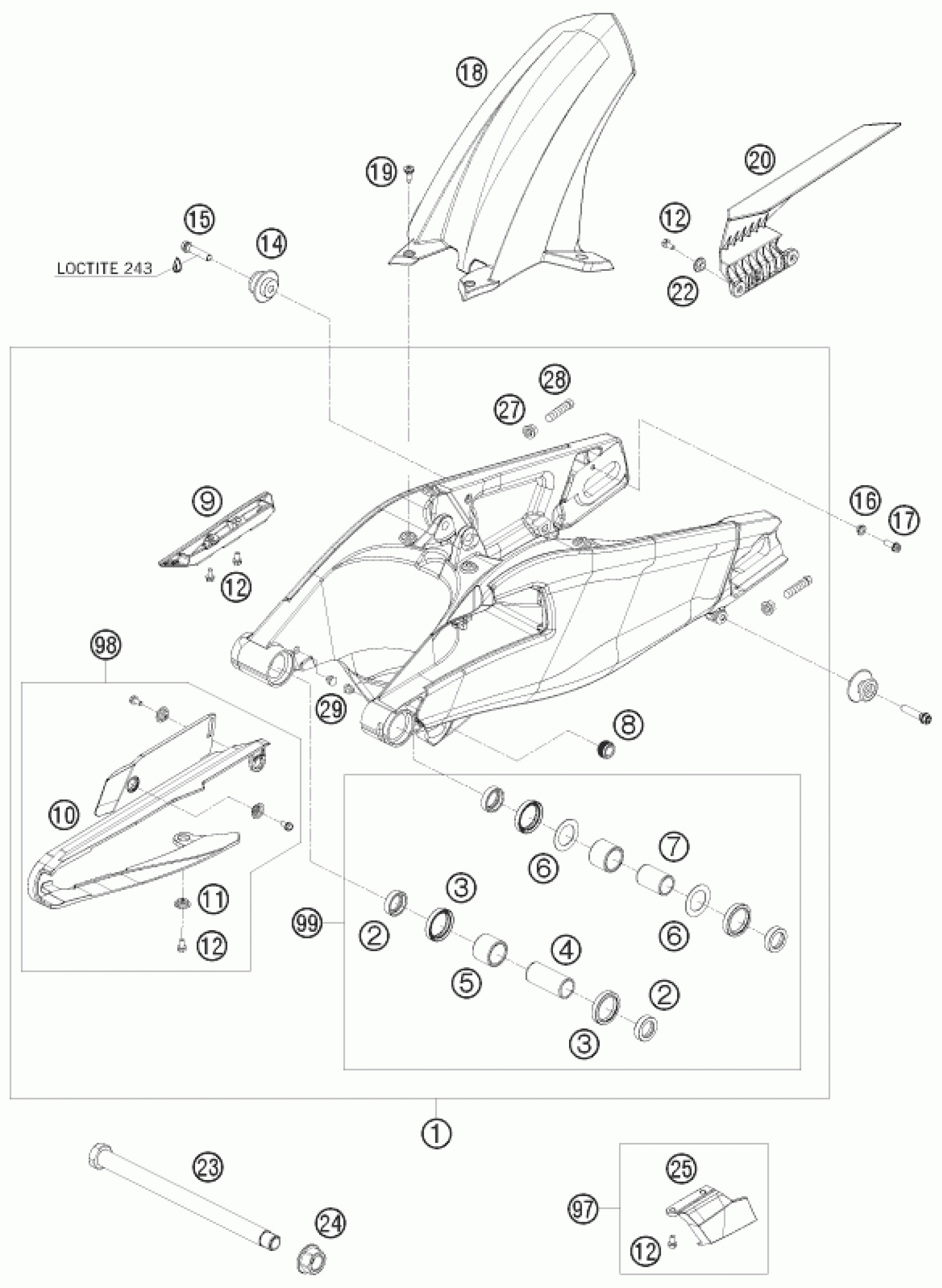

KTM 1190 RC8 WHITE 2010 SWING ARM Diagram

#

Description
Price

1

SWING ARM CPL. RC8 2010

6900403024401

Unavailable

2

Bucket f. shaft seal ring 03

60004034000

Unavailable

3

Radial shaft seal 30X40X7

0760304073

Unavailable

4

Inner ring JR 20X25X56.5

69004032000

Unavailable

5

NEEDLE BUSH HK2526B 03

60004031000

Unavailable

6

Stop disk 03

60004033000

Unavailable

7

INNER RING JR20X25X38,5 03

60004032000

Unavailable

8

ADAPTOR NUT M10

69004095000

Unavailable

9

BRAKE HOSE GUIDE

69013010000

Unavailable

10

CHAIN SLIDING GUARD

69004066200

Unavailable

11

BUSH FOR CHAINSLIDER GUARD 02

46104066050

Unavailable

12

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

14

SUPPORT F. LIFITNG GEAR

69004040000

Unavailable

15

SPECIAL SCREW M8X35 ISA45

69004030010

Unavailable

16

BUSHING F. BRAKE-CAL. BRACKET

69004072000

Unavailable

17

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

18

SPLASH PROTECTION

69004050000

Unavailable

19

special screw M5x17

69008021060

Unavailable

20

UPPER CHAIN GUARD RC8

6900406010033

Unavailable

22

Chain slider bushing

69004060050

Unavailable

23

SWING ARM BOLT

69004037144

Unavailable

24

COLLAR NUT M19X1,5 WS=27MM

60004038000

Unavailable

25

LOWER CHAIN GUIDE

6900406100033

Unavailable

27

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

28

screw M10x1.25x50 WS10

50304040100

Unavailable

29

PLUG SFL12 GREY 05

60004042000

Unavailable

99

swingarm rep. kit

69004230010

Unavailable

97

CHAIN GUIDE KIT REAR RC8

6900406101033

Unavailable

98

CHAIN GUARD KIT 10-13

69004066210

Unavailable
