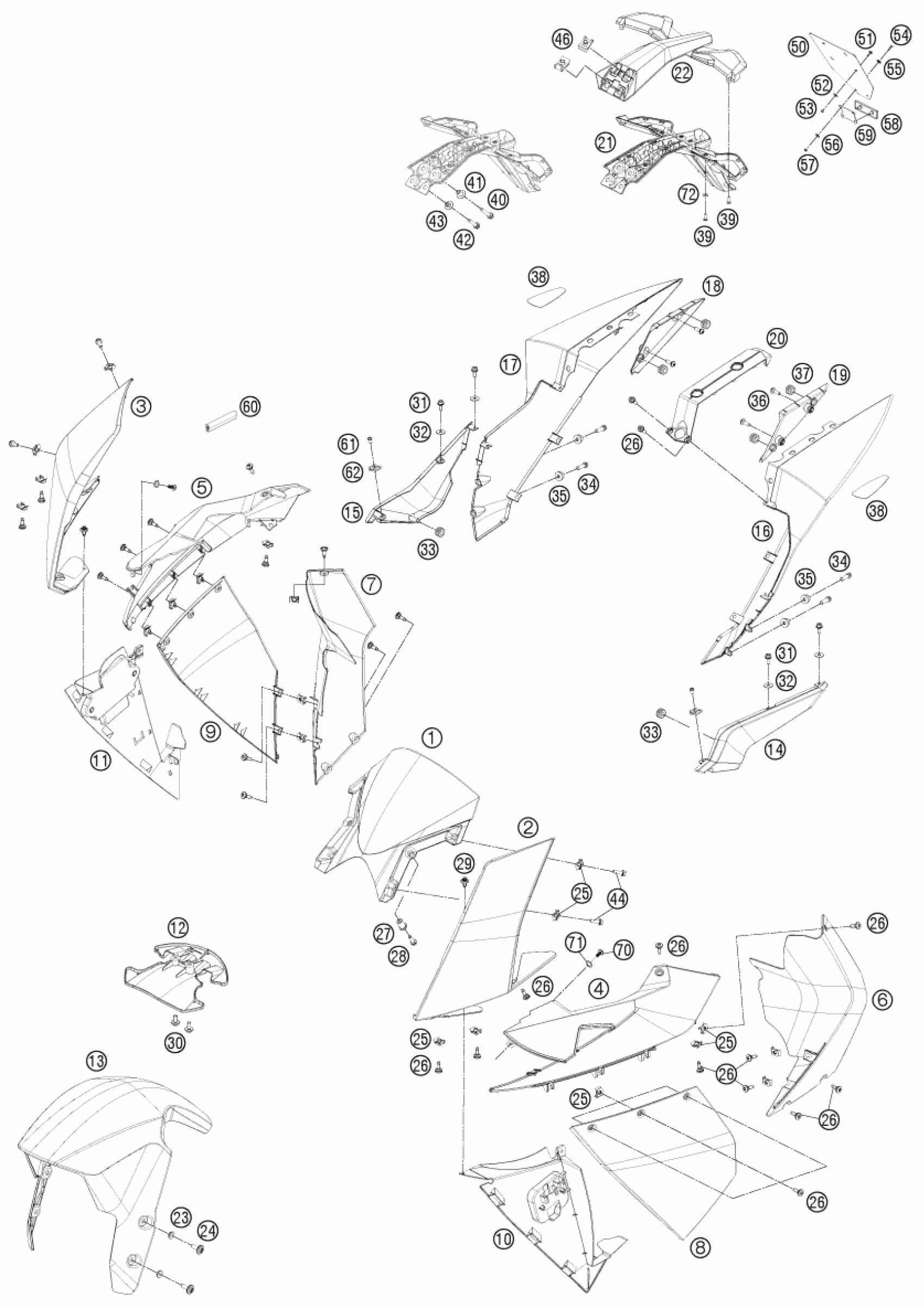

KTM 1190 RC8 R WHITE 2015 MASK, FENDERS Diagram

#

Description
Price

1

FAIRING SCREEN HIGH

69108008000

Unavailable

2

FR.FAIR. UP PART L/S WE.GL.RC8

6900800110028B

Unavailable

3

FR.FAIR. UP PART R/S WE.GL.RC8

6900800210028B

Unavailable

4

FR.FAIR. LO.PART L/S WS.GL RC8

6900800300028B

Unavailable

5

FR.FAIR. LO.PART R/S WS.GL RC8

6900800400028B

Unavailable

6

EXHAUST SHAFT L/S ORA.BRILL.

6900805200004A

Unavailable

7

EXHAUST SHAFT R/S

6900805310004A

Unavailable

8

COOLER FAIRING L/S SW. GL

6900805000030D

Unavailable

9

COOLER FAIRING R/S SW.GL

6900805100030D

Unavailable

10

FRESH-AIR SHAFT L/S BL. MA. 10

6900802210033

Unavailable

11

FRESH-AIR SHAFT R/S BLACK MATT

6900802310033

Unavailable

12

UP. FRESH-AIR SHAFT BLACK MA.

6900802120033

Unavailable

18

REAR LIGHT ADAPTER R/S

69008039000

Unavailable

19

REAR LIGHT ADAPTER L/S

69008038000

Unavailable

21

LIC. PLATE BRACKET LO. PART EU

69008018100

Unavailable

13

FRONTFENDER BLACK

6930811000033

Unavailable

14

SIDE COVER L/S WH. BRILL. RC8

6900804300028A

Unavailable

15

SIDE COVER R/S WH. BRILL. RC8

6900804400028A

Unavailable

16

REAR FAIRING L/S WE.GL. RC8

6900804100028B

Unavailable

17

REAR FAIRING R/S WE.GL. RC8

6900804200028B

Unavailable

20

UPPER REAR END PANEL

6900803100033

Unavailable

22

LIC. PLATE BRACKET UP. PART EU

69008017100

Unavailable

23

Chain slider bushing

69004060050

Unavailable

24

SPECIAL SCREW M6X18 ISA30 08

69014017000

Unavailable

25

clip nut M5

69008021080

Unavailable

26

special screw M5x17

69008021060

Unavailable

27

blind plug nut M5 WN16A

60008008050

Unavailable

28

HH collar screw M5x16 TX30

0025050166

Unavailable

29

Spread rivet cmpl. 6.2mm

76503075000

Unavailable

30

HH collar screw M6x13 TX30

0024060136

Unavailable

31

SCREW TORX M5X10 05

58605083010

Unavailable

32

Washer tail section UT D=14mm

75008023000

Unavailable

33

rubber grommet D=8mm open

31008060000

Unavailable

34

HH collar screw M8x25

0025080256

Unavailable

59

BRACKET FOR REFLECTOR

58412080050

Unavailable

35

WASHER F. MONT.REARPART 11

6930300405001

Unavailable

36

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

37

RUBBER SLEEVE 10X14X20 08

69014078000

Unavailable

38

PASSENGER´S SEAT PLATE WHITE

6900704705028

Unavailable

39

SCREW FOR PLASTIC K40X16 T20

0081040161

Unavailable

40

HH collar screw M6x25 TX30

0025060256

Unavailable

41

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

Unavailable

42

HH collar screw M6x20 TX30

0025060206

Unavailable

43

BUSHING LICENSE PLATE BRACKET

69008020000

Unavailable

44

HH collar screw M5x20 TX30

0025050206

Unavailable

46

clip nut M6

54603048100

Unavailable

50

license plate mouning plate

60012081200

Unavailable

51

HH collar screw M6x15 TX30

0024060156

Unavailable

52

Washer DIN9021-A 6.4

0021060003

Unavailable

53

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

54

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

55

WASHER 6MM

40006006000

Unavailable

56

WASHER DIN0125-A 5,3

0125050003

Unavailable

57

Self locking nut DIN 985 M5

0985050003

Unavailable

58

REFLECTOR RED

58412080000

Unavailable

60

EDGE PROTECTOR 14X9,5X66 MM 06

60114010070

Unavailable

61

SPECIAL SCREW M5X10 ISA15

69003003055

Unavailable

62

CLIPS SIDECOVER

69003003050

Unavailable

70

EJOT PT SCREW K60X12 1451

0081060121

Unavailable

71

WASHER PA 8,3X12X5

69008003050

Unavailable

72

WASHER DIN9021-A 4,3

0021040003

Unavailable
