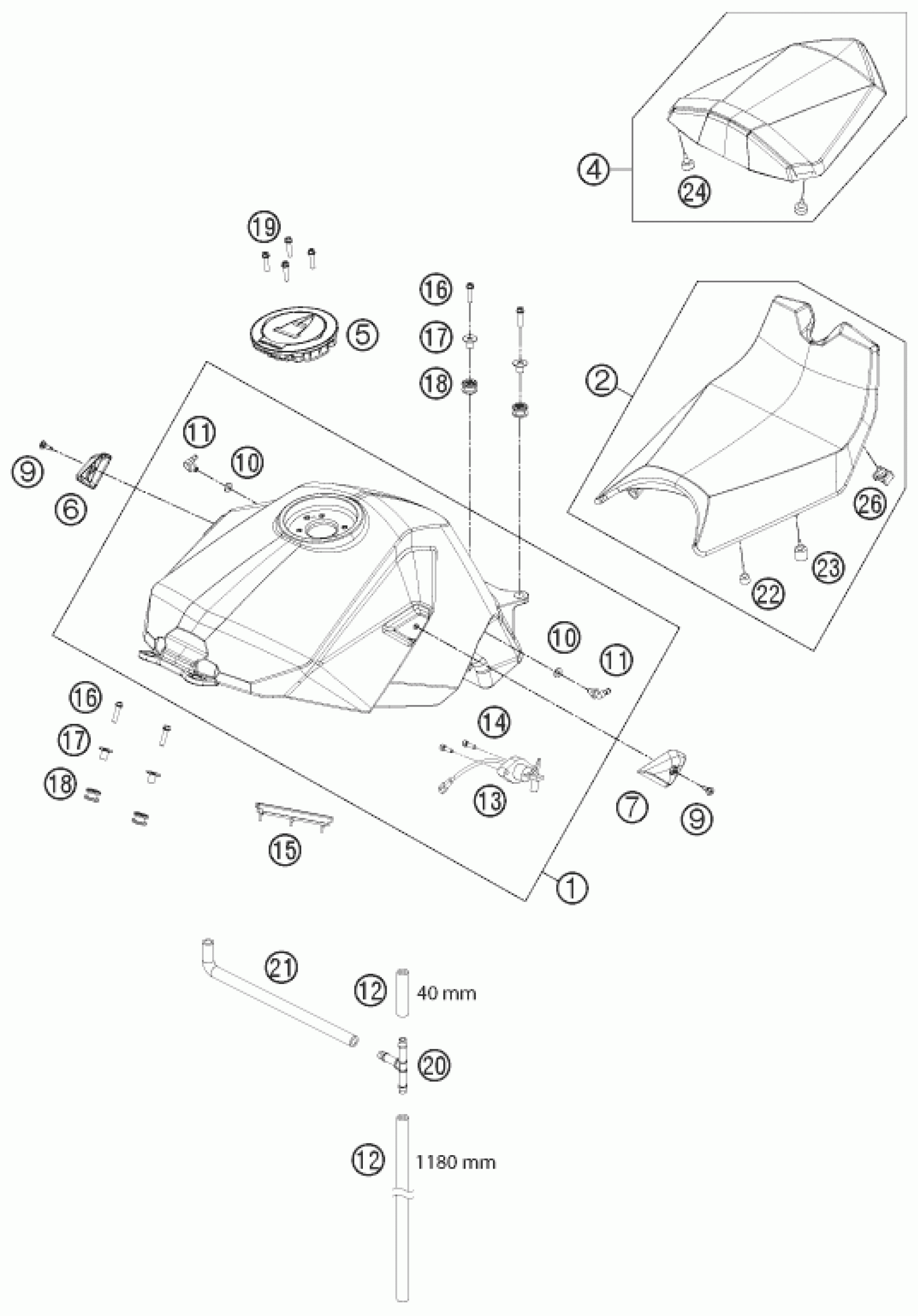

KTM 1190 RC8 R WHITE 2014 TANK, SEAT Diagram

#

Description
Price

6

TANK PROTECTION R/S BLACK BR.

6900702610030

$8.69

7

TANK PROTECTION L/S BLACK BR.

6900702510030

$8.69

1

FUEL TANK CPL. WHITE BRILLIANT

6900701334428A

$1,444.42

2

SEAT

69007040200

$170.09

4

PASSENGER SEAT

69007047000

$188.77

5

TANK CAP

69007008100

$290.59

9

SPECIAL SCREW M5X12 ISA30 ALU

69007025050

$5.23

10

GASKET FOR CONNECTING PIECE 03

60007024050

$2.05

11

CONNECT.PIECE F.OVERFLOW M7 03

60007024000

$2.05

12

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

13

GAS-LEVEL SENSOR ADV. 2006

58207080100

$80.31

14

AH collar screw DIN 912 M5x16

0912050163

$1.49

15

TANK REST RUBBER

69007014100

$13.64

16

HH collar screw M6x30 TX30

0025060306

$3.08

17

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

$5.23

18

rubber grommet, tank mounting

69007027000

$3.08

19

AH SCREW DIN0912-M 5X12

0912050123

$2.05

20

T-connector TS-6 03

60015022000

$5.98

21

PREFORMED HOSE VENT. 9,4X5,4

69307031000

Unavailable

22

DISTANCE RUBBER 14X8

69007040010

$6.18

23

DISTANCE RUBBER 17,8X16

69007040020

$5.92

24

DISTANCE RUBBER 18X8

69007040030

$7.38

26

SPACER RUBBER

69007040070

$20.66
