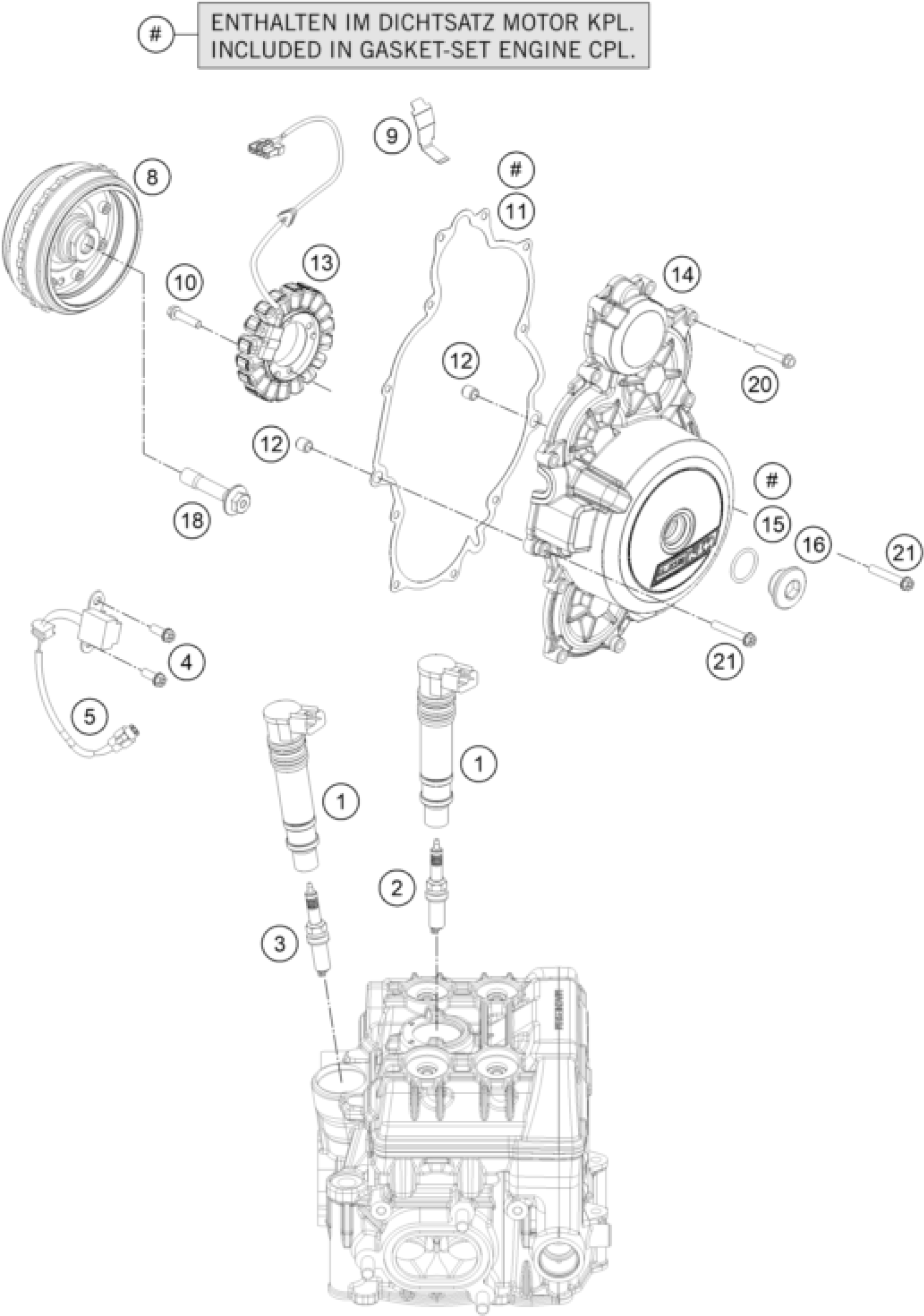

KTM 1190 RC8 R WHITE 2014 IGNITION SYSTEM Diagram

#

Description
Price

1

STICK COIL 03

60039006000

$94.80

2

SPARK PLUG M12X1,25 08

61239093200

$46.84

3

SPARK PLUG NGK ''LMAR7A-9''

69139093000

$46.84

4

HH collar screw M5x16 TX30

0025050166

$2.05

5

pulse generator KOKUSAN 4K3-A/

59039034000

$89.28

8

ROTOR

60239105000

$688.83

9

generator line bracket

60039040020

$3.08

10

HH collar screw M6x25 TX30

0025060256

$3.08

11

IGNITION COVER GASKET 08

61230040000

$27.95

12

DOWEL 9,8 X 7 X 10

49030090000

$2.05

13

STATOR

60239104000

$220.09

14

IGNITION COVER WITH BEARING

6023010204441

$188.96

15

o-ring 24.00x2.50 Viton

07700240251

$3.08

16

threaded plug M24x1.5 PA 6.6

6003009400030

$4.11

18

special screw M12x1.5 WS15

60339003000

$19.63

20

HH collar screw M6x30 TX30

0025060306

$3.08

21

HH collar screw M6x35 TX30

0025060356

$3.08
