Description

Price

1

PUMP WITHOUT RESERVE INDICATOR

61007088200

$608.21

2

O-RING SET FOR FUEL PUMP 05

61007089000

$76.49

3

FILTER-SET FUEL PUMP

61007090100

$182.88

5

HH collar screw M6x16 TX30

0025060166

$3.08

6

HH collar screw M6x25 TX30

0025060256

$3.08

7

Bushing 6.1X9.2X7.5 08

69014014000

$3.08

8

HOSE HOLDER

69007017000

$2.90

23

O-ring VITON f. plug CPC 0

58507012000

$6.26

25

Variable one-ear clamp 15.7mm

00050157706

$5.23

26

CLAMP STD DN14

00049140121

$1.49

27

FUEL PIPE (TANK) CPL.

69007015000

$52.63

28

FUEL HOSE DKK CPL.

69007016150

$60.21

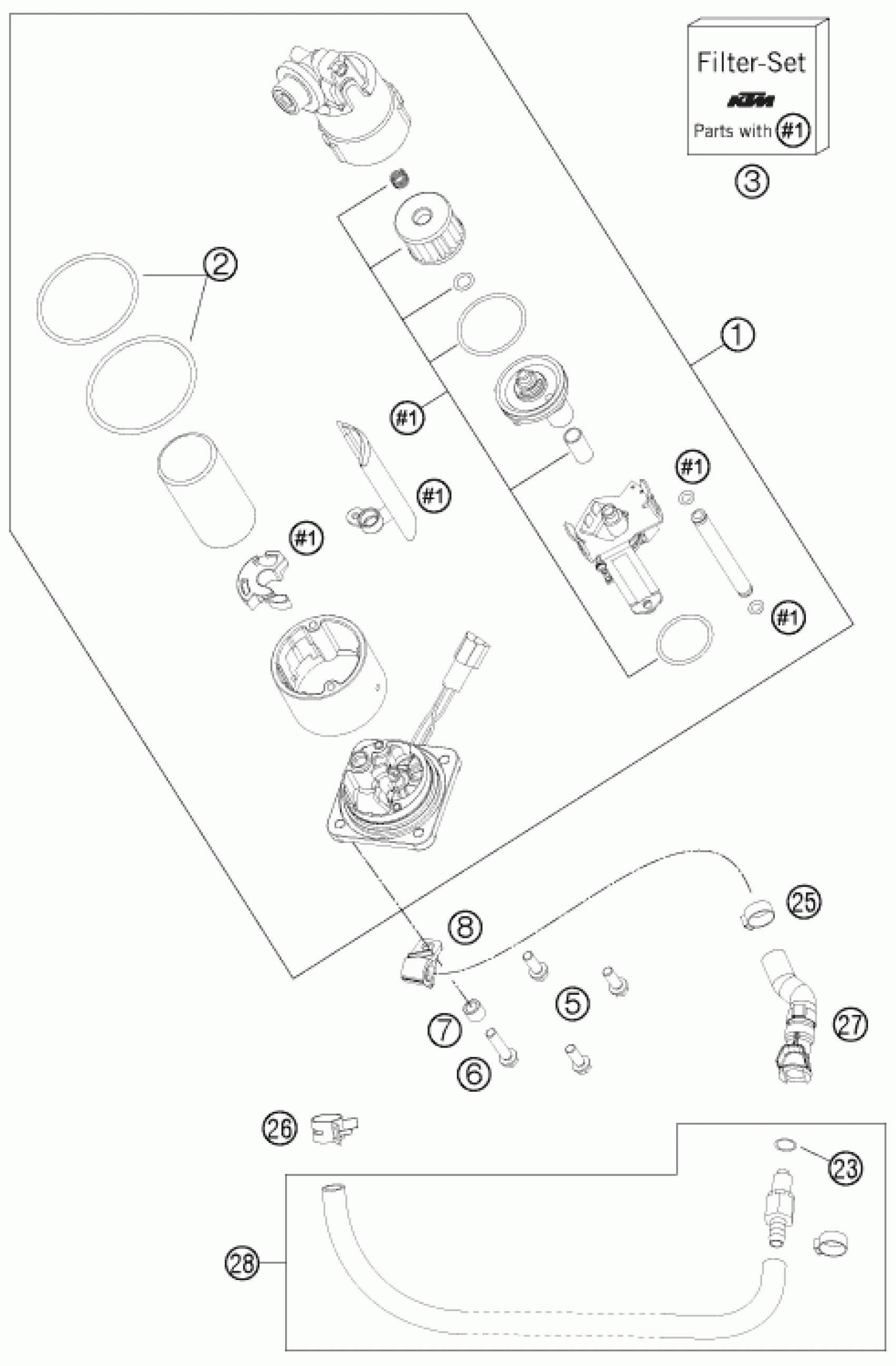

KTM 1190 RC8 R WHITE 2014 FUEL PUMP Diagram

PUMP WITHOUT RESERVE INDICATOR

O-RING SET FOR FUEL PUMP 05

FILTER-SET FUEL PUMP

HH collar screw M6x16 TX30

HH collar screw M6x25 TX30

Bushing 6.1X9.2X7.5 08

HOSE HOLDER

O-ring VITON f. plug CPC 0

Variable one-ear clamp 15.7mm

CLAMP STD DN14

FUEL PIPE (TANK) CPL.

FUEL HOSE DKK CPL.
