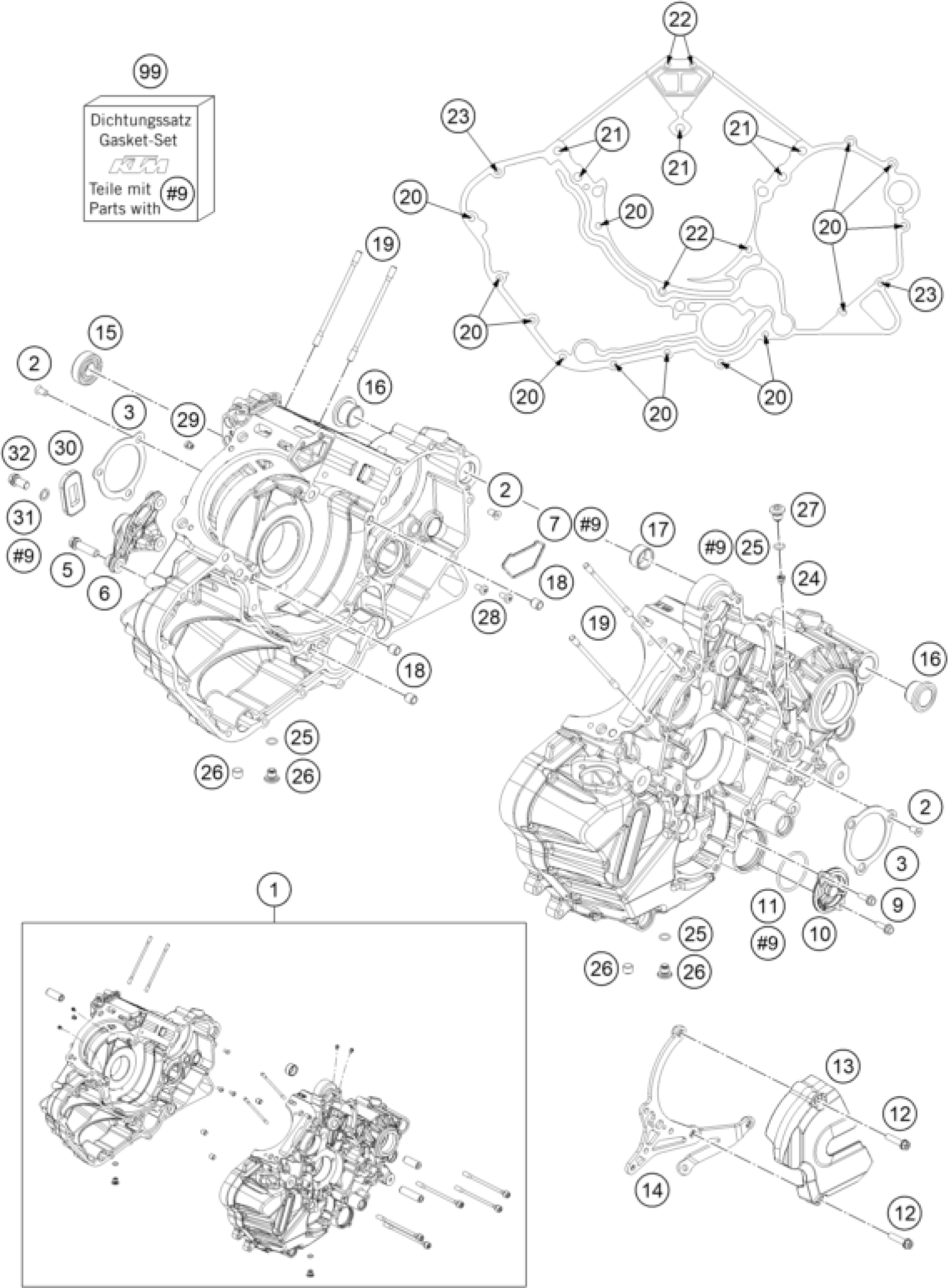

KTM 1190 RC8 R WHITE 2014 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL. WITH BEARINGS

6913000014424

$2,145.01

2

hex lobe countersunc screw M5x

0019050106S

$2.05

19

STUD M6X110 08

61230044000

$4.11

3

BRACKET FOR BEARING INSERT 08

61230084000

$7.56

5

HH collar screw M8x30

0025080306

$3.08

6

ENGINE BRACKET R/S

61230066100

$46.55

7

MOLDED RING CASE CENTER

61230039100

$5.23

9

HH collar screw M5x16 TX30

0025050166

$2.05

10

oil filter cover

75038041200

$8.13

11

O-RING 39,34X2,62

07700390261

$2.05

12

HH collar screw M6x25 TX30

0025060256

$3.08

13

PINION COVER CPL.

69030060144

$20.66

14

SECURING GUIDE RC8 CPL.

61230047144

$53.19

15

CYL.ROLLER BEAR. NJ202 ECP C3

0412153511

$69.65

16

SWING BEARING OUTSIDE LC8 03

60030010000

$13.64

17

DOWEL 20,1X24X12 03

60030023000

$4.11

18

DOWEL 9,8 X 7 X 10

49030090000

$2.05

20

HH COLLAR SCREW M6X80 TX30

0025060806

$2.05

21

CASE SCREW M8X125 AS 08

61230043000

$4.11

22

HH COLLAR SCREW M6X90 TX30

0025060906

$3.08

23

HH collar screw M6x60 TX30

0025060606

$3.08

24

REDUCING JET ''30'' M6X0,75

60038029200

$17.85

25

O-RING 9x1,5 V80 SH

07700900151

$2.05

26

SCREW PLUG

77336056095

$7.00

26

PLUG DIN0913-M10X1X8

0906200100

Unavailable

28

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

$1.49

29

MAIN JET 100 DELLORTO

57031523100

$8.59

30

SAS Reed Valve

60005026000

$21.50

31

SEAL RING 8X14X1 AI

45038017000

$5.23

32

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

99

GASKET KIT ENGINE KPL. RC8-R

69130099000

$493.86

27

SCREW PLUG

77236080000

$6.63
