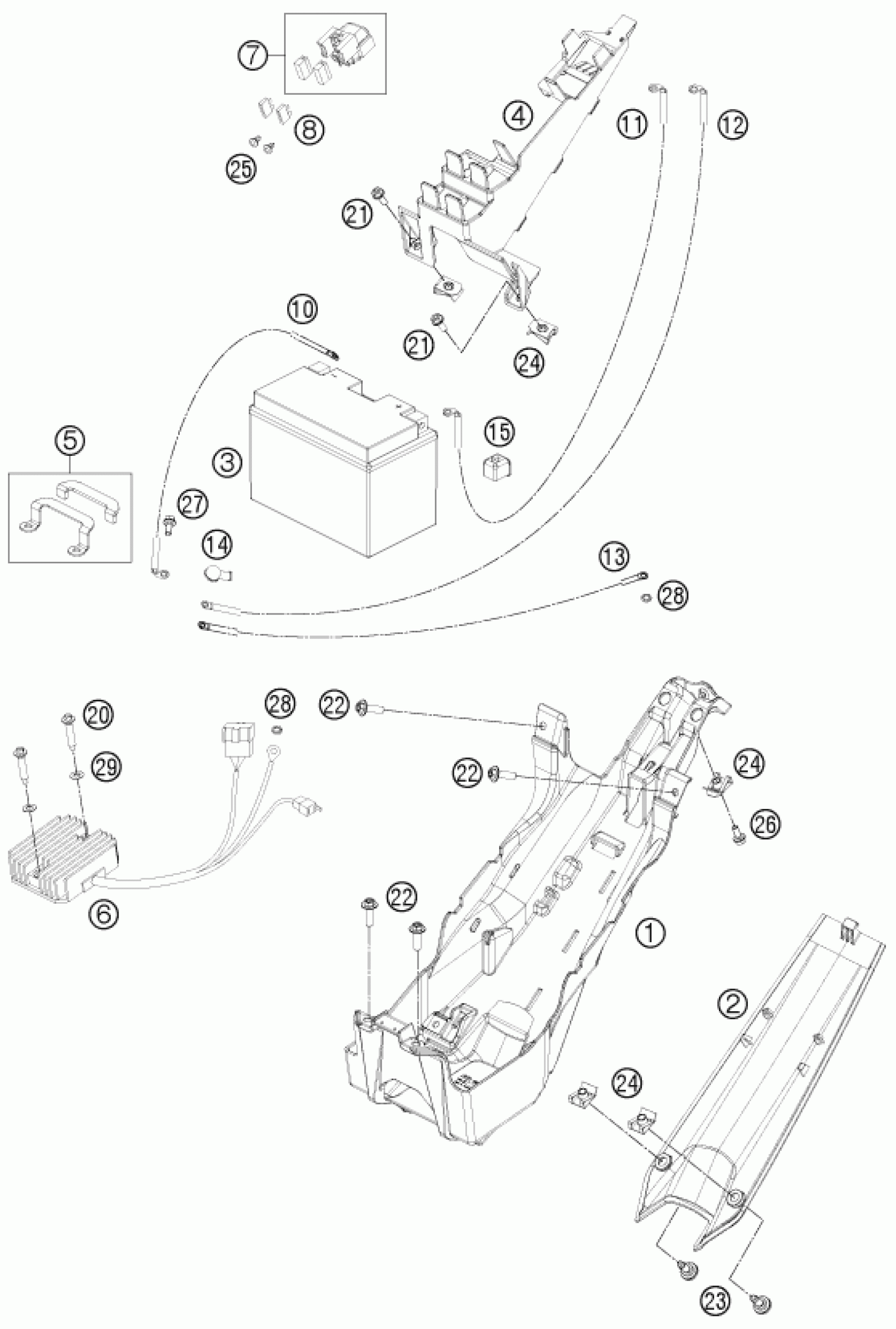

KTM 1190 RC8 R WHITE 2014 BATTERY Diagram

#

Description
Price

1

TAIL END LOWER PART

69008019100

$69.84

2

LOWER REAR END PANEL

6900803200033

$22.52

3

BATTERY 12V/11AH 03

60011053000

$366.89

4

BRACKET FOR PLUGS

69011048000

$6.35

5

BATTERY RETAINING PLATE CPL.

69011055044

$18.69

6

VOLTAGE REGULATOR

60011034100

$160.34

7

Starter reley 12V 99

58211058000

$72.64

8

Plug-in fuse, big 30A

58011109130

$2.05

10

GROUND CABLE

69011097000

$16.54

11

BATTERY CABLE

69011059050

$13.15

12

STARTER CABLE

69011059000

$21.78

13

GROUND CABLE STARTER TO FRAME

69011096000

$12.52

14

Rubber grommet, starter port 0

60040009000

$3.08

15

COVER F. POSITIVE POLE RC8 08

69011059060

$10.45

20

Special screw K60X30 WS=6

0017060305

$2.05

21

SCREW TORX M5X10 05

58605083010

$2.05

22

HH collar screw M6x20 TX30

0024060206

$3.08

23

special screw M5x17

69008021060

$3.08

24

clip nut M5

69008021080

$3.08

25

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

26

HH collar screw M5x12 TX30

0025050126

$3.08

27

HH collar screw M6x12 TX30

0025060126

$3.08

28

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

29

PLASTIC WASHER 03

60007020040

$1.49
