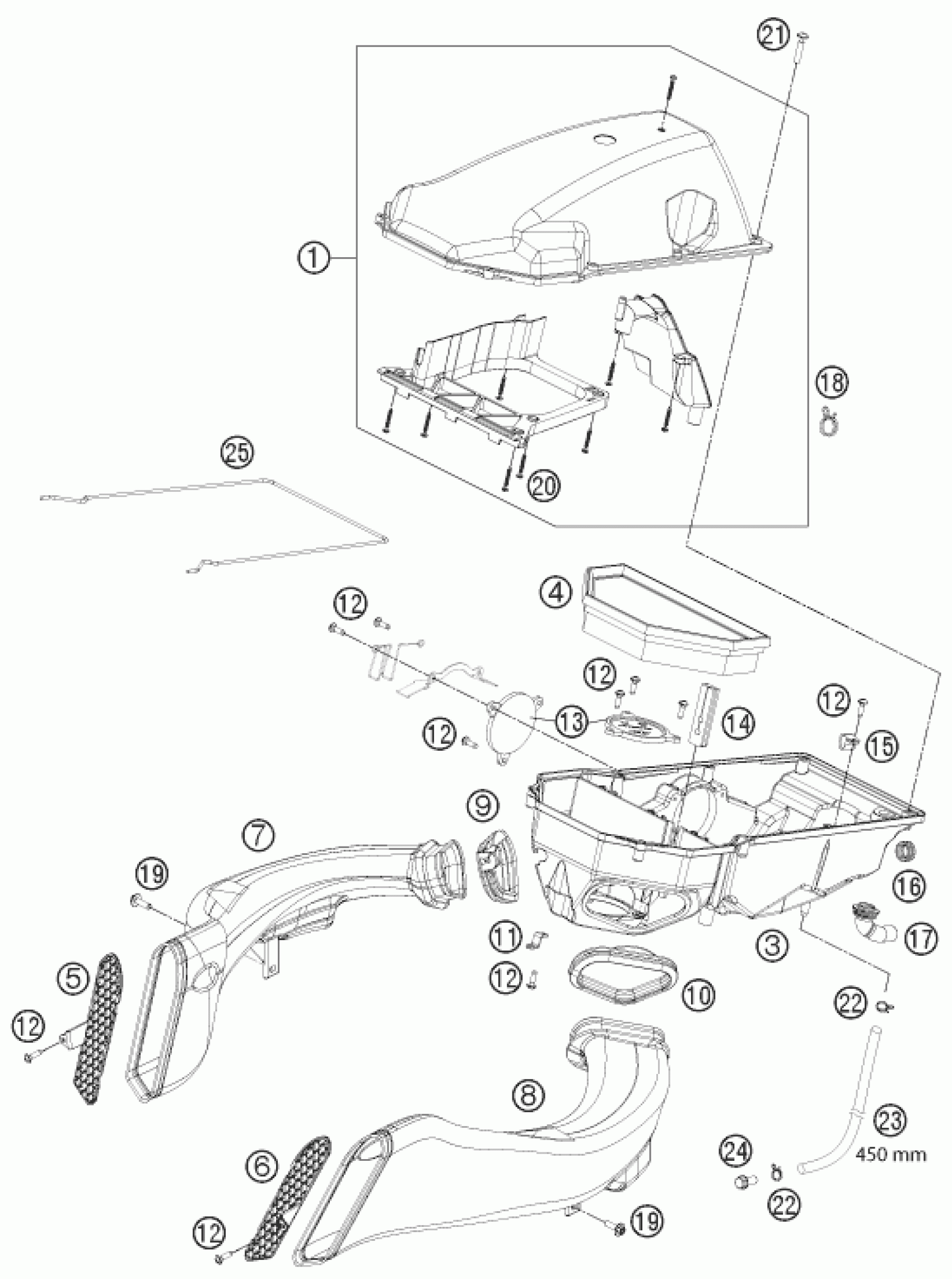

KTM 1190 RC8 R WHITE 2014 AIR FILTER Diagram

#

Description
Price

1

FILTER BOX UPPER PART CPL.

69006002244

$67.27

3

FILTER BOX LOWER PART 09

69006001100

$37.72

4

FILTER ELEMENT

69006015100

$27.11

5

PROT. GRILL INTAKE SNORKEL R/S

69006041060

$4.11

6

PROT. GRILL INTAKE SNORKEL L/S

69006040060

$4.11

7

INTAKE SNORKEL R/S

69006041000

$29.07

8

INTAKE SNORKEL L/S

69006040000

$27.48

9

SNORKEL SEALING R/S

69006041050

$25.52

10

SNORKEL SEALING L/S

69006040050

$23.83

11

BRACKET F. EFI-PLUG

69006015050

$6.07

12

EJOT PT SCREW K50X16 1451

0081050161

$1.49

13

FILTER BOX COVER R/S

69006004000

$4.35

14

THROTTLE ROPE CHANNEL

69006001030

$6.72

15

PVC-CLAMP HEYCO 13,9 3379

69007029000

$3.08

16

PROTECTION SLEEVE FUEL HOSE

69006001040

$6.82

17

MOLDED HOSE ENGINE BREATHER

69006087000

$21.59

18

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

19

HH collar screw M6x20 TX30

0024060206

$3.08

20

PLASTIC SCREW KA40X25WN1412

0081400253

$1.49

21

Special screw K60X30 WS=6

0017060305

$2.05

22

CLAMP YDNAC 10128 12MM

58031005000

$3.08

23

HOSE NBR 7X11 PER METER

60015019001

Unavailable

24

HH collar screw M8x12 TX40

0025080126

$3.08

25

GASKET F. AIRBOX

69006001060

$10.65
