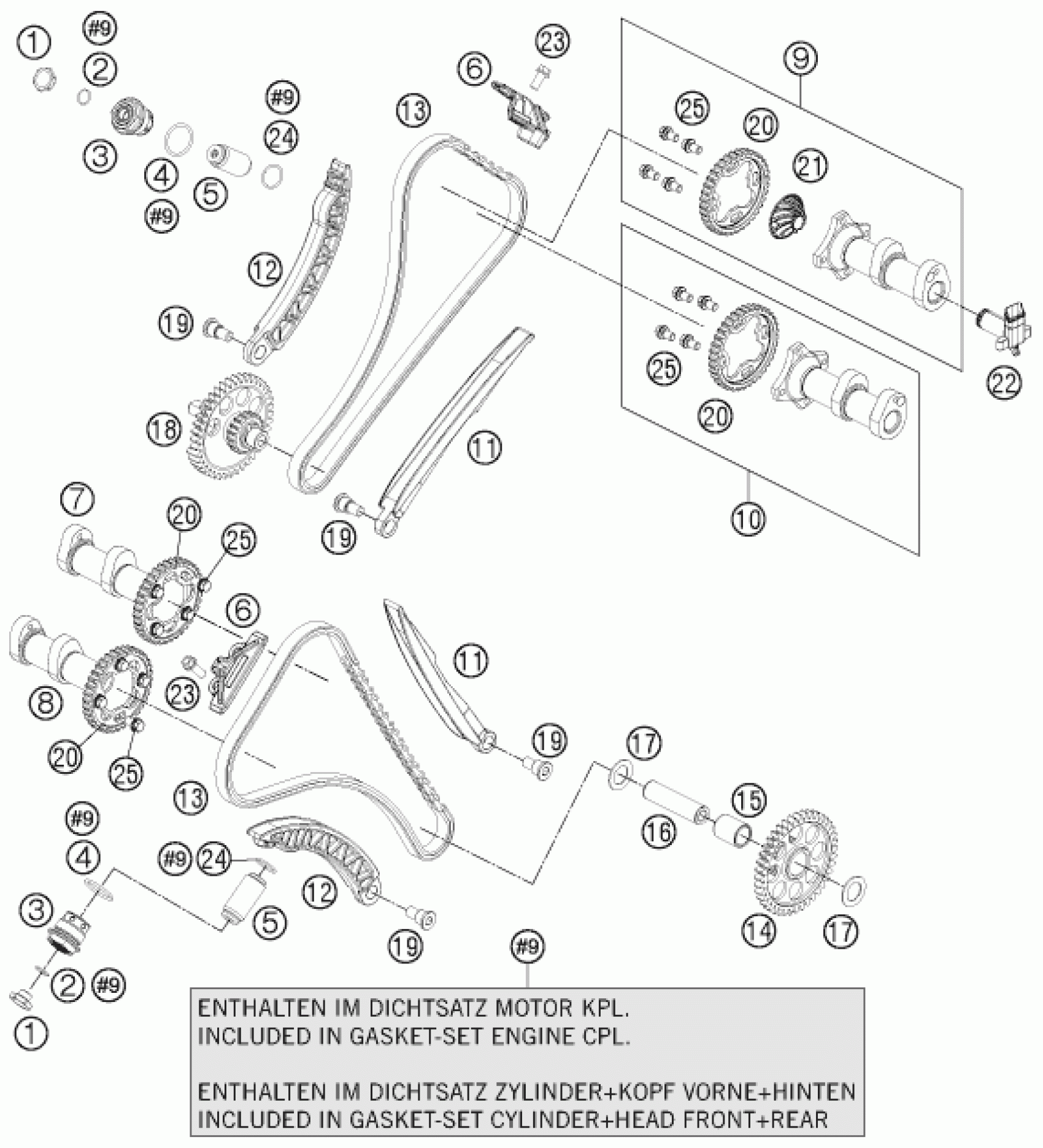

KTM 1190 RC8 R WHITE 2013 TIMING DRIVE Diagram

#

Description
Price

1

HOLDING BOLT

77336008010

Unavailable

2

o-ring 10.00x1.00 NBR70

0770010010

Unavailable

3

chain tension adjuster plug cp

61236008200

Unavailable

4

o-ring 22.00X2.00 NBR70

0770220020

Unavailable

5

CHAIN ADJUSTER HYD. 05

77036003000

Unavailable

6

GUIDE RAIL TOP 08

61236005000

Unavailable

7

CAMSHAFT INTAKE CPL.

69336009144

Unavailable

8

CAMSHAFT EXHAUST CPL.

69336010144

Unavailable

9

CAMSHAFT INTAKE CPL.

69336109144

Unavailable

10

CAMSHAFT EXH. R/S CPL.

69336110144

Unavailable

11

GUIDE RAIL 08

61236001000

Unavailable

12

TENSIONER RAIL 08

61236002000

Unavailable

13

TIMING CHAIN 08

61236013000

Unavailable

14

TIMING DRIVE IDLER GEAR L/S

61230057100

Unavailable

15

NEEDLE BEARING K 15X19X24ZW

0405151924

Unavailable

16

BEARING BOLT 15X57,5 08

61230057050

Unavailable

17

STOP DISK 15,2X25X1

61230057060

Unavailable

18

IDLER GEAR R/S

61230157000

Unavailable

19

hex socket head shoulder screw

61236002050

Unavailable

20

CAMSHAFT WHEEL 36T

69136011000

Unavailable

21

CENTRIFUGE CONE

61236080100

Unavailable

22

ANGLE PIECE F. BREATHER SYSTEM

61236081000

Unavailable

23

HH collar screw M6x20 TX30

0025060206

Unavailable

24

o-ring 18.00x2.00 NBR70

0770180020

Unavailable

25

SPECIAL SCREW M6X10 SW=8 10.9

59009062010

Unavailable
