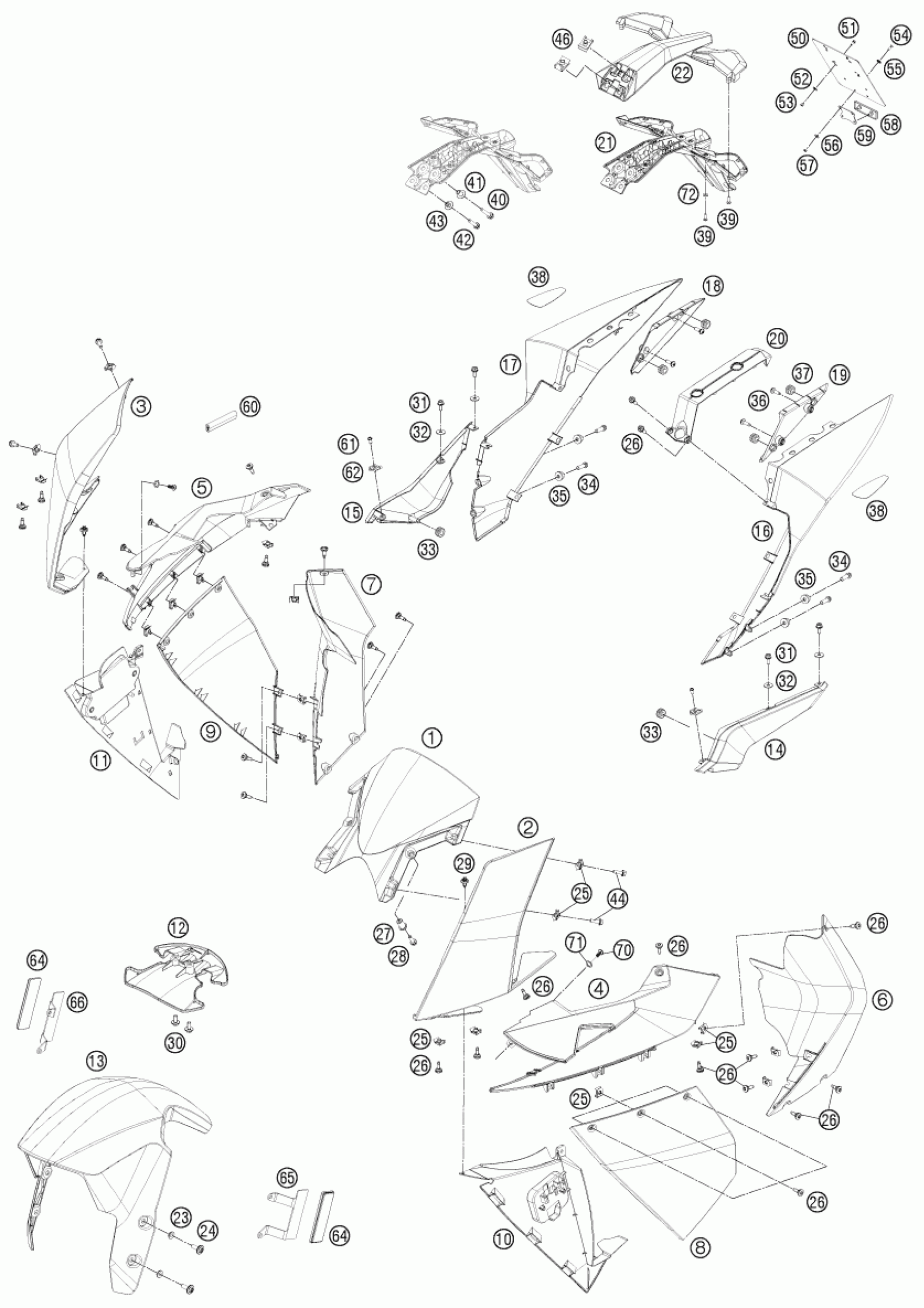

KTM 1190 RC8 R WHITE 2011 MASK, FENDERS Diagram

#

Description
Price

2

FR.FAIR.UP.PART L/S WH.GL.RC8

6900800110028A

$346.23

3

FR.FAIR.UP.PART R/S WH.GL.RC8

6900800210028A

$321.05

4

FR.FAIRING LO.PART L/S WH.BRIL

6900800300028A

$301.61

5

FR.FAIRING LO.PARTR/S WH. BR

6900800400028A

$301.61

6

EXHAUST SHAFT L/S ORA.BRILL.

6900805200004A

$327.15

7

EXHAUST SHAFT R/S ORA.BRILL.

6900805300004A

$297.32

8

COOLER FAIRING L/S WH. BRILL.

6900805000028A

$397.40

9

COOLER FAIRING R/S BLACK BRILL

6900805100028A

$397.40

10

FRESH-AIR SHAFT L/S BL. MA. 10

6900802210033

$58.06

11

FRESH-AIR SHAFT R/S BLACK MATT

6900802310033

$49.05

12

UP. FRESH-AIR SHAFT BLACK MA.

6900802120033

$8.59

13

FRONTFENDER BLACK

6930811000033

$409.62

14

SIDE COVER L/S WH. BRILL. RC8

6900804300028A

$106.57

15

SIDE COVER R/S WH. BRILL. RC8

6900804400028A

$106.57

16

REAR FAIRING L/S WH. BRILL.

6900804100028A

$363.93

17

REAR FAIRING R/S WH. BRILL.

6900804200028A

$363.93

18

REAR LIGHT ADAPTER R/S

69008039000

$7.47

19

REAR LIGHT ADAPTER L/S

69008038000

$7.47

20

UPPER REAR END PANEL

6900803100033

$15.98

21

LIC. PLATE BRACKET LO. PART EU

69008018100

Unavailable

22

LIC. PLATE BRACKET UP. PART EU

69008017100

Unavailable

23

Chain slider bushing

69004060050

$4.11

24

SPECIAL SCREW M6X18 ISA30 08

69014017000

$4.11

25

clip nut M5

69008021080

Unavailable

26

special screw M5x17

69008021060

Unavailable

27

blind plug nut M5 WN16A

60008008050

$3.73

28

HH collar screw M5x16 TX30

0025050166

$2.05

29

Spread rivet cmpl. 6.2mm

76503075000

$3.08

30

HH collar screw M6x13 TX30

0024060136

$3.08

31

SCREW TORX M5X10 05

58605083010

$2.05

32

Washer tail section UT D=14mm

75008023000

$3.08

33

rubber grommet D=8mm open

31008060000

$2.05

34

HH collar screw M8x25

0025080256

$2.05

35

WASHER F. MONT.REARPART 11

6930300405001

$7.10

36

EJOT PT SCREW K50X16 1451

0081050161

$1.49

37

RUBBER SLEEVE 10X14X20 08

69014078000

$2.05

38

PASSENGER´S SEAT PLATE KIT

69007047050

$15.79

39

SCREW FOR PLASTIC K40X16 T20

0081040161

$1.49

40

HH collar screw M6x25 TX30

0025060256

$3.08

41

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

$5.23

42

HH collar screw M6x20 TX30

0025060206

$3.08

43

BUSHING LICENSE PLATE BRACKET

69008020000

$4.11

44

HH collar screw M5x20 TX30

0025050206

$2.05

46

clip nut M6

54603048100

$4.11

50

NUMBER PLATE CARRIER AUS

60012181300

Unavailable

51

HH collar screw M6x15 TX30

0024060156

$3.08

52

Washer DIN9021-A 6.4

0021060003

$2.05

53

Self lock. nut DIN985-M6-A2

0985060003

$2.05

54

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

55

WASHER 6MM

40006006000

$1.49

56

WASHER DIN0125-A 5,3

0125050003

$1.49

57

Self locking nut DIN 985 M5

0985050003

$2.05

58

REFLECTOR RED

58412080000

$5.23

59

BRACKET FOR REFLECTOR

58412080050

$6.07

60

EDGE PROTECTOR 14X9,5X66 MM 06

60114010070

$3.08

61

SPECIAL SCREW M5X10 ISA15

69003003055

$5.98

62

CLIPS SIDECOVER

69003003050

$5.79

70

EJOT PT SCREW K60X12 1451

0081060121

$2.05

1

FAIRING SCREEN HIGH

69108008000

$54.13

71

WASHER PA 8,3X12X5

69008003050

$3.08

72

WASHER DIN9021-A 4,3

0021040003

$1.49

64

SIDE REFLECTOR YELLOW 03

60012080000

$6.44

65

BRACKET F. SIDE REFLECTOR L/S

69012080050

$12.43

66

BRACKET F. SIDE REFLECTOR R/S

69012080060

$12.43
