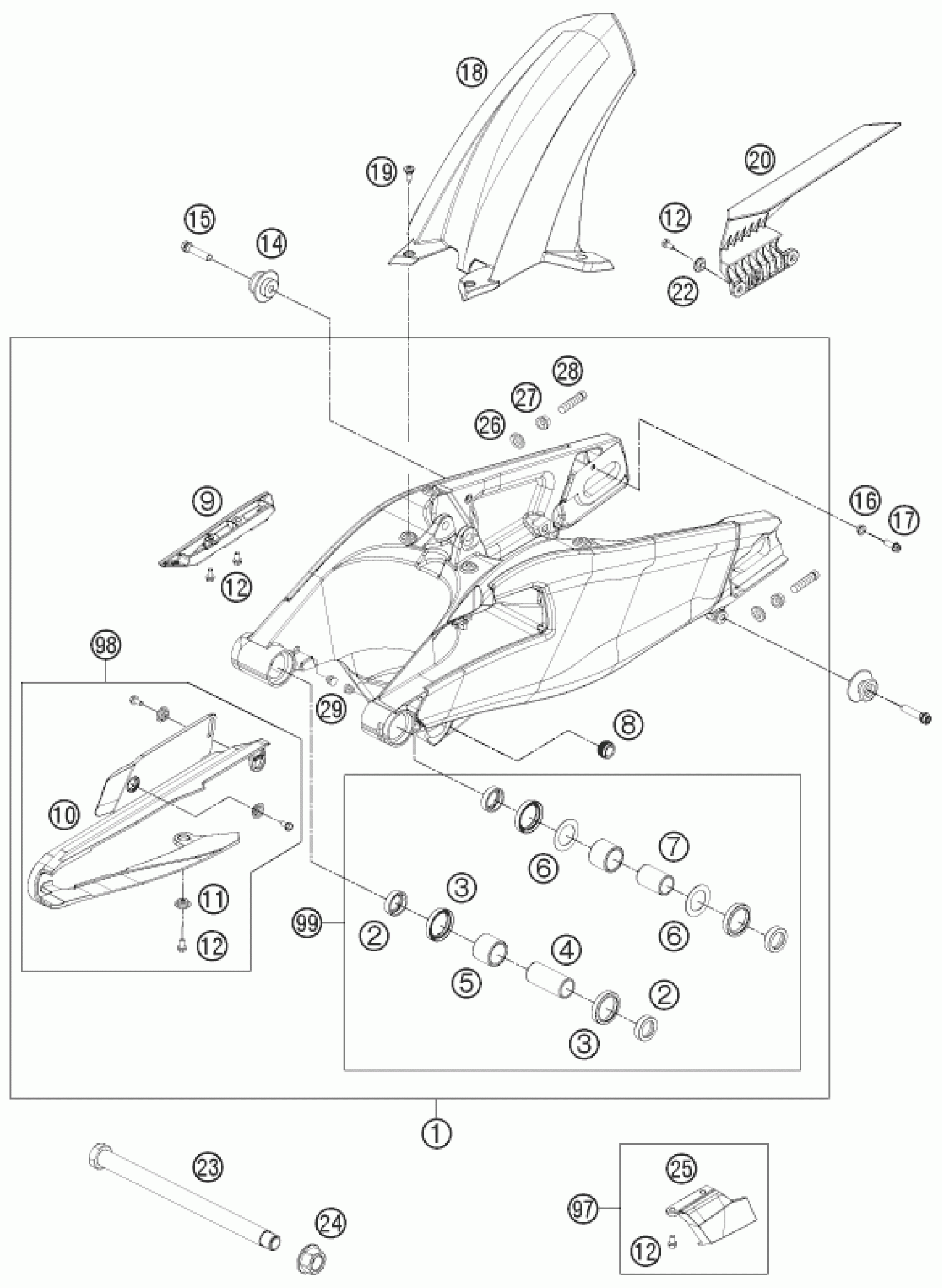

KTM 1190 RC8 R BLACK 2011 SWING ARM Diagram

Stop disk 03

60004033000

$2.05

INNER RING JR20X25X38,5 03

60004032000

$18.13

ADAPTOR NUT M10

69004095000

$5.23

BRAKE HOSE GUIDE

69013010000

$5.05

CHAIN SLIDING GUARD

69004066200

$40.57

BUSH FOR CHAINSLIDER GUARD 02

46104066050

$8.31

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

SUPPORT F. LIFITNG GEAR

69004040000

$15.33

SPECIAL SCREW M8X35 ISA45

69004030010

$9.06

BUSHING F. BRAKE-CAL. BRACKET

69004072000

$6.82

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

SPLASH PROTECTION

69004050000

$16.92

special screw M5x17

69008021060

$3.08

UPPER CHAIN GUARD RC8

6900406010033

$7.84

Chain slider bushing

69004060050

$4.11

SWING ARM BOLT

69004037144

$73.76

COLLAR NUT M19X1,5 WS=27MM

60004038000

$17.94

LOWER CHAIN GUIDE

6900406100033

$4.35

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

screw M10x1.25x50 WS10

50304040100

$5.23

PLUG SFL12 GREY 05

60004042000

$1.49

CHAIN GUIDE KIT REAR RC8

6900406101033

$6.96

CHAIN GUARD KIT 10-13

69004066210

$61.23

swingarm rep. kit

69004230010

$96.30

SWING ARM CPL. RC8 BLACK 2010

6900403024433

$1,769.39

Bucket f. shaft seal ring 03

60004034000

$8.03

Radial shaft seal 30X40X7

0760304073

$4.11

Inner ring JR 20X25X56.5

69004032000

$36.08

NEEDLE BUSH HK2526B 03

60004031000

$10.65

WASHER F. CHAIN ADJUSTER

69304030040

$4.11
