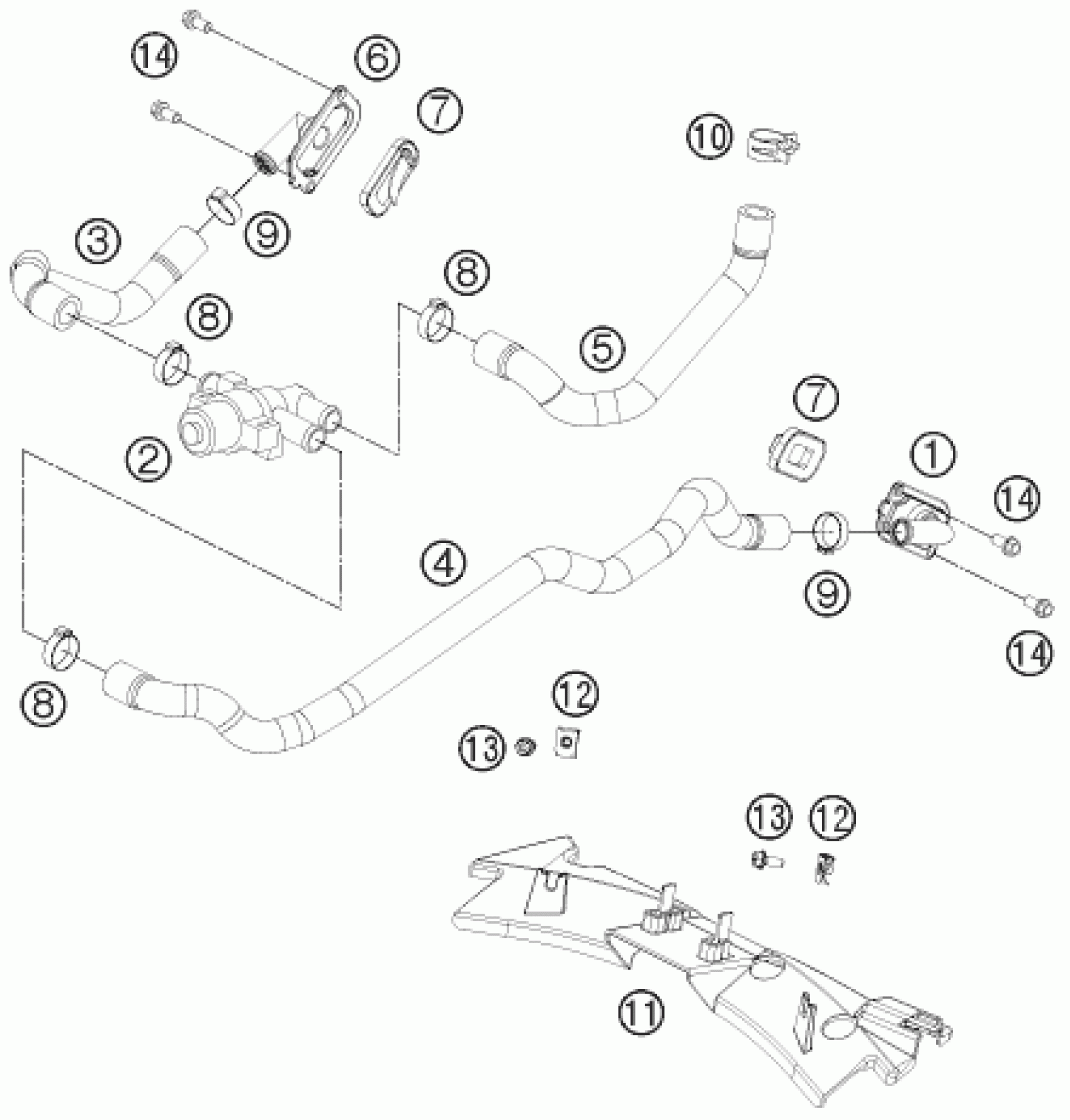

KTM 1190 RC8 R BLACK 2011 SECONDARY AIR SYSTEM SAS Diagram

#

Description
Price

1

SAS-FLANGE

61205032000

$18.97

2

CONTROL VALVE SAS 05

61005026000

$132.76

3

SAS HOSE-CYLINDER FRONT

69005035021

$19.42

4

SAS HOSE-CYLINDER REAR

69005035022

$42.25

5

SAS HOSE-AIR FILTER BOX

69005035023

$17.48

6

SAS flange

61205022000

$17.48

7

SAS Reed Valve

60005026000

$21.50

8

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

$3.08

9

VARIABLE ONE-EAR CLAMP 21,0MM

00050210706

$2.05

10

CLAMP STD DN20

00049200121

$1.49

11

SAS-SUPPORT RC8 08

69005028100

$15.33

12

clip nut M5

69008021080

$3.08

13

HH collar screw M5x12 TX30

0025050126

$3.08

14

HH collar screw M6x12 TX30

0025060126

$3.08
