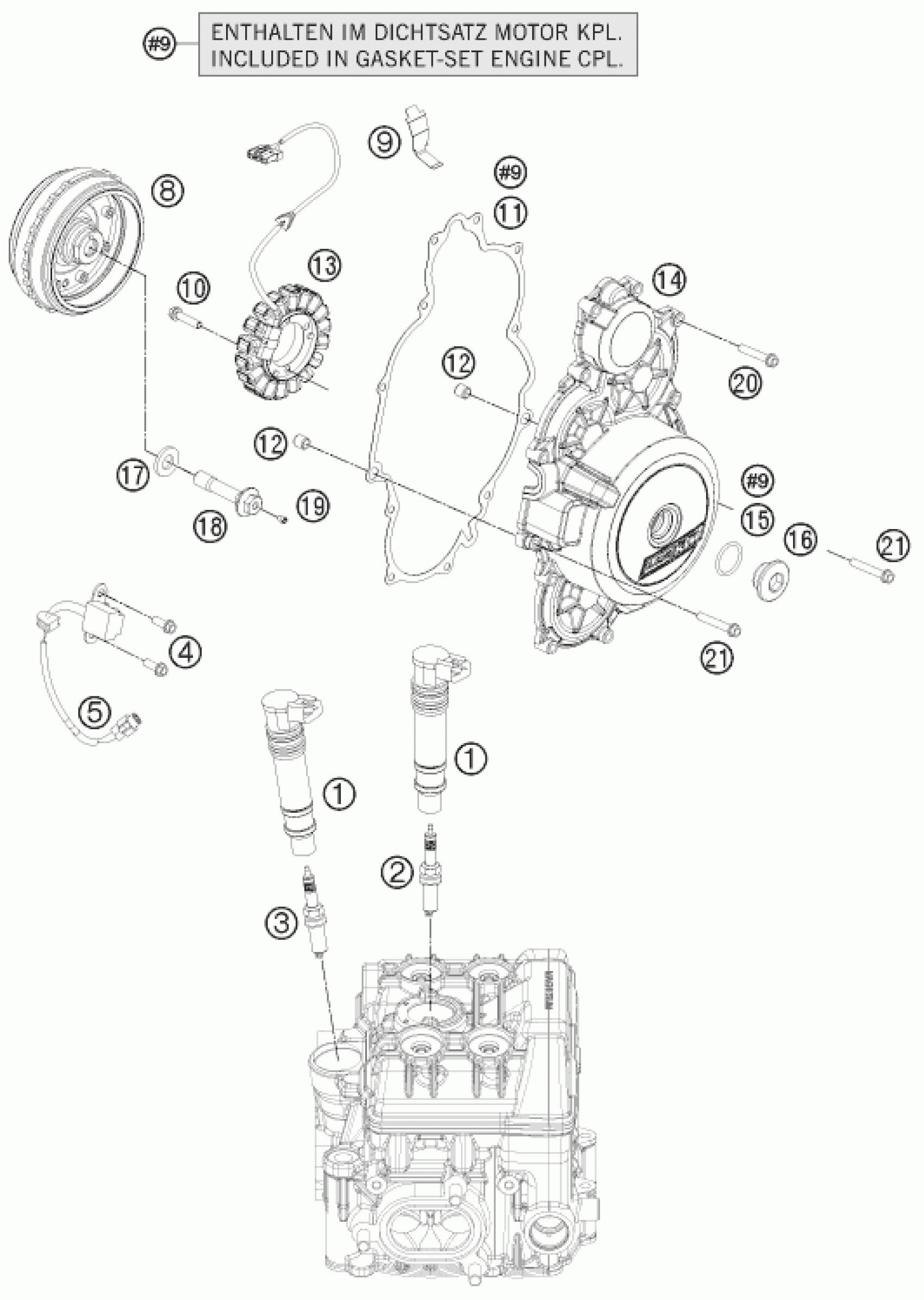

KTM 1190 RC8 R BLACK 2011 IGNITION SYSTEM Diagram

#

Description
Price

10

HH collar screw M6x25 TX30

0025060256

Unavailable

9

generator line bracket

60039040020

Unavailable

11

IGNITION COVER GASKET 08

61230040000

Unavailable

12

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

13

STATOR

60239104000

Unavailable

14

IGNITION COVER WITH BEARING

6023010204441

Unavailable

15

o-ring 24.00x2.50 Viton

07700240251

Unavailable

16

threaded plug M24x1.5 PA 6.6

6003009400030

Unavailable

17

WASHER 12,5/25/3

61239003050

Unavailable

18

SCREW M12X1,5

61239003000

Unavailable

19

OIL JET ''60'' M4

80030058060

Unavailable

20

HH collar screw M6x30 TX30

0025060306

Unavailable

21

HH collar screw M6x35 TX30

0025060356

Unavailable

2

SPARK PLUG M12X1,25 08

61239093200

Unavailable

3

SPARK PLUG NGK ''LMAR7A-9''

69139093000

Unavailable

4

HH collar screw M5x16 TX30

0025050166

Unavailable

5

pulse generator KOKUSAN 4K3-A/

59039034000

Unavailable

8

ROTOR

60239105000

Unavailable

1

STICK COIL 03

60039006000

Unavailable
