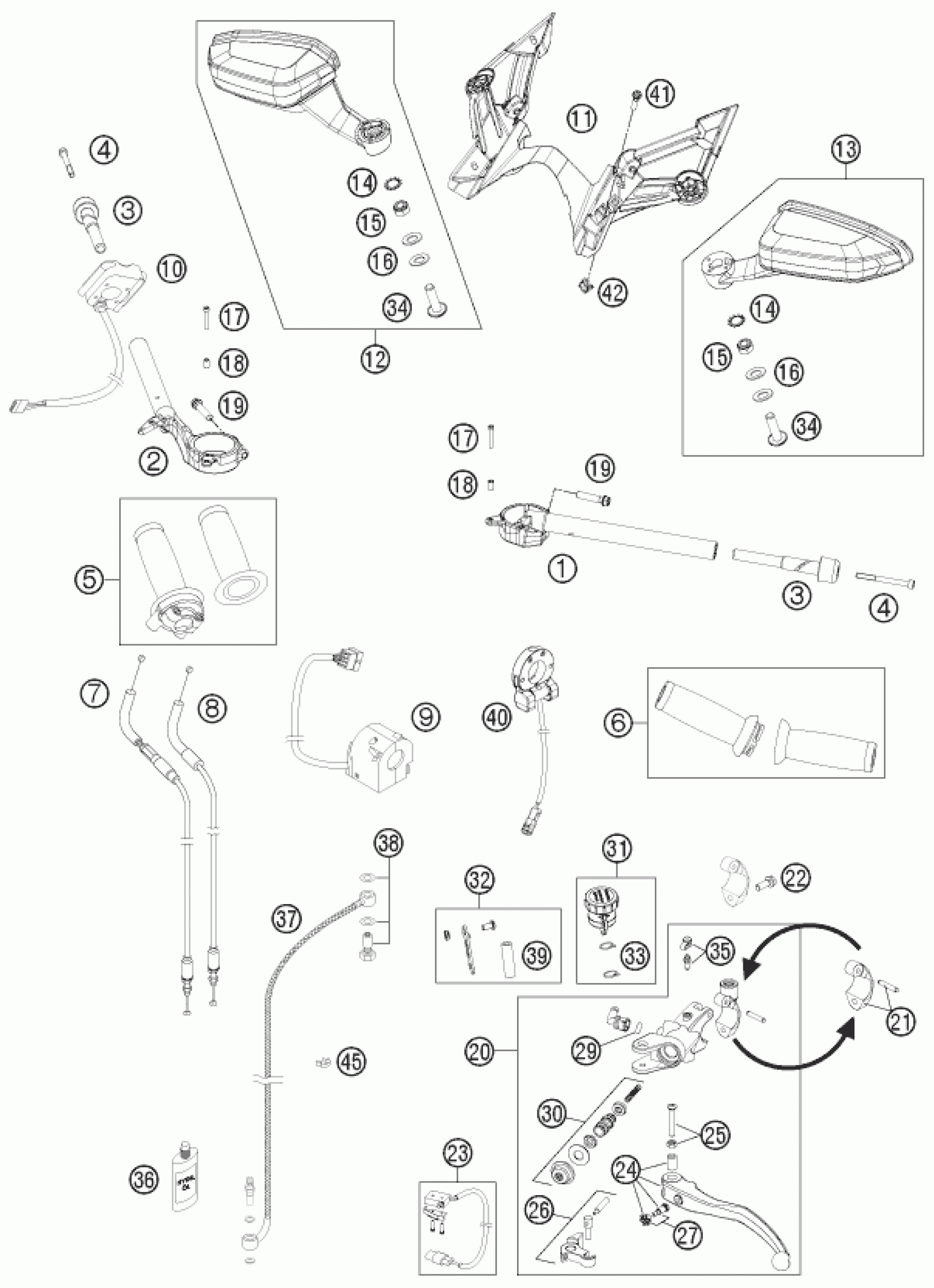

KTM 1190 RC8 R BLACK 2011 HANDLEBAR, CONTROLS Diagram

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

CLUTCH PIPE 05

61032063000

$88.35

HOLLOW SCREW + COPPER GASKET

59032062000

$25.05

HOSE FOR RESERVOIR

69002055010

$9.93

CONTROLLER F. INSTRUMENTS

69011071000

$90.28

HH collar screw M6x35 TX30

0025060356

$3.08

CAGE NUT M6 SL 4MM 03

60003095000

$3.08

WIRING HOLDER 16MM

57013072100

$1.49

CLIP ON L/S 09

6900210100033S

$248.14

CLIP ON R/S 09

6900220100033S

$248.14

VIBRATION DAMPER

69002004100

$51.04

SHCS DIN 912 M6x65

0912060653

$2.05

THROTTLE GRIP CPL.

69002010200

$80.12

GRIP-SET OPEN END PROGRESSIVE

69002021100

Unavailable

THROTTLE CABLE OPEN

69002091000

$54.32

THROTTLE CABLE CLOSE

69002092100

$51.12

LIGHT SWITCH 05

61011070000

$107.89

START-STOP SWITCH AD LC4 02

58411074100

$76.47

Mirror Breacket cpl.

6901204200033

$82.36

MIRROR R/S CPL. W. FLASHER

69012041100

$328.36

MIRROR L/S CPL. W. FLASHER

69012040100

$319.57

DISK SPRING 12,5X6,2X0,35

69012040030

$2.05

ALUMINUM WASHER

69012040040

$5.70

WASHER 20X8,2X2

69012040020

$4.11

CYL. SCREW DIN14579 M5X35

014579050356

$3.08

DISTANCE BUSHING TRIPLE CLAMP

69002003000

$7.00

HH collar screw M8x35 TX40

0025080356

$4.11

MASTER CYLINDER CPL. 2010

61002030100

$434.77

CLAMP WITH PIN

61002044100

$14.10

HH collar screw M6x16 TX30

0025060166

$3.08

CLUTCH SWITCH 05

61011049000

$76.76

CLUTCH LEVER CPL.

61002031100

$83.58

LEVER SCREW SHORT CPL. 09

50302038200

$22.90

ROCKER CPL. 05

61002056000

$43.94

ADJUSTING SCREW CPL.

61002043000

$19.72

O-RING ANGLE PIECE

61002051000

$2.05

REP.SET PISTON D=13 05

61002032000

$79.93

RESERVOIR CPL. 05

61002055000

$67.31

BRACKET F. CLUTCH RES. CPL.RC8

69032070044

$43.38

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

OVAL HEAD SCREW M8x30

69012040010

$4.11

BLEEDER SCREW WITH CAP

61002054000

$23.55
