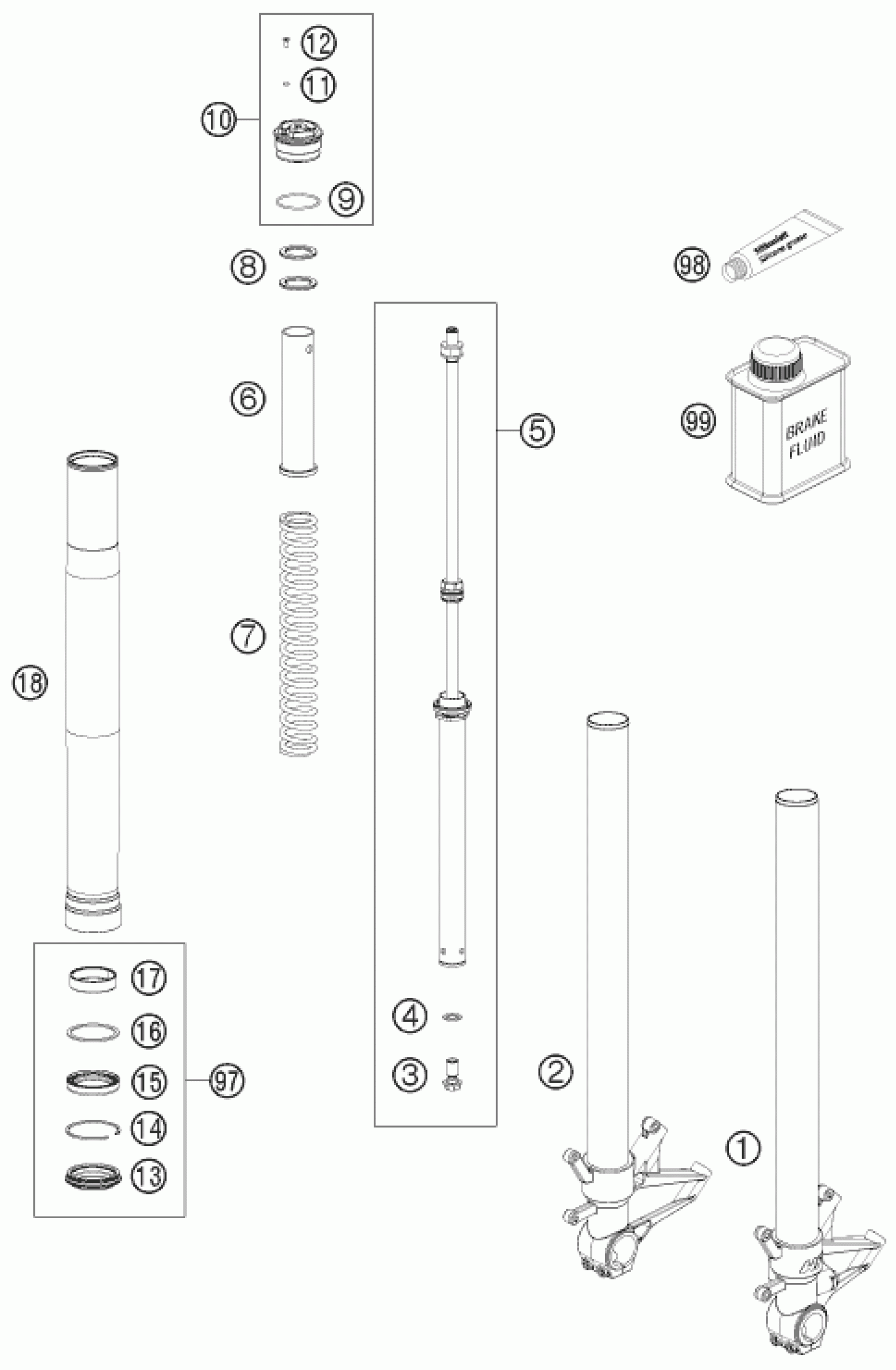

KTM 1190 RC8 R BLACK 2011 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axle clamp left cmpl. w. tube

43570523S1

Unavailable

2

Axle clamp right cmpl. w. tube

43570522S1

Unavailable

3

HH collar screw M12x1x23

48600176

Unavailable

4

SEALING RING COPPER 12X18X1,5

48600704

Unavailable

5

Cartridge cmpl. RC8 R

43570453S3

Unavailable

6

Alu spacer D32XD28X145 cmpl.

43570445S

Unavailable

7

Spring set D38 L250 9.5N/MM

95010034S

Unavailable

7

SPRING LINEAR SET D=5,0

95010035S

Unavailable

8

Preload bush 26,5x38x2,5

43570133

Unavailable

8

Preload bush 26x35x4

43570134

Unavailable

8

Preload bush 26x38x10

43570135

Unavailable

8

Preload bush 26,5x38x1,5

43570136

Unavailable

9

O-ring 41x2 NBR70 siliconized

43570023

Unavailable

10

SCREW CAP M46X1 PA CPL.

43570447SA

Unavailable

11

O-ring 3x1,5 NBR70

48600046

Unavailable

12

Cross countersunk head screw M

48600481

Unavailable

13

Dirt scarper SKF 43mm black

43570624

Unavailable

14

Snap ring SB53x1,5 acc drawing

43570008

Unavailable

15

Shaft seal SKF 43x52,9x11,4 bl

43570623

Unavailable

16

Supportwasher 45x52,5x1,5

43570092

Unavailable

17

Guide bushing 43x47x12

43570618

Unavailable

18

OUTER TUBE 51/54L500 2LCPL.

43570454S

Unavailable

98

SILICONE GREASE F. DUST STRI

T511

Unavailable

99

FORK OIL SAE5 5L 2008

48600765S1

Unavailable

97

Rep. kit gasket rings RC8R

R140170

Unavailable
