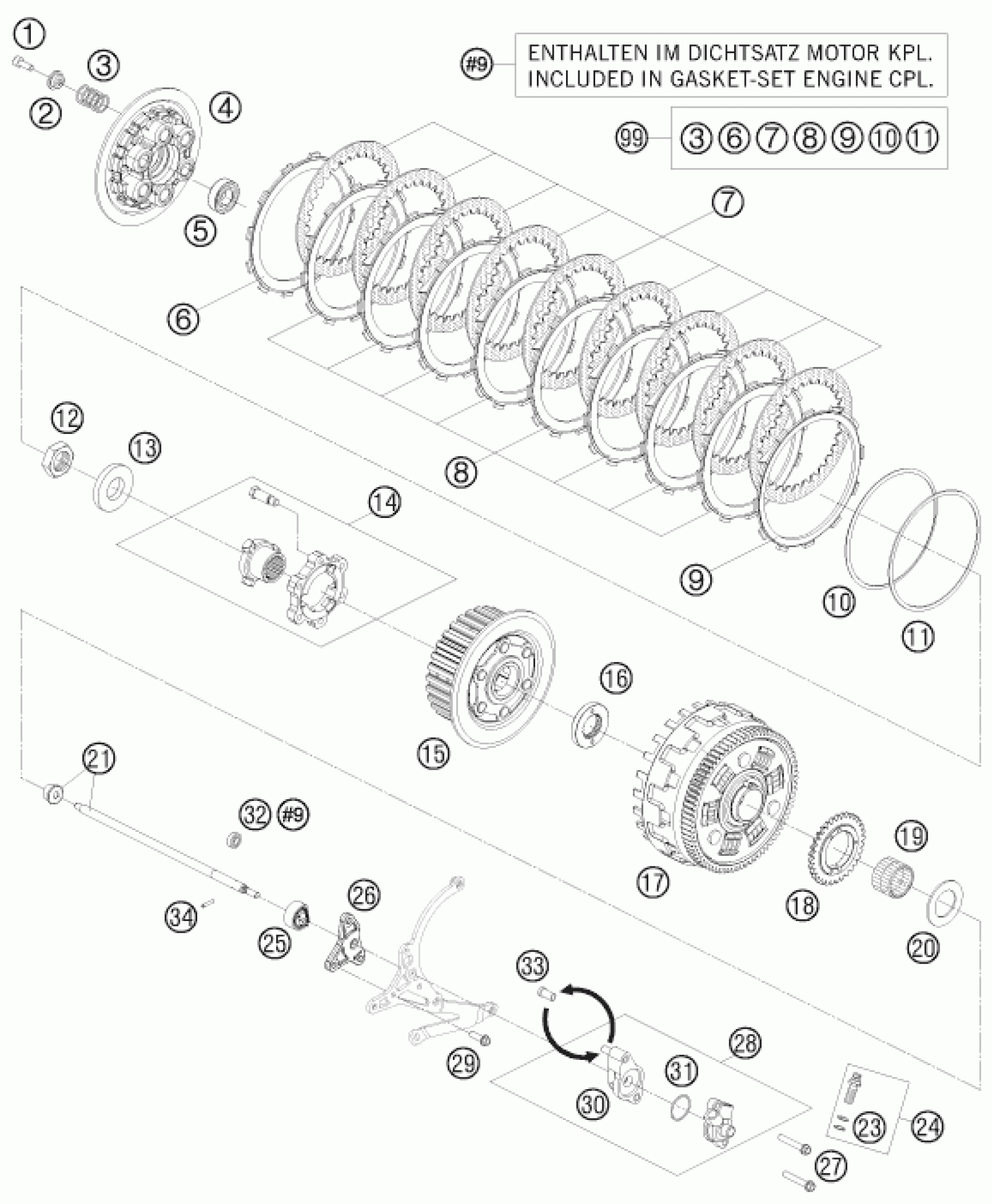

KTM 1190 RC8-R 2010 CLUTCH Diagram

#

Description
Price

1

AH SCREW DIN7984-M 6X16

0984060162

$1.49

2

SPRING RETAINER STEPPED

61232006000

$6.35

3

CLUTCH SPRING D2,7/35MM PINK

69132005000

$13.64

4

PRESSURE CAP

61232003000

$106.68

5

BALL BEARING 6003 JR2 C4

0625060032

$15.98

6

LINING DISK OUTSIDE 3MM

61232111000

$27.11

7

INTERMEDIATE DISK

69132010000

$15.51

8

LINING DISK 3MM

61232011000

$28.14

9

LINING DISK INSIDE 3,8MM

61232012000

$23.48

10

BELLEVILLE SPRING

61232034000

$26.17

11

BEARING RING

61232035000

$11.40

12

HEXAGON NUT DIN0936-M22X1,5 R.

0936220155

$2.05

13

PULLEY 22X39X3MM

0125220393

$1.49

14

CLUTCH BOOSTER UNIT CPL. 03

60032080000

$337.34

15

CLUTCH TAPPET CPL.

61232002000

$165.16

16

SECTION WASHER 03

60032021000

$33.93

17

CLUTCH CAGE CPL.

69132001044

$952.25

18

oil pump gear 32 teeth

60038001132

$27.85

19

Needle bushing HK 30X35X26

0618303526

$60.11

20

STOP DISK 30,2/50/2

60032020000

$7.85

21

PUSH ROD CPL. 2-PARTS 08

61232054000

$26.83

23

sealing ring DIN 7603 10x14x1

0603100141

$2.05

24

Hollow screw cmpl. M 10x1 98

50332062000

$34.96

25

PUSH ROD GUIDE

61232069000

$6.44

26

DISTANCE PLATE 7MM

61232068100

$11.02

27

HH collar screw M6x50 TX30

0025060506

$3.08

28

SLAVE CYLINDER CPL. LC8 08

60032061244

$220.74

29

HH collar screw M6x25 TX30

0025060256

$3.08

30

DISTANCE CLUTCH CONTR. CPL.

60032061050

$57.68

31

O-RING GASKET 03

60032065000

$12.61

32

SHAFT SEAL RING 9X18X06 B-NBR

0760091862

$5.23

33

SLEEVE CLUTCH CONTR.

61232061051

$15.33

34

Needle roll.DIN5402 NRB 3X17.8

0402031780

$1.49

99

CLUTCH KIT RC8-R 09-12

69132011010

Unavailable
